CLY2260BDB12 03 – MANIFOLD PARTS – Aparts

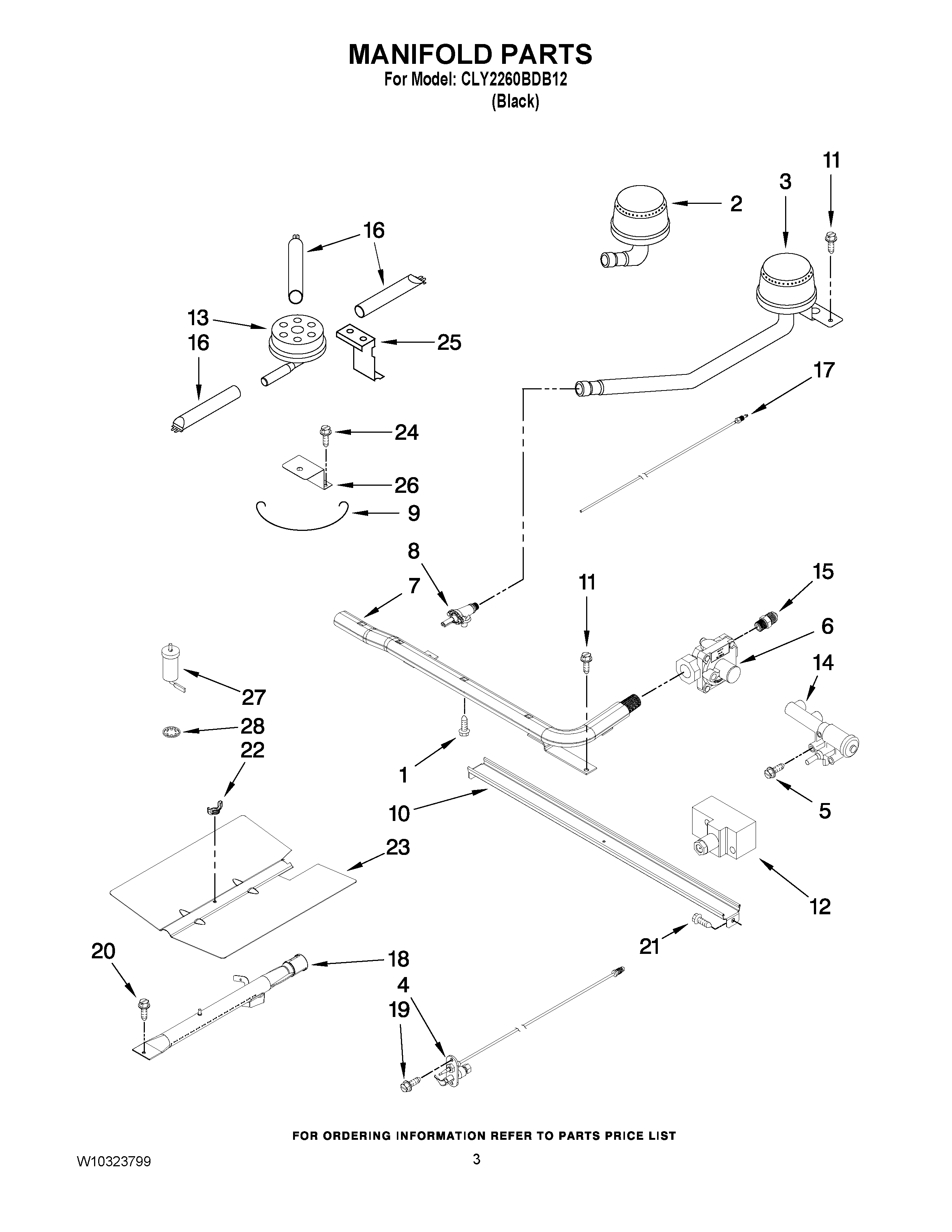

CLY2260BDB12 03 – MANIFOLD PARTS

Products

Position	Product
1	SCREW
2	MAY 7505P263-60
3	MAY 7505P265-60
3	MAY 7505P264-60
4	MAY 7505P327-60
5	WPY706189 Whirlpool Stove Screw
6	MAY 7510P098-60
7	MAY 7513P467-60
8	MAY 7502P524-60
8	MAY 7502P523-60
9	MAY 7112P068-60
10	MAY 3807F747-45
11	MAY 7101P376-60
12	MAY 7527P115-60
13	MAY 7506P154-60
14	MAY 7432P085-60
15	MAY 7507P388-60
16	MAY 7506P153-60
16	MAY 7506P152-60
17	MAY 7506P414-60
17	MAY 7506P412-60
18	MAY 7505P360-60
19	MAY 7101P188-60
20	SCREW (8BX3/8-NI)
21	MAY 7101P498-60
22	NUT, WING
23	MAY 3601P360-45
24	MAY 7101P356-60
25	MAY 3604F211-45
26	MAY 3807F462-45
27	MAY 7432P077-60
28	MAY 7104P002-60
