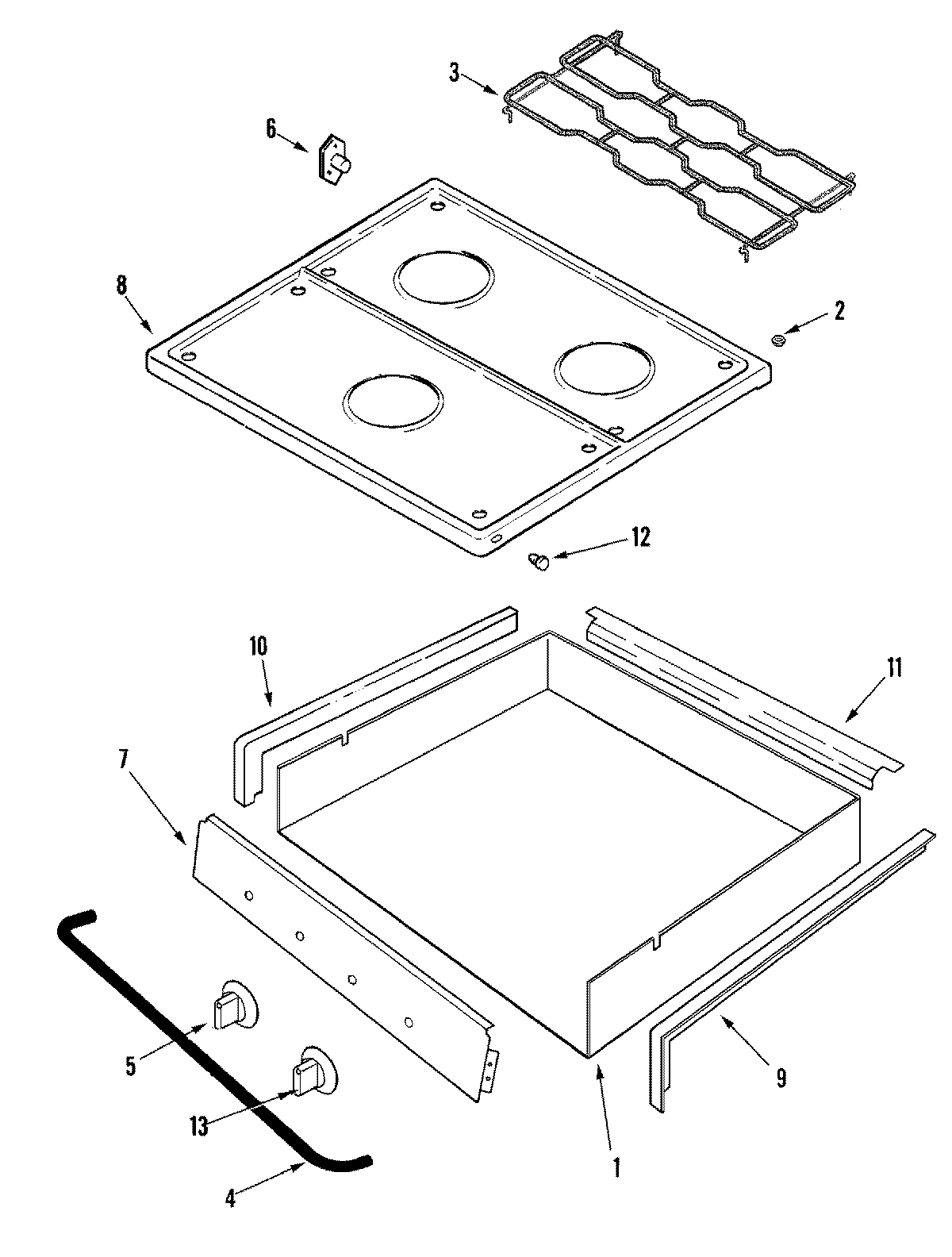

CLZ8560ADB 02 – TOP & BURNER BOX

CLZ8560ADB 02 – TOP & BURNER BOX

Written by

in

CLZ8560ADB 02 – TOP & BURNER BOX

Products

Position	Product
NI	MAY 74007269
NI	MAY 8110P272-60
1	MAY 74005024
2	MAY Y8007P02060
2	MAY 8007P052-60
3	MAY 7518P418-60
4	MAY 3609F006-70
5	MAY 74003941
5	74003942 Whirlpool Oven Burner Knob
6	MAY 7103P109-60
6	MAY 7101P301-60
7	MAY 74007325
8	MAY 2001F302-09
8	MAY 74003323
9	MAY 74002839
10	MAY 74002840
10	SCREW (8ABX1/2“-BLK)
11	MAY 74002841
12	MAY 8003P008-60
13	74003944 Whirlpool Igniter Knob
