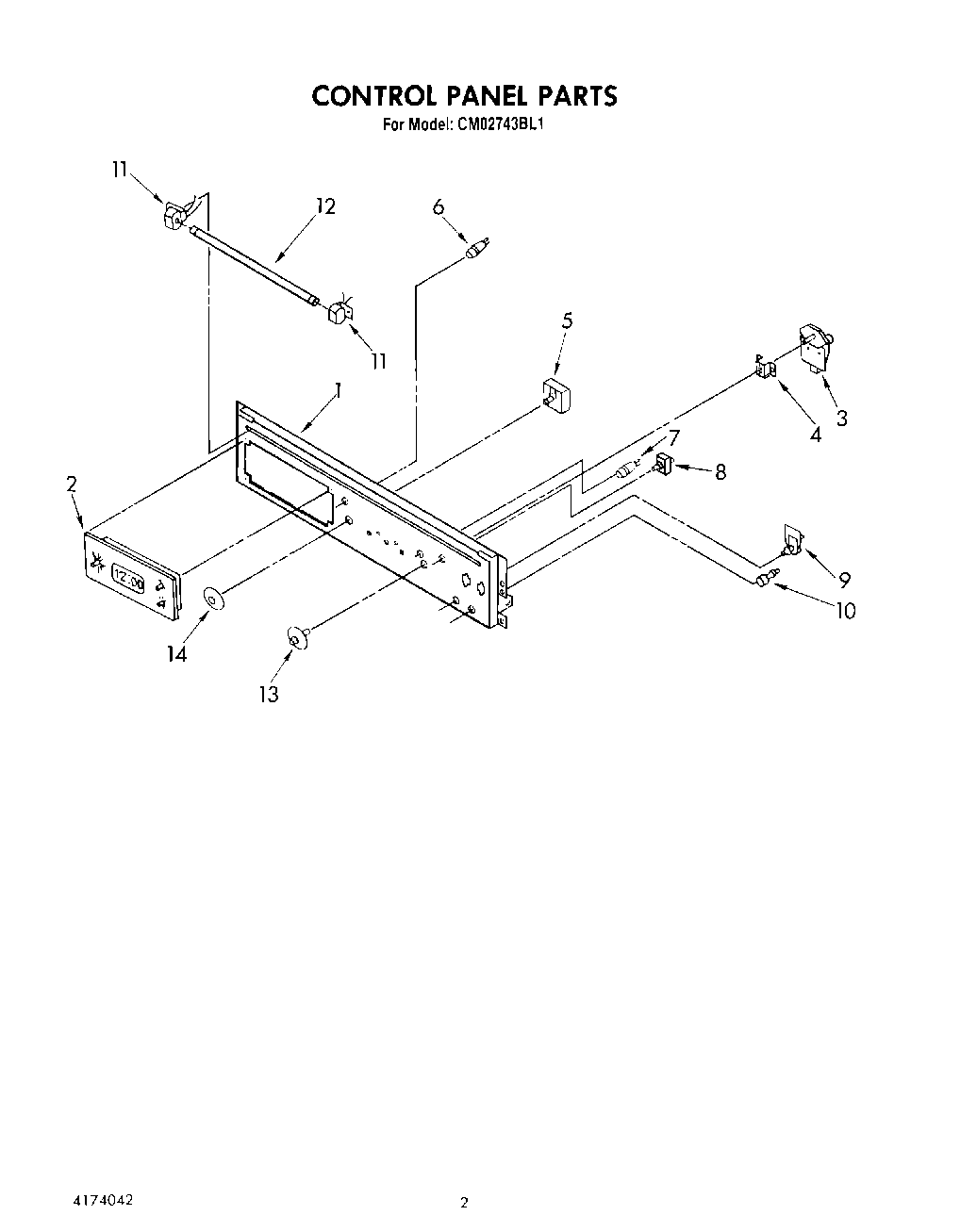

CM02743BL1 02 – CONTROL PANEL

Products

PositionProduct
1Control Mounting Panel
2Nut, No.10-24 Hex Kep
2Clock, Digital
3Thermostat (Self-Clean)
4Bracket Thermostat
5Screw (2)
5Switch, Selector
6Indicator Light, Oven (Lower Oven)
7Indicator Light,
8Switch, Heat
9Oven Light Switch
10Switch, Panel Light
11Screw (2)
11Holder, Lamp (2)
12Lamp, Fluorescent
13Thermostat Disc
14Selector Disc
