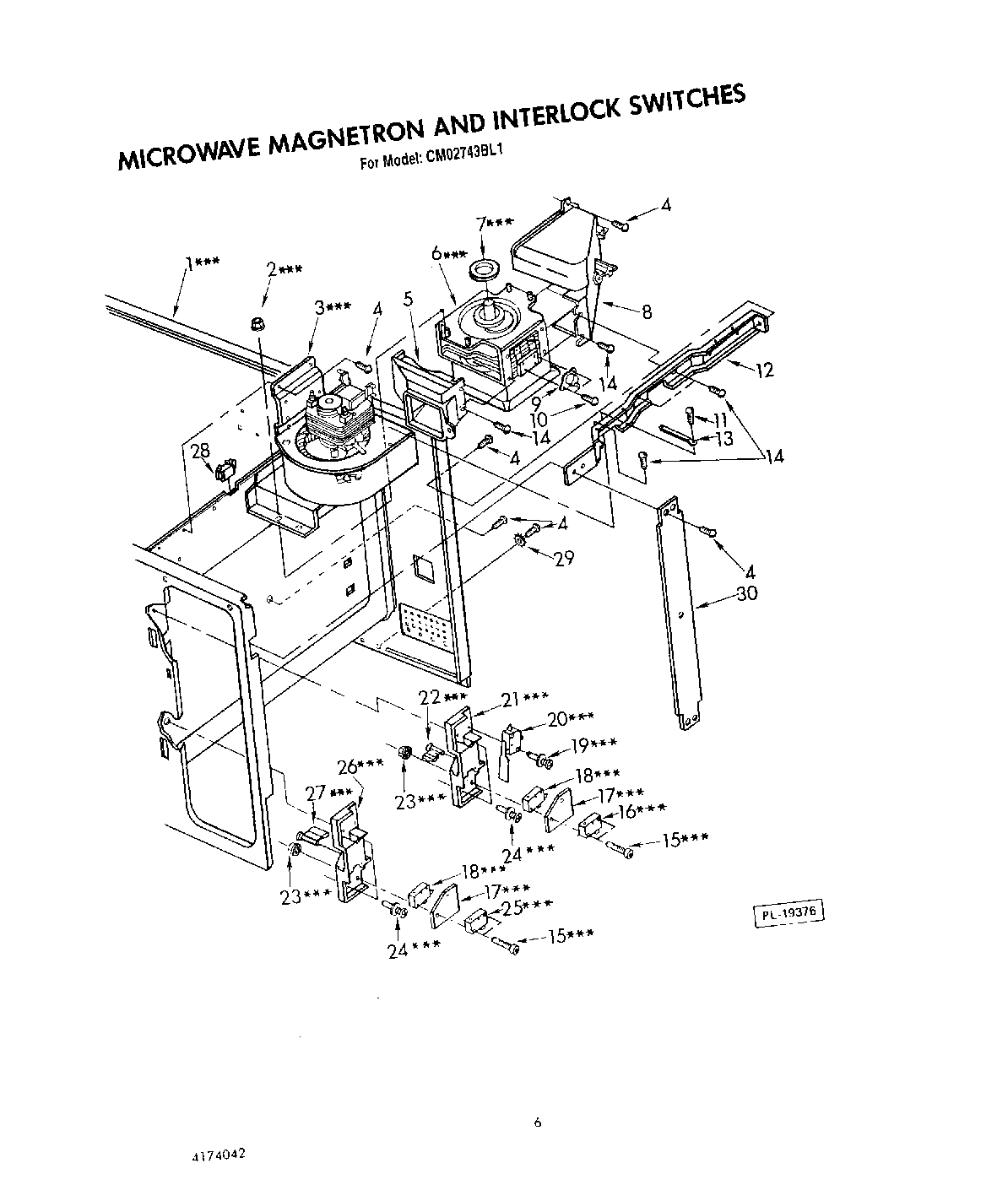

CM02743BL1 05 – MICROWAVE MAGNETRON AND INTERLOCK

Products

Position	Product
1	Oven Cavityxxx (Also Order Caution Label Illus. No. 3)
2	Hex Nut With Washer, 5mm, Z1xxx
3	Blower Assembly
4	Screw, Truss Hd. Tapping, 4 X 8mm, Z1-2
5	Duct, Intake
6	Magnetron, 2M-128 (B-RT) (Includes Illus. 7)
7	RF Gasket, Magnetron
8	Duct, Exhaust
9	Thermostat, Magnetron
10	Screw, Pan Hd. Tapping, 3 X 6mm, Z1-1
11	Screw, Truss Hd. Tapping, 4 X 14mm, Z1-1
12	Stay, Cavity And Magnetron
13	Wire Clip
14	Screw, Truss Hd. Tapping, 4 X 10mm, Z1-1
15	Screw, Pan Hd. Machine, 3x30mm Z1xxx
16	Micro Switch, Door Sensing xxx
17	Insulation Sheet, Micro Switch xxx
18	4392027 Whirlpool Microwave Primary Switch
19	Screw, Pan Hd. Tapping, 3 X16mm, Z1-1xxx
20	Micro Switch, Interlock Monitorxxx
21	Lever Stopperxxx
22	Latch Lever xxx
23	Hex Nut With Washer, 3mm, Z1-1
24	Screw, Pan Hd. Machine, 4 X 10mm Brass, N1
25	Micro Switch, Cavity Lightxxx
26	Lever Stopperxxx
27	Latch Lever
28	Insulator, Oven Cavity
29	Washer, External Tooth, 4mm
30	Stay
