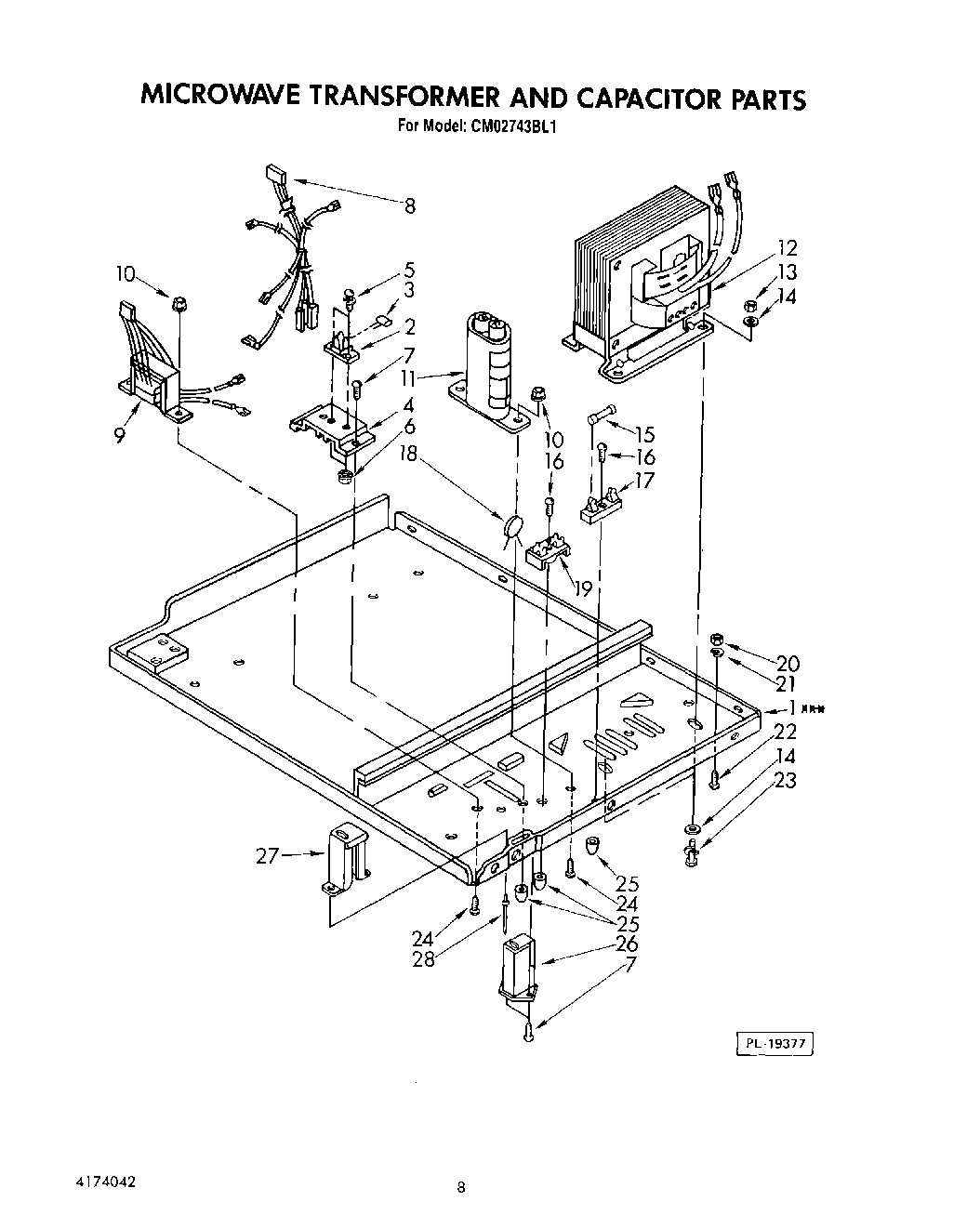

CM02743BL1 06 – MICROWAVE TRANSFORMER AND CAPACITOR

Written by

Products

Position	Product
1	Bottom Platexxx
2	Triac
3	Polyester Film Capacitor, 0.1 mfd +/- 20 Percent, 50V
4	Heat Sink
5	Screw With Spring Washer, Pan Hd. Machine, 3 X 8mm Z1
6	Hex Nut With Washer, 3mm, Z1-1
7	Screw, Truss Hd. Tapping, 4 X 8mm, Z1-2
8	Connector, Triac
9	Step-down Transformer, Control Circuit, P6T-3825
10	Hex Nut With Washer, 4mm, Z1-1
11	High Voltage Capacitor With Resistor And Rectifier, 0.85 MFD
12	High Voltage Transformer, 120 V Input, H6T-3825
13	Hex Nut, 6mm, Z1-1
14	Lock Washer Int, Tooth No.12
15	Fuse, 15A
16	Screw, Bind Hd. Tapping, 4 X 16mm, Z1-2
17	Fuse Holder
18	Varistor
19	Terminal Board
20	Hex Nut, 4mm, Brass, N1-1
21	Spring Washer, 4mm, Phosphated
22	Screw, Pan Hd. Machine, 4 X 10mm Brass, N1
23	Hex Hd. Bolt With Spring Washer, 6 X 14mm, Z1
24	Screw, Pan Hd. Diacut, 4 X 10mm Z1
25	Cap, Black Vinyl, Screw
26	Back-up Battery
27	Battery Holder
28	Rivet, 3mm, Z1
