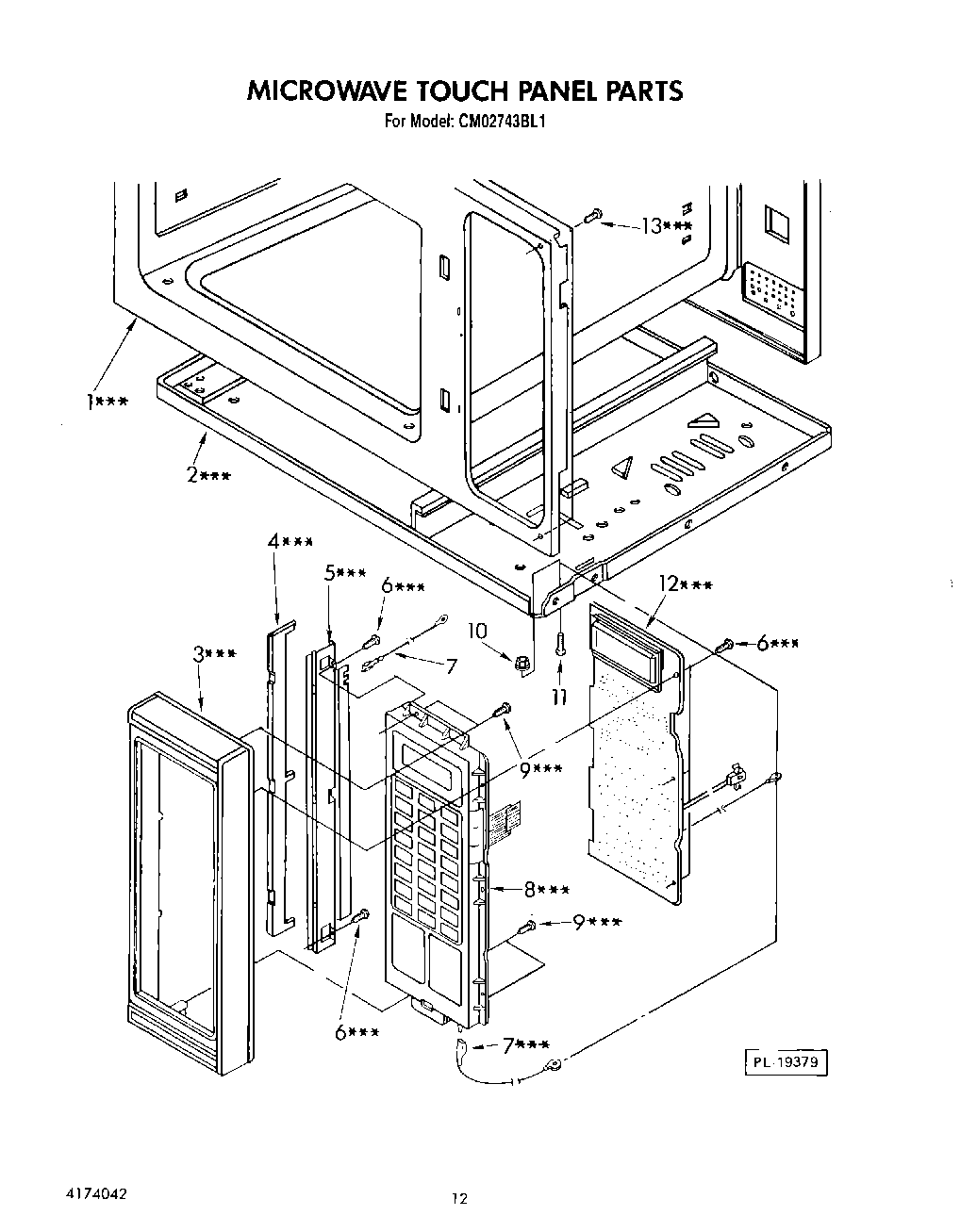

CM02743BL1 08 – MICROWAVE TOUCH PANEL

CM02743BL1 08 – MICROWAVE TOUCH PANEL

Written by

in

CM02743BL1 08 – MICROWAVE TOUCH PANEL

Products

PositionProduct
1Oven Cavityxxx (Also Order Caution Label Illus. No. 3)
2Bottom Platexxx
3Control Frame With Metal Piecexxx (3)
4Ferrite Rubberxxx Panel Back
5Metal Bracketxxx Panel Mounting (3)
6Screw, Pan Hd. Tapping 3 X 12 mm C2-1xxx
7Ground Leadxxx
8Touch Key Board (Incls. Harness) xxx
9Screw, Truss Hd. Tapping, 4 X 12 mm Z1-1xxx
10Hex Nut With Washer, 4mm, Z1-1
11Screw, Pan Hd. Diacut, 4 X 10mm Z1
12Circuit Board, Power And Control (Complete)
13Screw, Truss Hd. Tapping, 4 X 10mm, Z1-1
