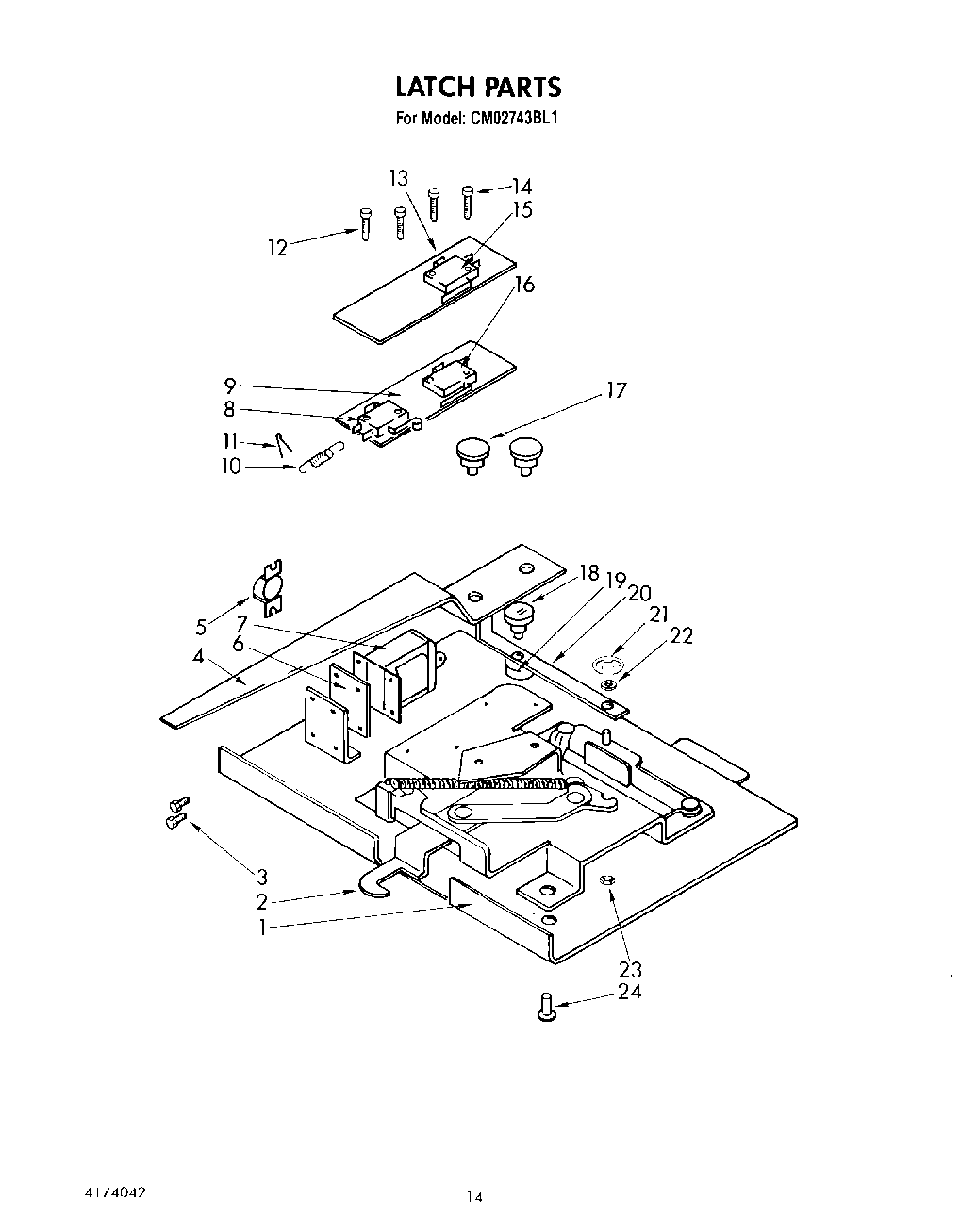

CM02743BL1 09 – LATCH

Products

Position	Product
1	Latch Mounting Plate
2	Mechanism, Latch
3	Screw, No.10-24 X 3/8“ Hex TCS
4	Latch Lever
5	Thermal Switch
6	Solenoid Spacer
7	Solenoid
8	Latch Switch With Roller
9	Insulator
10	Solenoid Spring
11	Cotter Pin
12	Screw, 4-40 X 5/8 Hex
13	Insulator
14	Screw, No.4-40 X 1 1/4“ Hex
15	Latch Switch (2)
16	Latch Switch, Normally Open
17	Shoulder Screw Latch Lever Upper Oven
18	Shoulder Screw, Actuator Arm
19	Spacer, Actuator Arm
20	Actuator Arm
21	Retaining Ring
22	Washer, Flat
23	Nut, No.10-24 Hex Kep
24	Wiring Harness
24	Wiring Harness
24	Screw, No.10-24 X 3/8“ PTHMS
24	Nut (2)
24	Wiring Harness, Latch
