CM02743BL1 10 – OVEN LINER

CM02743BL1 10 – OVEN LINER

Written by

in

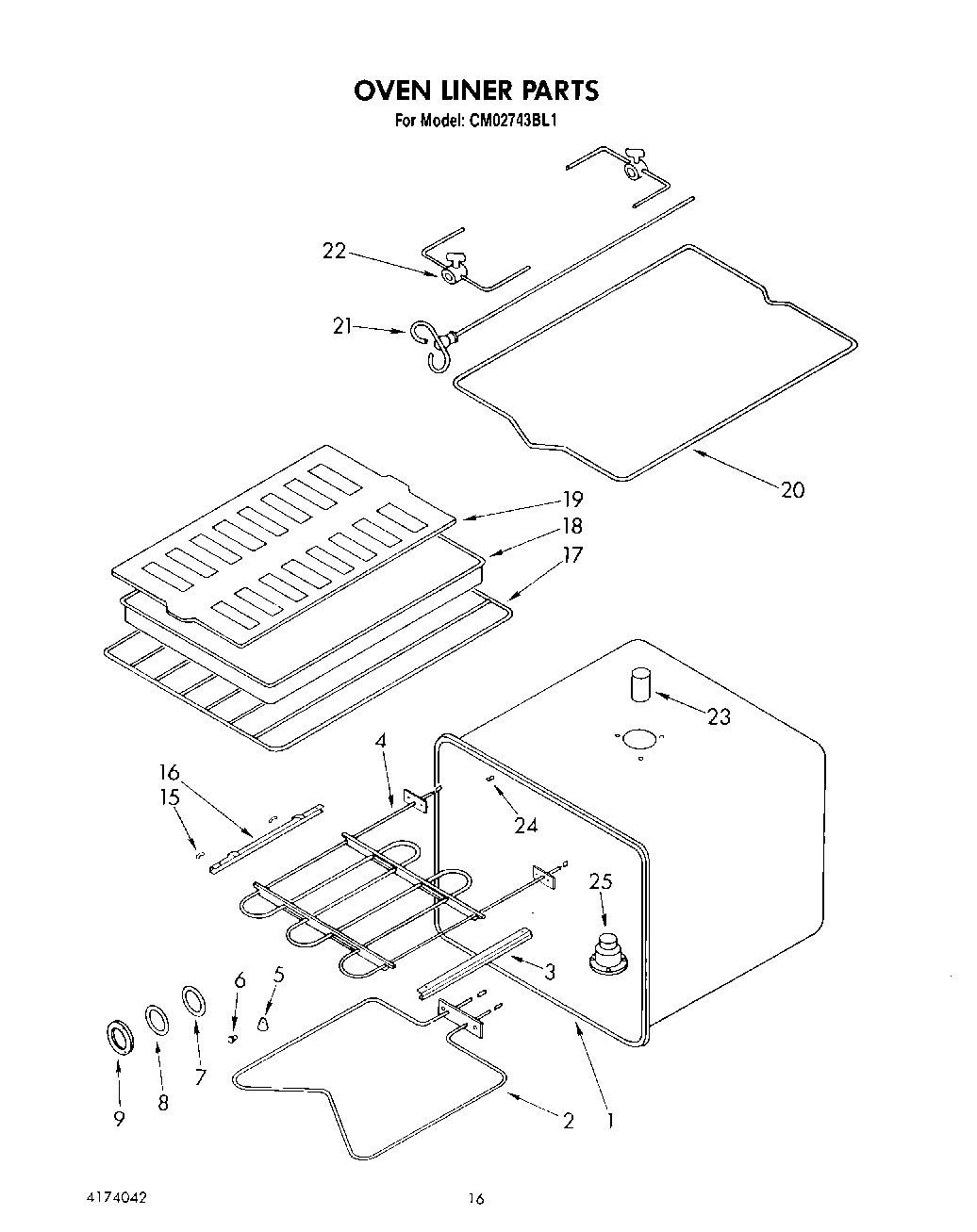

CM02743BL1 10 – OVEN LINER

Products

PositionProduct
1Liner, Oven
2WP3177420 Whirlpool Bake Element
3Broiler Element Support-Right
4Element, Broil
5Plate, Cover
6Shoulder Screw
7Light Lens Gasket
8Light Lens
9Light Lens Retainer
15Clip, Thermostat Bulb
16Broiler Element Support-Left
17Oven Rack
184396923 Whirlpool Broil Pan Set Gray Porcelain
20Rotisserie Rack
21Rotisserie Spear
22Rotisserie Skewer
23Vent Tube Extension
24Cover, Cap Tube
25Smoke Eliminator (Upper Oven)
25Meat Probe
25Gasket, Meat Probe
