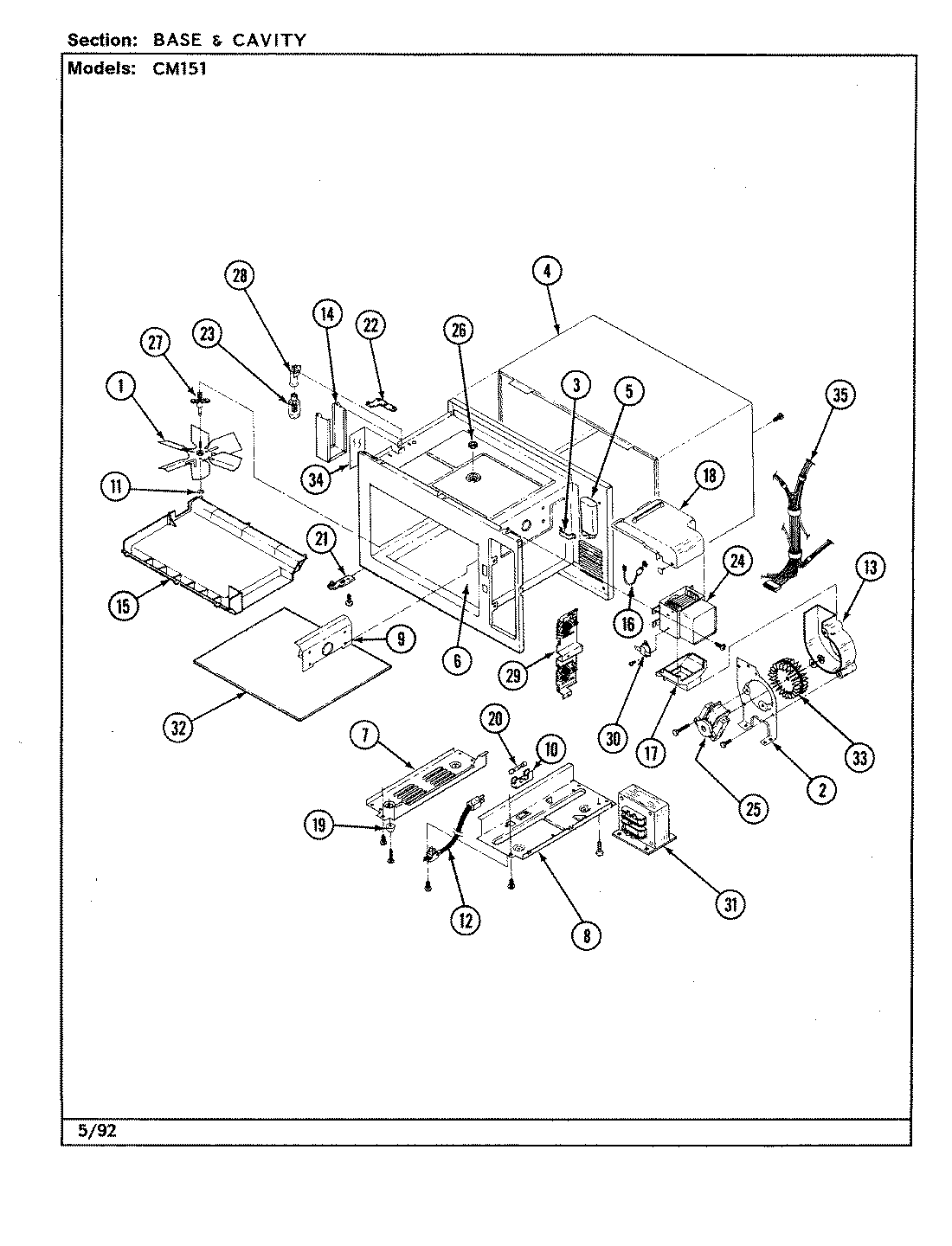

CM151 01 – BASE & CAVITY
Written by
in
CM151 01 – BASE & CAVITY
Products
Position
Product
NI
MAY Y06010331
1
MAY Y04021539
1
MAY 04021532
2
MAY Y02030136
3
MAY 02030123
4
MAY 02140072
5
MAY Y01020021
6
MAY 04021555
7
MAY 02090010
8
MAY 02090011
9
MAY 03110061
9
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10
MAY Y01100036
11
MAY 03110066
12
MAY 02300040
12
MAY 01080053
13
MAY Y02300032
14
MAY Y02300049
14
MAY 02300034
15
MAY Y02300029
16
MAY Y04010219
17
MAY 02170123
18
MAY 02170133
19
MAY Y02230008
20
MAY 02310157
20
MAY Y01050005
21
MAY 04021343
22
MAY 04021344
23
25T8DC Bulb
24
MAY 01040005
25
MAY Y01110040
26
MAY 03050007
26
MAY 02040094
27
MAY 02360058
28
MAY Y01100040
29
MAY Y01140078
29
MAY Y01140077
29
MAY 04021483
30
MAY Y01180008
30
MAY 8270P006-60
30
MAY 8270P005-60
30
MAY 8270P003-60
31
MAY Y01130040
32
MAY Y02280039
33
MAY Y01110017
34
MAY 02220084
35
MAY 04060539
35
MAY Y03020087
35
MAY Y04010266
35
MAY 04060538
←
