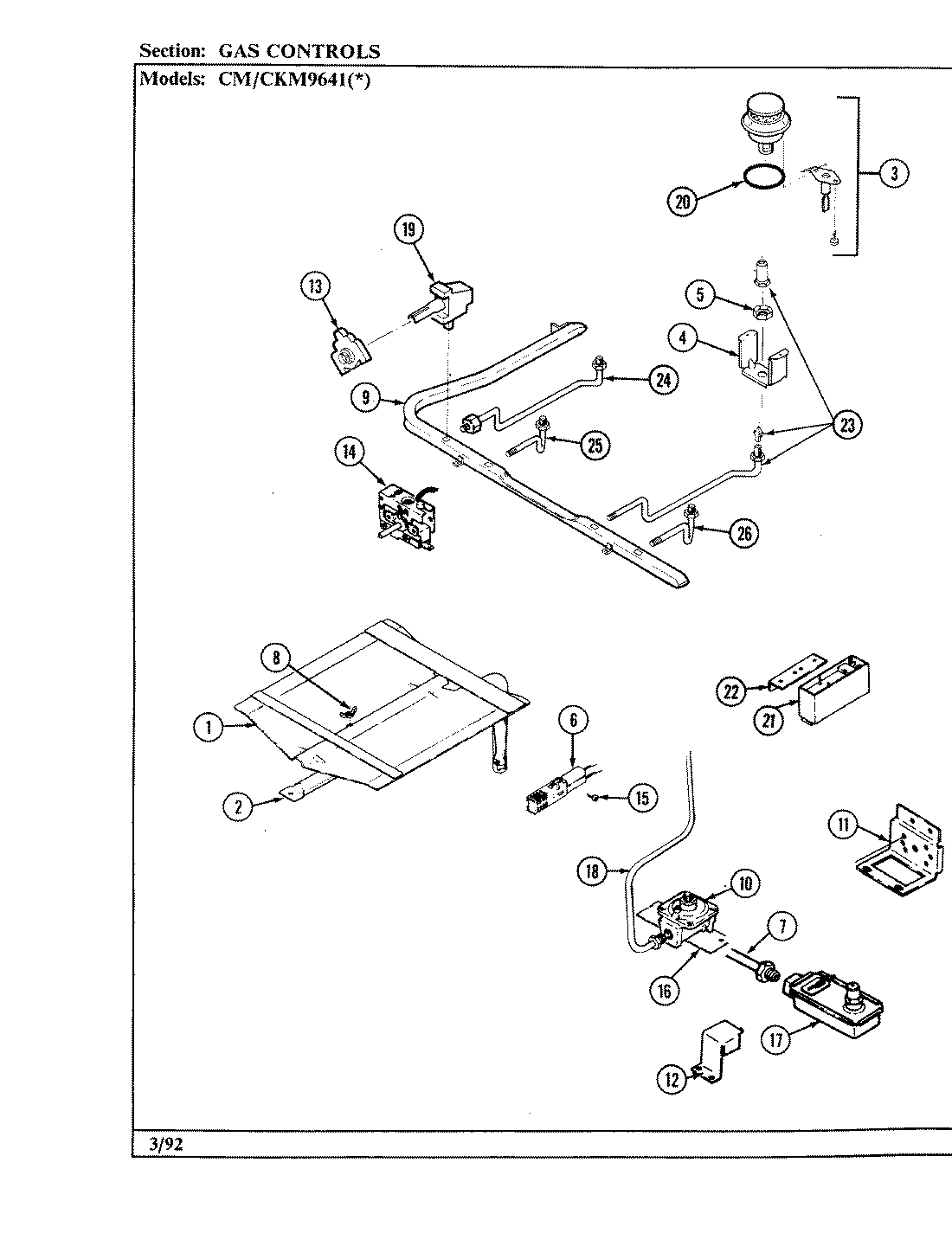

CM9641W590R 04 – GAS CONTROLS

CM9641W590R 04 – GAS CONTROLS

Products

PositionProduct
1MAY 3601F181-45
2MAY 3403D027-45
3WP3412D024-26 Whirlpool Oven Surface Burner Head
3MAY 3412D015-14
3MAY 3412D017-26
3MAY 3412D015-09
3MAY 5111A360-60
3MAY 5111A361-60
3MAY 7432P072-60
3MAY 3412D016-09
3NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3MAY 7118P013-60
4MAY 3807F378-45
5MAY 7103P119-60
6MAY 4005F304-51
6MAY 7432P067-60
7MAY 7506P098-60
8NUT, WING
9MAY 7513P104-60
10MAY 7510P048-60
11WP4159193 Whirlpool Screw
11MAY 3807F120-34
12MAY 4005F173-51
13WP7403P287-60 Whirlpool Igniter Switch
14MAY 7101P279-60
14MAY 7404P062-60
15SCREW (10-24X5/16-NI)
16MAY 3801F191-45
16MAY 7101P280-60
17MAY 7501P108-60
18MAY 7506P100-60
19MAY 7101P296-60
19MAY 7502P220-60
20MAY 7201P050-60
21MAY 7431P021-60
22MAY 3801F226-45
23MAY 7507P069-60
24MAY 7507P092-60
25MAY 7507P073-60
26MAY 7507P071-60
