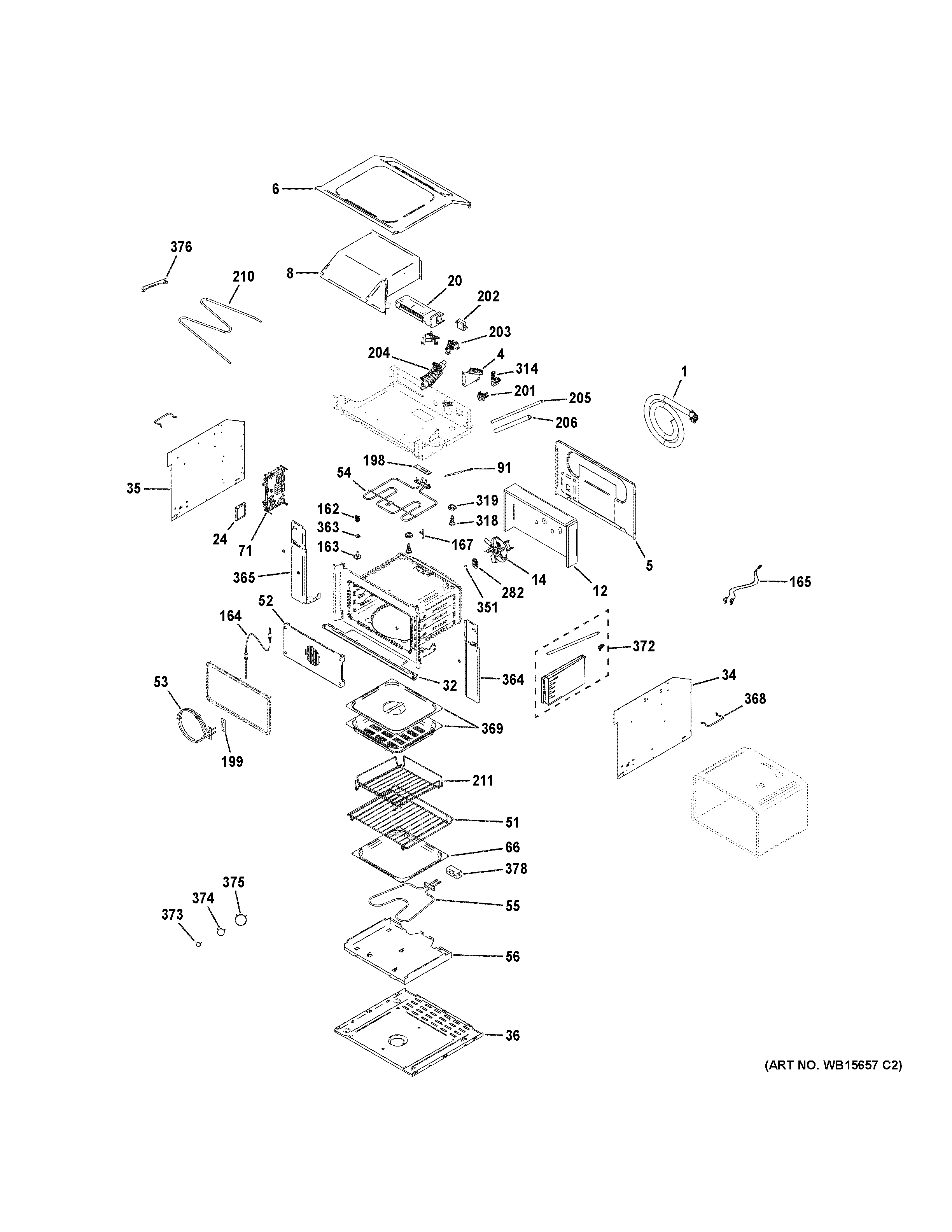

CMB903M2N1S5 BODY PARTS

Products

PositionProduct
1POWER CORD ASM
4TERMINAL BLOCK
5BACK PANEL
6COVER HOUSING TOP
8CONDENSER SHROUD
12REAR INSULATION
14CONVECTION FAN
20COOLING FAN 60/180 120V UL
24HALOGEN LAMP ASM
32BOTTOM TRIM
34RIGHT SIDE PANEL
35LEFT SIDE PANEL
36BOTTOM PANEL
51OVEN RACK
52CONVECTION FAN COVER
53CONVENTION HEATING ELEMENT 1500W
54BROIL HEATING ELEMENT 1500W
55HIDDEN BAKE ELEMENT 300W
56HIDDEN BAKE TRAY
66SOLID PAN
71MAIN BOARD
91OVEN SENSOR
162MEAT PROBE JACK
163MEAT PROBE CAP
164MEAT PROBE
165MEAT PROBE HARNESS
167DOOR REED SWITCH
198BROIL HEATING ELEMENT GASKET
199CONVENTION HEATING ELEMENT GASKET
201FLOW SENSOR
202MAGNETIC ANTI-SCALE
203WB26X35219 GE Water Pump Assembly
204BOILER
205SILICONE TUBE d.6X2MM
206SILICONE TUBE d.10X3MM
210PIPE CONDENSER
211TABLE RACK
282CONVECTION FAN GASKET
314FILTER
318NOZZLE 9 M20X1
319NUZZLE NUT 9 M20X1
351BUSHING FOR RUBBER RADIAL STEA
363MEAT PROBE NUT
364RIGHT TRIM
365LEFT TRIM
368SIDE PANEL HANDLE
369PERFORATED PAN WITH LID
372TANK ASSEMBLY
3735mm CLAMP SPRING
3746 mm CLAMP SPRING
37510 mm CLAMP SPRING
376BRACKET CONDENSER
378BRACKET FOR HIDDEN BAKE ELEMENT
