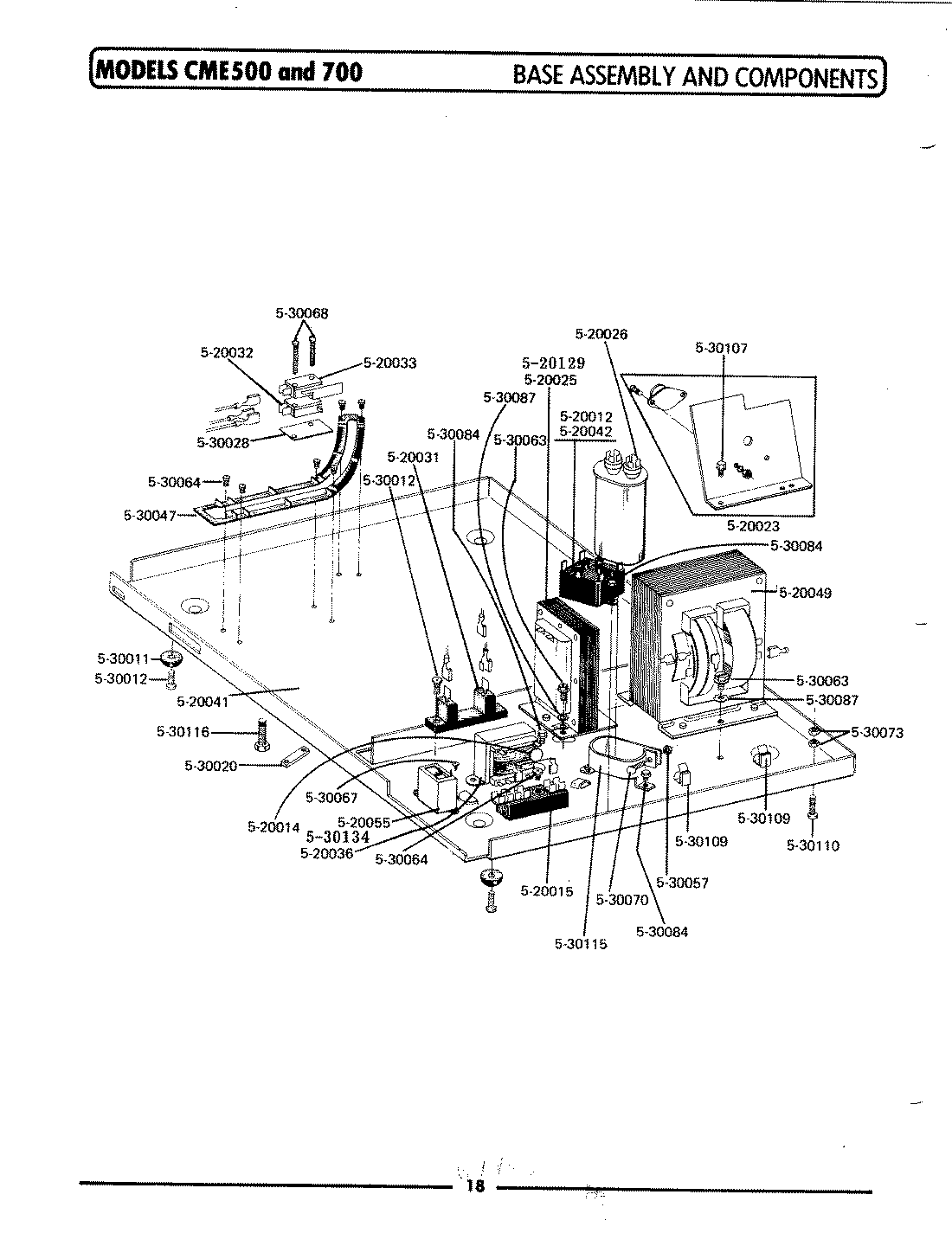

CME500 01 – BASE ASSEMBLY & COMPONENTS

CME500 01 – BASE ASSEMBLY & COMPONENTS

Written by

in

CME500 01 – BASE ASSEMBLY & COMPONENTS

Products

PositionProduct
1MAY 520012
2MAY 520014
3MAY 520015
4MAY 520023
5MAY 520025
6MAY 520026
7MAY 520031
8MAY 520032
9MAY 520033
10MAY 520036
11MAY 520041
12MAY 520042
13MAY 520049
14MAY 520055
15MAY 530011
16MAY 530012
17MAY 530020
18MAY 530028
19MAY 530047
20MAY 520129
21MAY 530134
22MAY 530057
23MAY 530063
24MAY 530064
25MAY 530067
26MAY 530068
27MAY 530070
28MAY 530073
29MAY 530084
30MAY 530087
31MAY 530107
32MAY 530109
33MAY 530110
34MAY 530115
35MAY 530116
