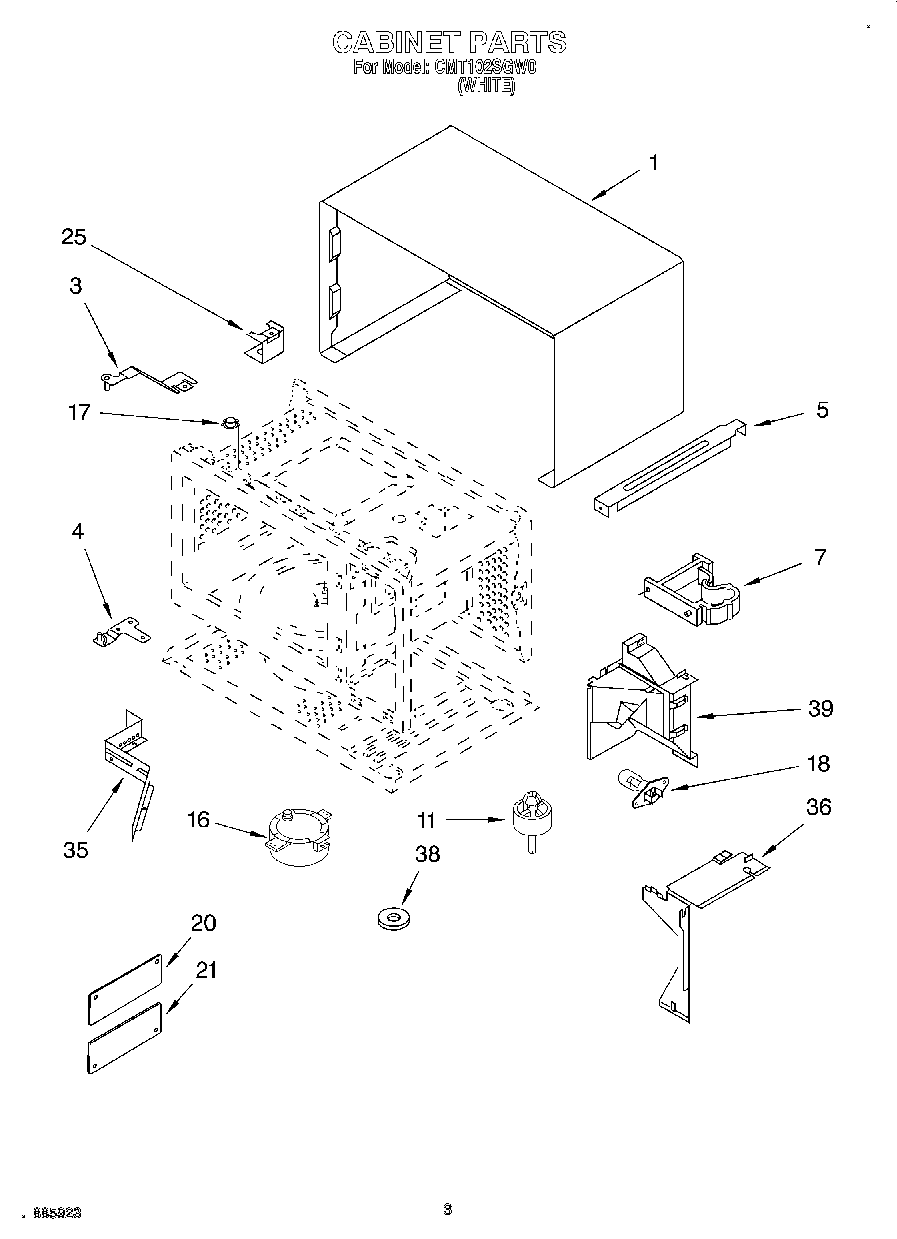

CMT102SGW0 03 – CABINET, LITERATUREadmin2025-04-26T09:34:28+00:00CMT102SGW0 03 – CABINET, LITERATURE
Products
| Position | Product |
|---|
| Use & Care Guide |
| Tech Sheet |
| Cooking Guide Label |
| 1 | Cover, Oven |
| 3 | Hinge, Upper |
| 4 | Hinge, Lower |
| 5 | Support |
| 7 | Spacer, Back |
| 11 | Oven Foot |
| 16 | Motor, Turntable |
| 17 | Thermostat |
| 18 | Light Assy. |
| 20 | Cover, Upper |
| 21 | Cover, Lower |
| 25 | Support, Thermostat |
| 35 | Guide, Air |
| 36 | Guide, Air |
| 38 | 8184109 Whirlpool Microwave Spacer |
| 39 | Guide, Air |
