CNE22SSEAFSS CASE PARTS

CNE22SSEAFSS CASE PARTS

Written by

in

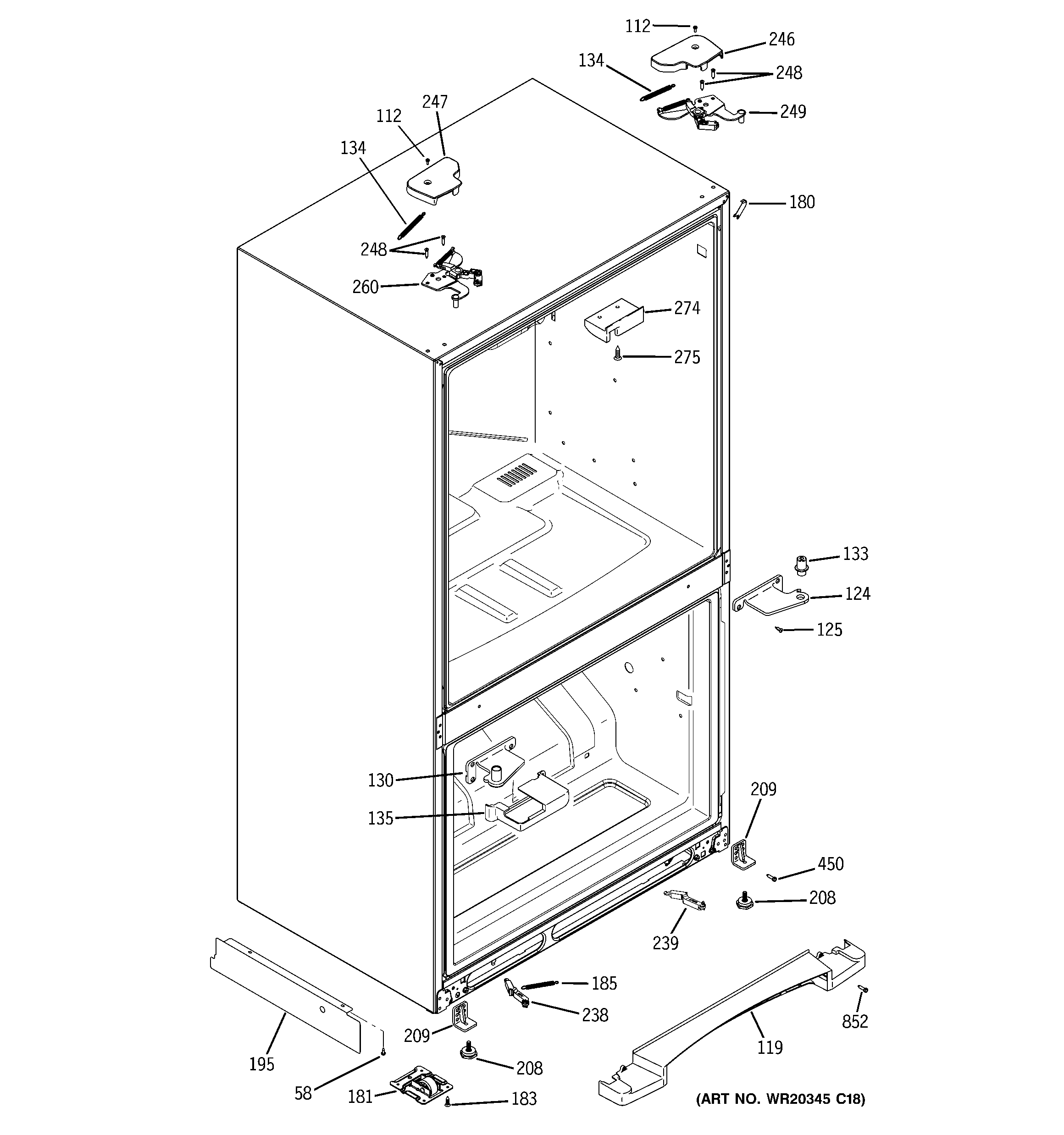

CNE22SSEAFSS CASE PARTS

Products

PositionProduct
58WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
112WR01X10379 GE Refrigerator Hinge Cover Screw
119GEN WR74X20502
124GEN WR13X10637
125WR01X10690 GE Refrigerator Screw 12-24 TT HXT20 .90 S
130GEN WR13X10633
133WR01X10793 GE Refrigerator Hinge Adjuster Pin
134WR01X10827 GE Refrigerator Closure Spring
135COVER HINGE
180WR02X13791 GE Refrigerator Corner Cap
181GEN WR02X12807
183WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
185WR1X2027 GE Refrigerator Spring Closure
195WR17X12295 GE Refrigerator Separator Air HISIDE
208WR01X10850 GE Refrigerator Leveling Screw
209GEN WR02X12874
238WR11X10017 GE Refrigerator Lever Arm Closure Assembly
239WR11X10016 GE Refrigerator Lever Arm Closure Assembly
246COVER HINGE TOP
247COVER HINGE TOP
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249GEN WR13X10642
260GEN WR13X10634
274GEN WR02X12884
275WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
450WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
