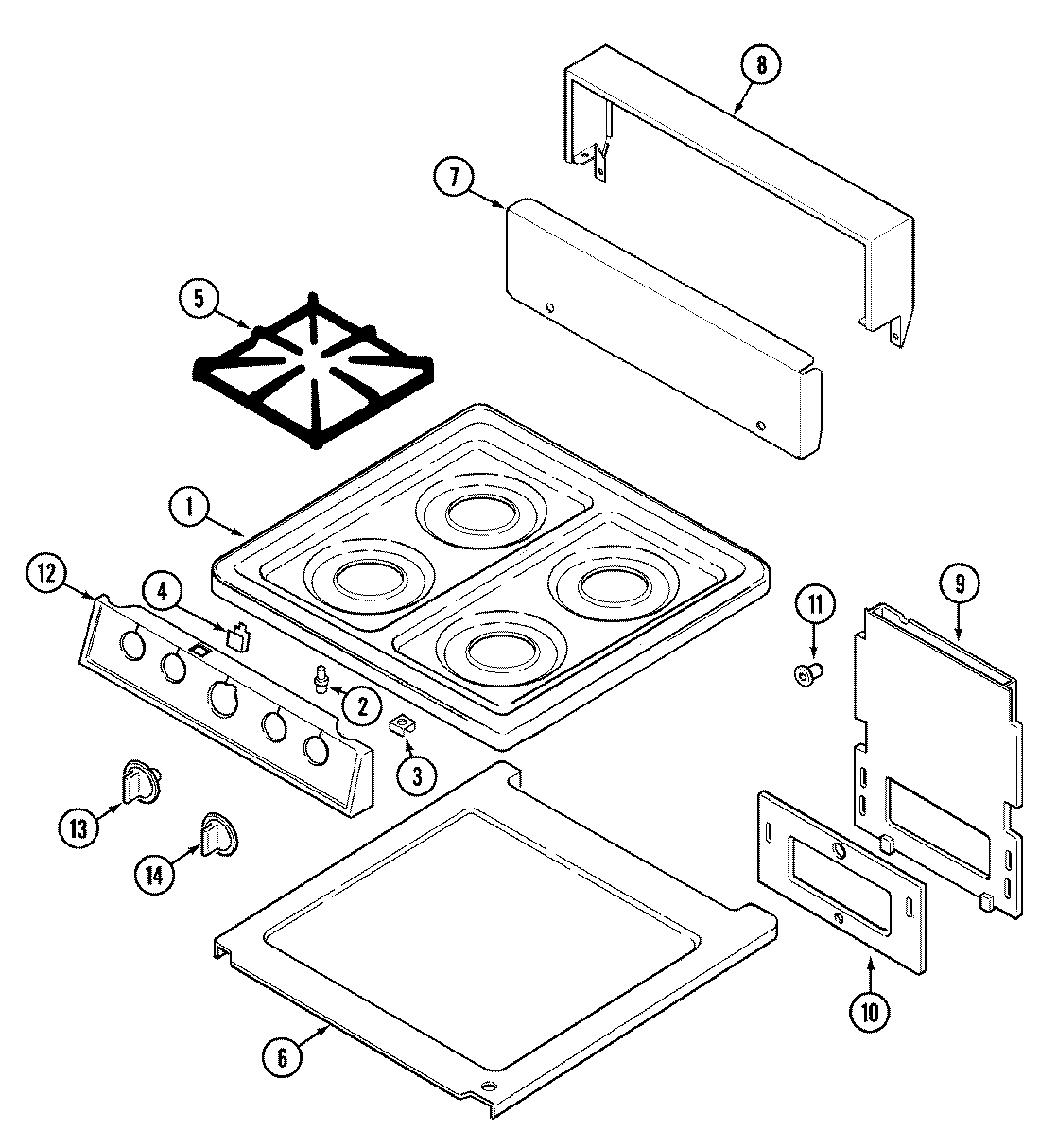

CNP2010BXL 05 – TOP ASSEMBLY – Aparts

CNP2010BXL 05 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 8110P208-60
NI	MAY 16000327
1	MAY 2001F050-84
2	MAY 8024P003-60
3	MAY 7103P105-60
4	MAY 8002P022-60
5	MAY 2003W023-00
6	MAY 4011F164-80
7	MAY 2601F210-84
8	MAY 3603F017-50
8	MAY 7103P064-60
8	MAY 7101P068-60
9	MAY 4006W062-45
10	MAY 7201P038-60
11	MAY 7103P089-60
11	WP7101P072-60 Whirlpool Screw
12	MAY 7103P100-60
12	MAY 2616F086-74
12	MAY 7728P032-60
12	MAY 7101P061-60
13	MAY 7731P092-60
14	MAY 7733P010-60
