CNP2010BXW 02 – DOOR/DRAWER – Aparts

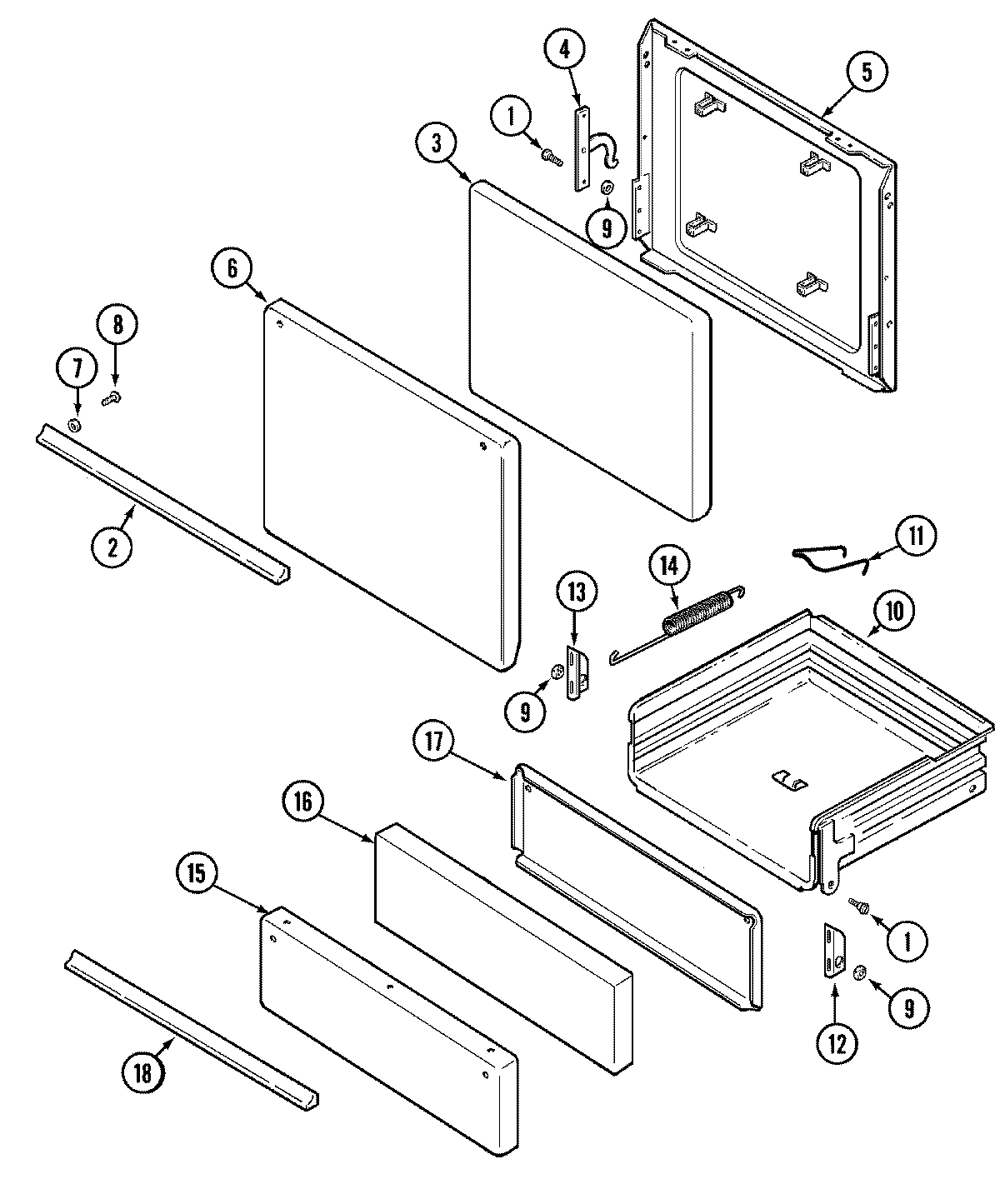

CNP2010BXW 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 7118P009-60
2	MAY 7701P050-60
3	MAY 7002P102-60
4	MAY 3418F053-34
5	MAY 2402W102-19
6	MAY 2401W059-81
7	W10080180 Whirlpool Nut
7	MAY 8010P020-60
8	MAY 7101P080-60
8	WP7101P072-60 Whirlpool Screw
9	MAY 7103P072-60
10	MAY 3407W005-19
11	MAY 7809P004-60
12	MAY 3418F035-80
13	MAY 3418F034-80
14	MAY 7803P068-60
15	MAY 2403W019-71
16	MAY 7002P067-60
17	MAY 2404F022-19
18	74002481 Whirlpool Screw
18	MAY 7701P049-60
