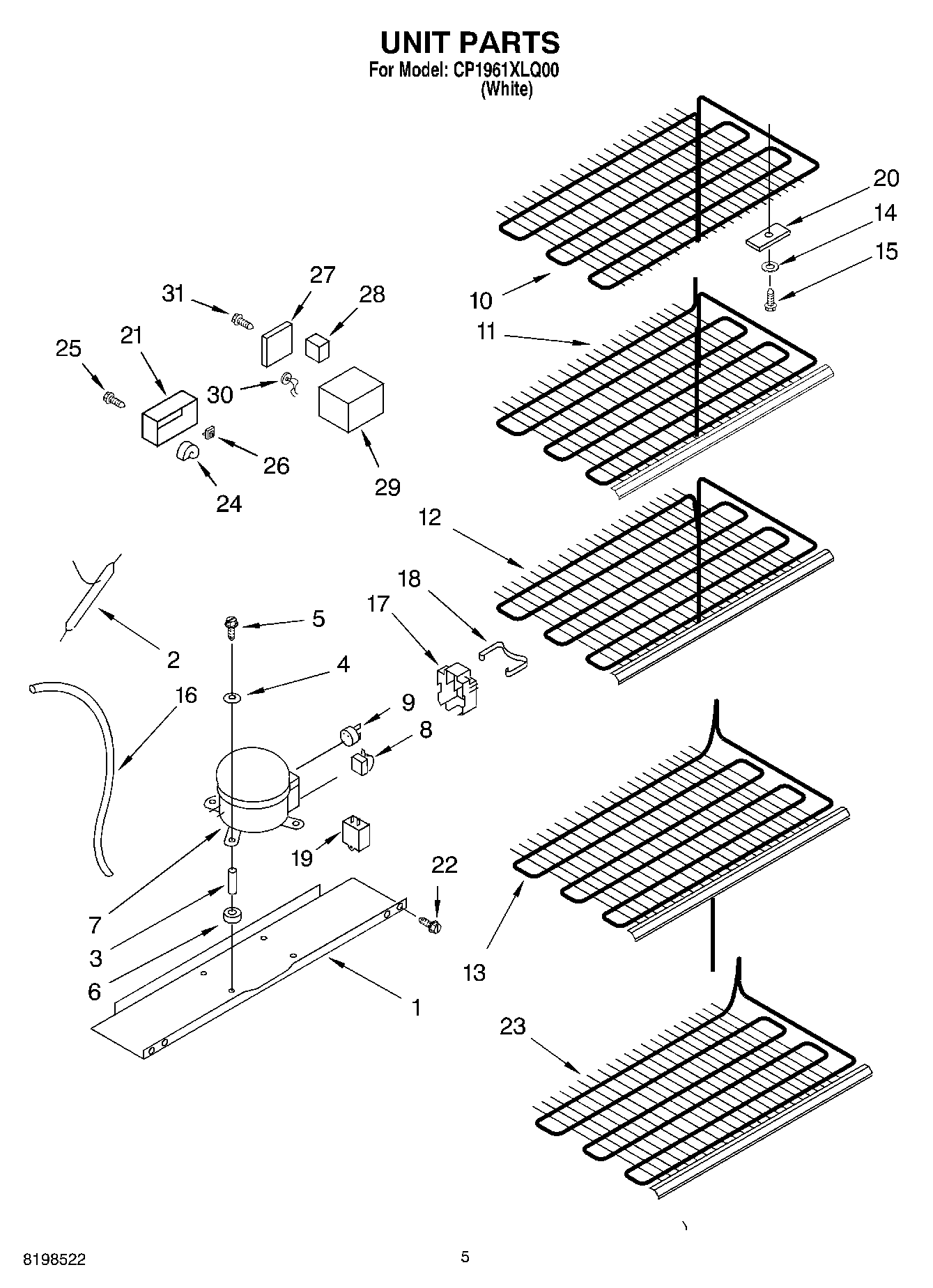

CP1961XLQ00 03 – UNIT PARTS

Products

Position	Product
1	Pan, Compressor Mounting
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	Screw, Compressor Mounting
6	Grommet, Mounting Compressor
7	W10309994 Whirlpool Refrigerator Compressor
8	Relay
9	2-34286-021 Whirlpool Refrigerator Overload Relay
10	Evaporator Top
11	Evaporator Shelf
12	Evaporator Shelf
13	Evaporator Shelf
14	W10903204 Whirlpool Refrigerator Washer
15	WP3-24004-109 Whirlpool Refrigerator Screw
16	Heat Exchanger
17	4356777 Whirlpool Term Cover
18	Clip
19	3-35956-013 Whirlpool Refrigerator Capacitor
20	1-80308-101 Whirlpool Refrigerator Bulb Clamp
22	WP3-24838-048 Whirlpool Refrigerator Screw
23	Evaporator Shelf, Bottom
24	Buzzer, Alarm
25	W10491985 Whirlpool Screw
26	Switch, Alarm
27	Lid, Thermostat Box
28	Block, Thermostat
29	Box, Thermostat
30	Thermodisc, Alarm
31	REFRIGERANT CHARGE 6.9 oz. (R-134A)
31	Screw
