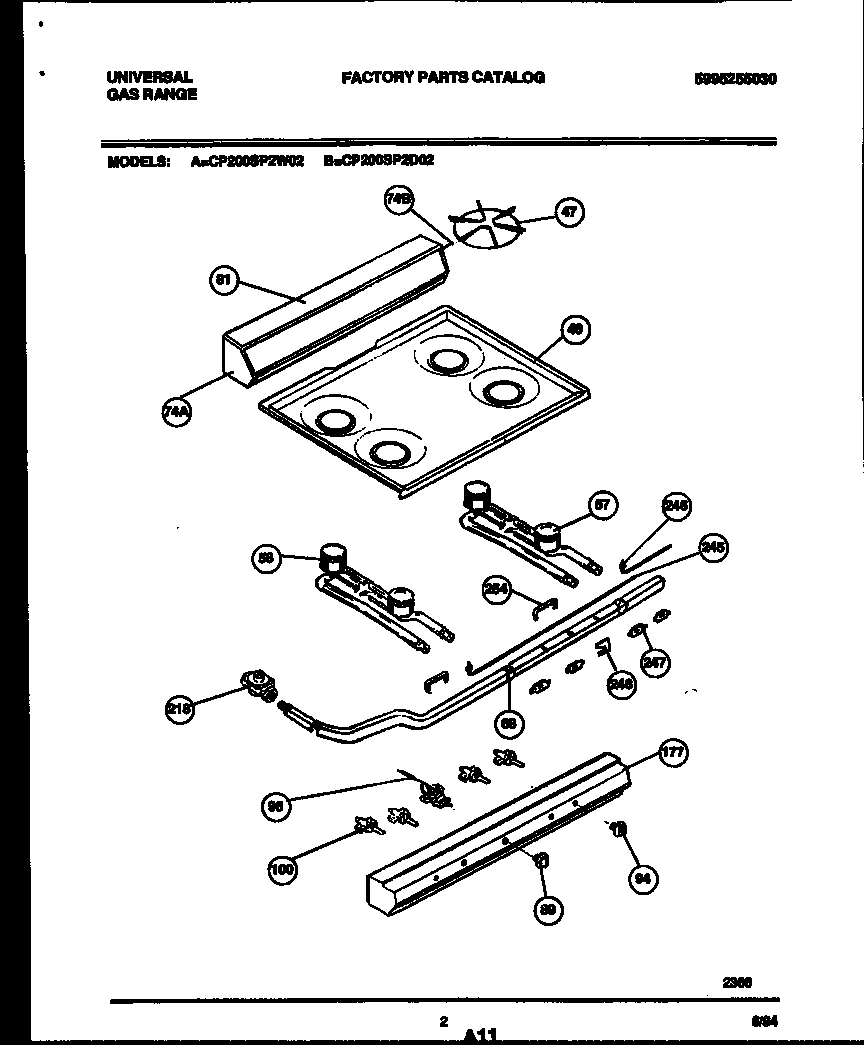

CP200SP2D2 02 – BACKGUARD, COOKTOP AND BURNER PARTS

CP200SP2D2 02 – BACKGUARD, COOKTOP AND BURNER PARTS

Written by

in

CP200SP2D2 02 – BACKGUARD, COOKTOP AND BURNER PARTS

Products

PositionProduct
*10348WCI 5303285789
*10348WCI 5303285950
*10348WCI 5303285962
47WCI 5303285720
48TOP-MAIN-ALMD
57BURNER-TOP, FRONT
58BURNER-TOP, REAR
68WCI 5303285723
74AWCI 5303285854
74BWCI 5303285855
81BACKGUARD-SHELL-ALMD
81WCI 5303285856
89WCI 5303285724
94KNOB-TOP VALVE
96WCI 5303285726
100WCI 5303285727
177PANEL MANIFOLD-ALMD
2185308007974 Frigidaire Pressure Regulator
245SPARK-IGNITOR, LH
246SPARK-IGNITOR, RH
247SWITCH-IGNITOR, TOP BURNER
248SWITCH-IGNITOR, OVEN BURNER
254WCI 5303285777
