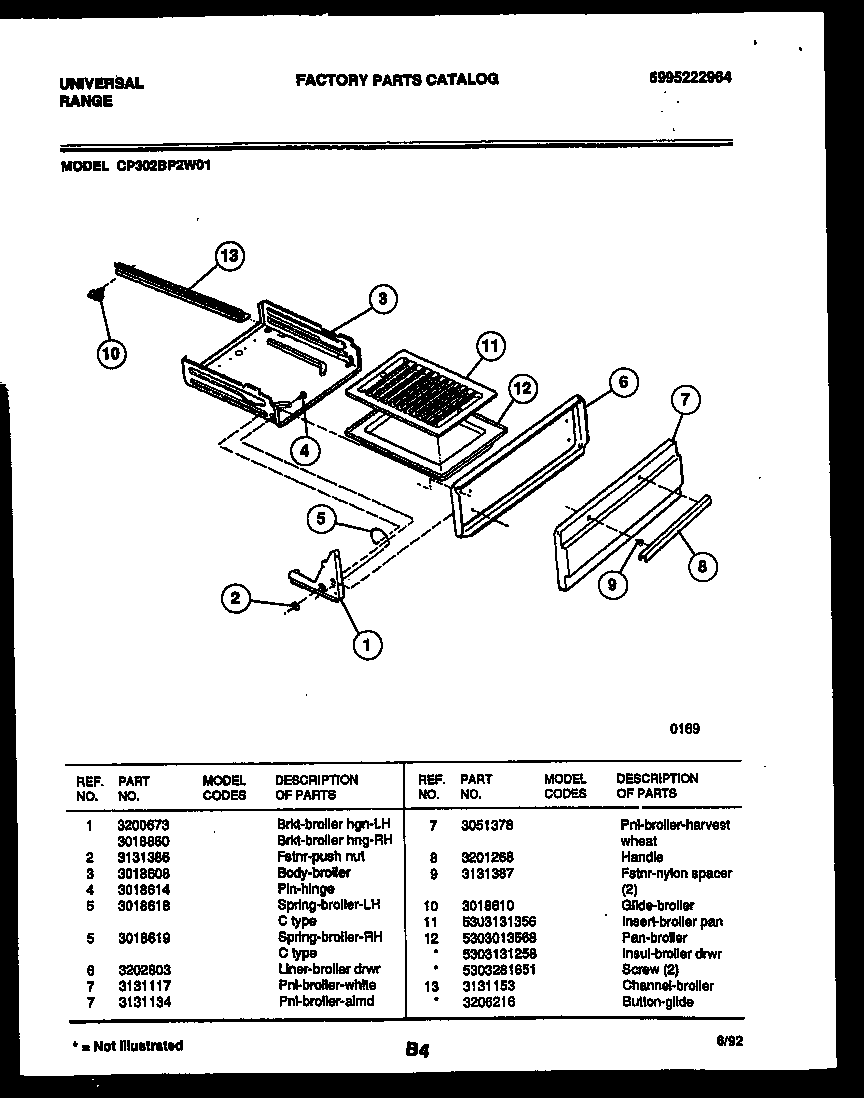

CP302BP2D1 04 – BROILER PARTS

Products

Position	Product
*25021	WCI 3206216
1A	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5	WCI 3018618`
5	SPRING-BROILER, RH
6	WCI 3202803
7	PANEL - BROILER ALMD
8	HANDLE-DRAWER, BRUSHED CHROME
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 5303131356
12	PAN-BROILER
12A	INSULATION, BROILER DRAWER
12B	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
13	WCI 3131153
