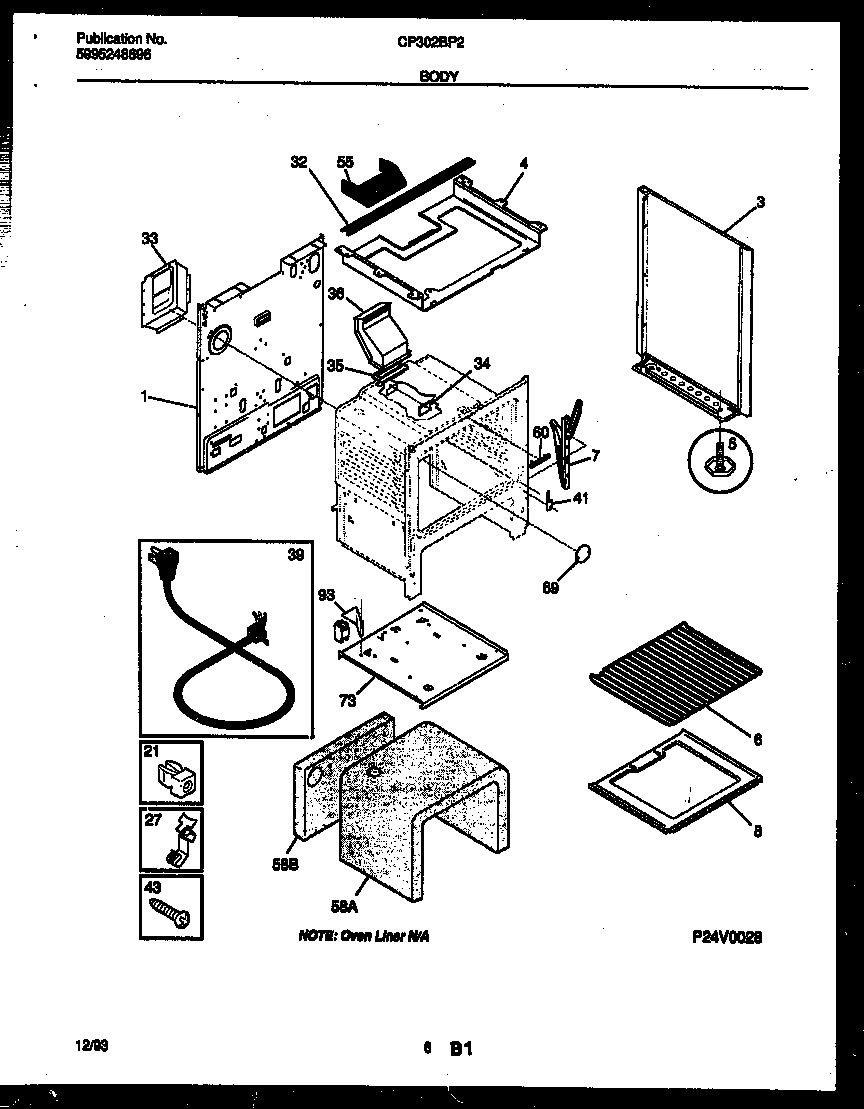

CP302BP2D3 04 – BODY PARTS

Products

Position	Product
*94217	WCI 5303280614
1	WCI 3203082
3A	WCI 5303269545
3	WCI 5303269543
4	BURNER BOX BOTTOM
5A	ANTI-TIP KIT
5B	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	BTTM-OVEN
8A	316064600 Frigidaire Oven Support
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
55	SHIELD-TOP (NON-ILLUSTRATED)
55A	SHIELD-FLUE, (NON-ILLUSTRATED)
58B	INSUL - OVEN BACK (NON-ILLUSTRATED)
58A	INSULATION, OVEN WRAPPER
60	COVER-OVEN FRONT
69	3051218 Frigidaire Oven Plate
73	BASE-BROIL
93	WCI 316055501
