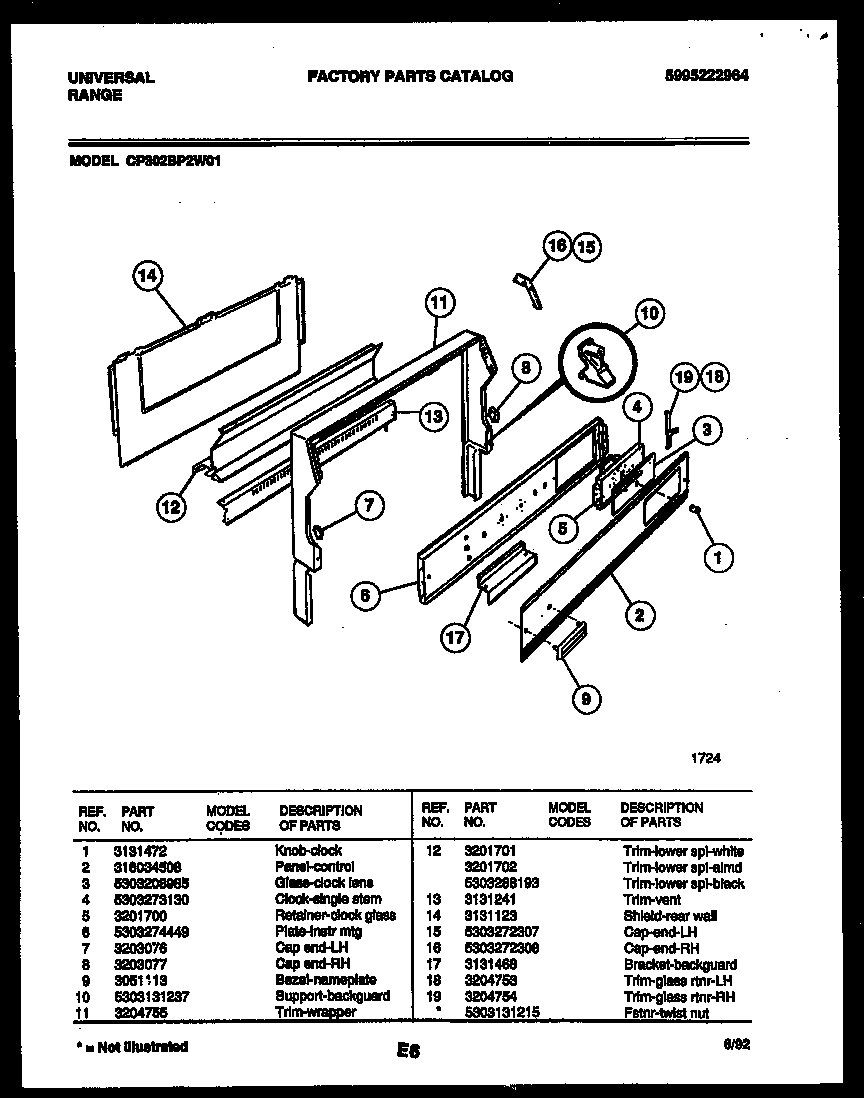

CP302BP2W1 02 – BACKGUARD

CP302BP2W1 02 – BACKGUARD

Written by

in

CP302BP2W1 02 – BACKGUARD

Products

PositionProduct
*54141NUT, TWIST
1KNOB-CLOCK
2PANEL-CONTROL, METAL
3LENS-CLOCK, GLASS
4WCI 5303273130
5RETAINER, CLOCK GLASS, (2)
6PLATE-INSTRUMENT
7CAP-LH
8CAP-RH
9WCI 3051113
10SUPPORT-BACKGUARD,(2)
11WCI 3204755
12TRIM-LOWER SPLASHER (WHITE)
12TRIM-LWR SPLSHR (ALMD)
12WCI 5303288193
13WCI 3131241
14SHIELD-BACKGUARD,REAR WALL
15WCI 5303272307
16WCI 5303272308
17WCI 3131468
18TRIM-GLASS RETAINER,LH
19TRIM-GLASS RETAINER,RH
