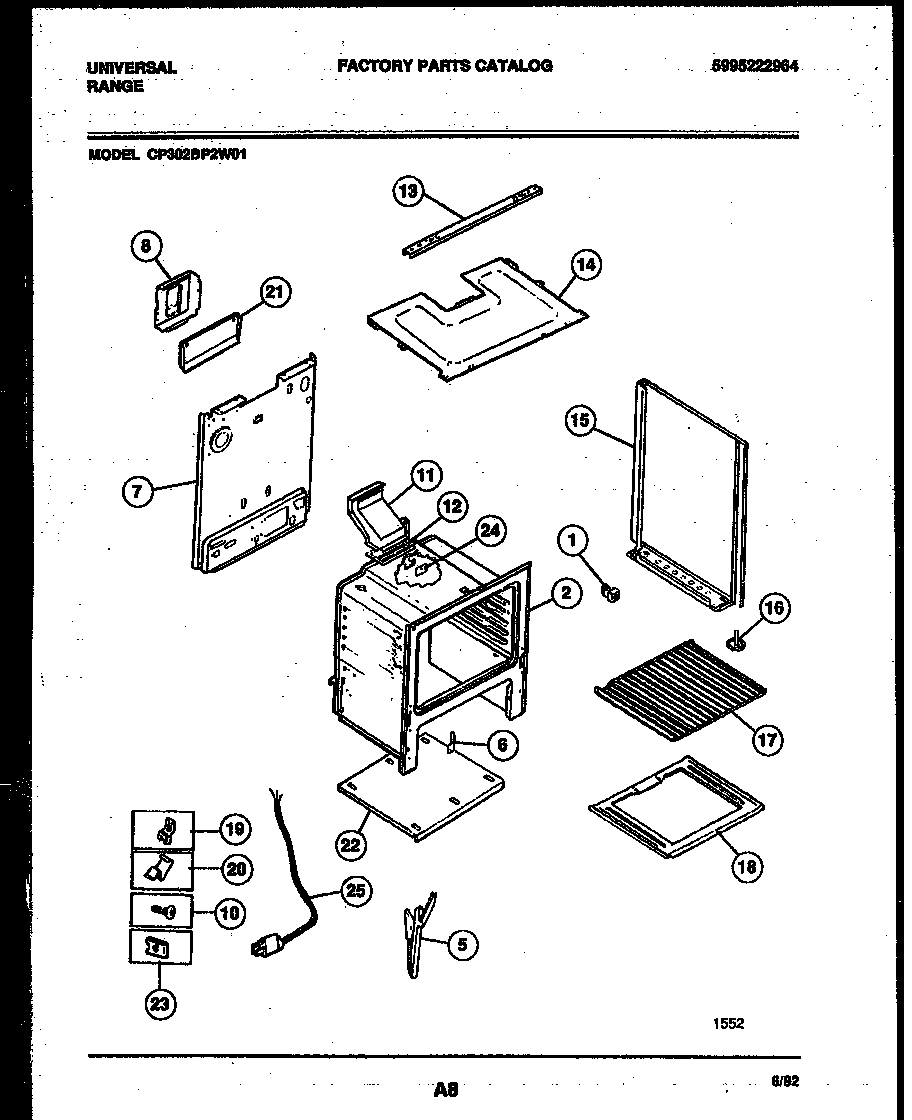

CP302BP2WY01 07 – BODY PARTS

Products

Position	Product
*73006	WCI 08010570
*73006	DIAGRAM, WIRING (NOT FOR PURCHASE)
1	SPACER-BODYSIDE, (8)
5	Hinge,oven door ,(2)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
10	316282700 Frigidaire Oven Screw
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	CHANNEL-BURNER BOX
14	BURNER BOX BOTTOM
15	PNL-B/S RH-WHEAT
15	PNL-B/S LH-WHEAT
15	WCI 5303269543
15	PNL-B/S-RH-WHITE
15	PNL-B/S-LH-WHITE
15	WCI 5303269545
16	SCREW-LEVELING
17	316067902 Frigidaire Oven Rack
18	INSULATION, OVEN WRAPPER
18	INSUL - OVEN BACK (NON-ILLUSTRATED)
18	BTTM-OVEN
19	WCI 08067961
19	5303284616 Frigidaire Range Bulb Clip Thermostat
20	316539800 Frigidaire Oven Retainer
21	WCI 5303280614
21	316064600 Frigidaire Oven Support
21	3131903 Frigidaire Door/Drawer Bumper
22	COVER-POWER CORD, (NON-ILLUSTRATED)
22	WCI 5303270160
22	ANTI-TIP KIT (NOT ILLUSTRATED)
23	3203010 Frigidaire Clip
23	COVER-OVEN FRONT
24	COVER-IGNITOR
24	SHIELD-FLUE, (NON-ILLUSTRATED)
24	SHIELD-TOP (NON-ILLUSTRATED)
25	5304515659 Frigidaire Oven Power Cord
