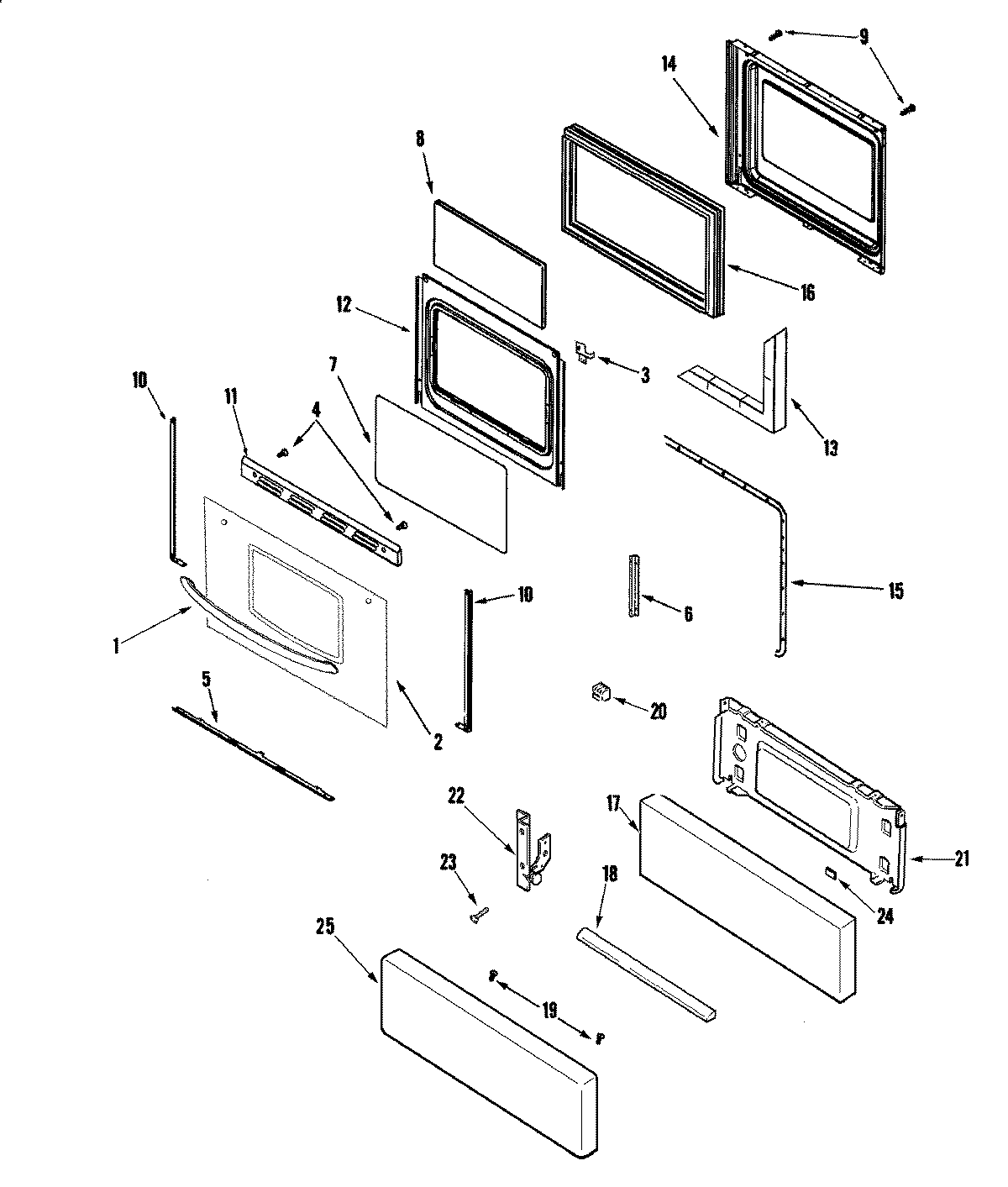

CP31600ADQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74010336
2MAY 12002506
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP98008545 Whirlpool Screw
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BSQ)
6MAY 74003650
7WP74009541 Whirlpool Screw Assembly
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10TRIM, DOOR (BSQ-RT)
10TRIM, DOOR (BSQ-LT)
10WP74009014 Whirlpool Double Tape
11MAY 74010237
12MAY 74009502
12MAY 7101P356-60
13INSULATION, OVEN DOOR
14NUT, SNAP (ROUND-BLK)
14MAY 74009909
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16FRAME, GLASS
17MAY 74001814
18MAY 74010425
20MAY 74001663
21MAY 74007553
23MAY 74009897
24WP74005546 Whirlpool RU Spacer
24SPACER, RUBBER (BLK-SQUARE)
25MAY 74005046
