CP31600ADQ 05 – GAS CONTROLS

CP31600ADQ 05 – GAS CONTROLS

Written by

in

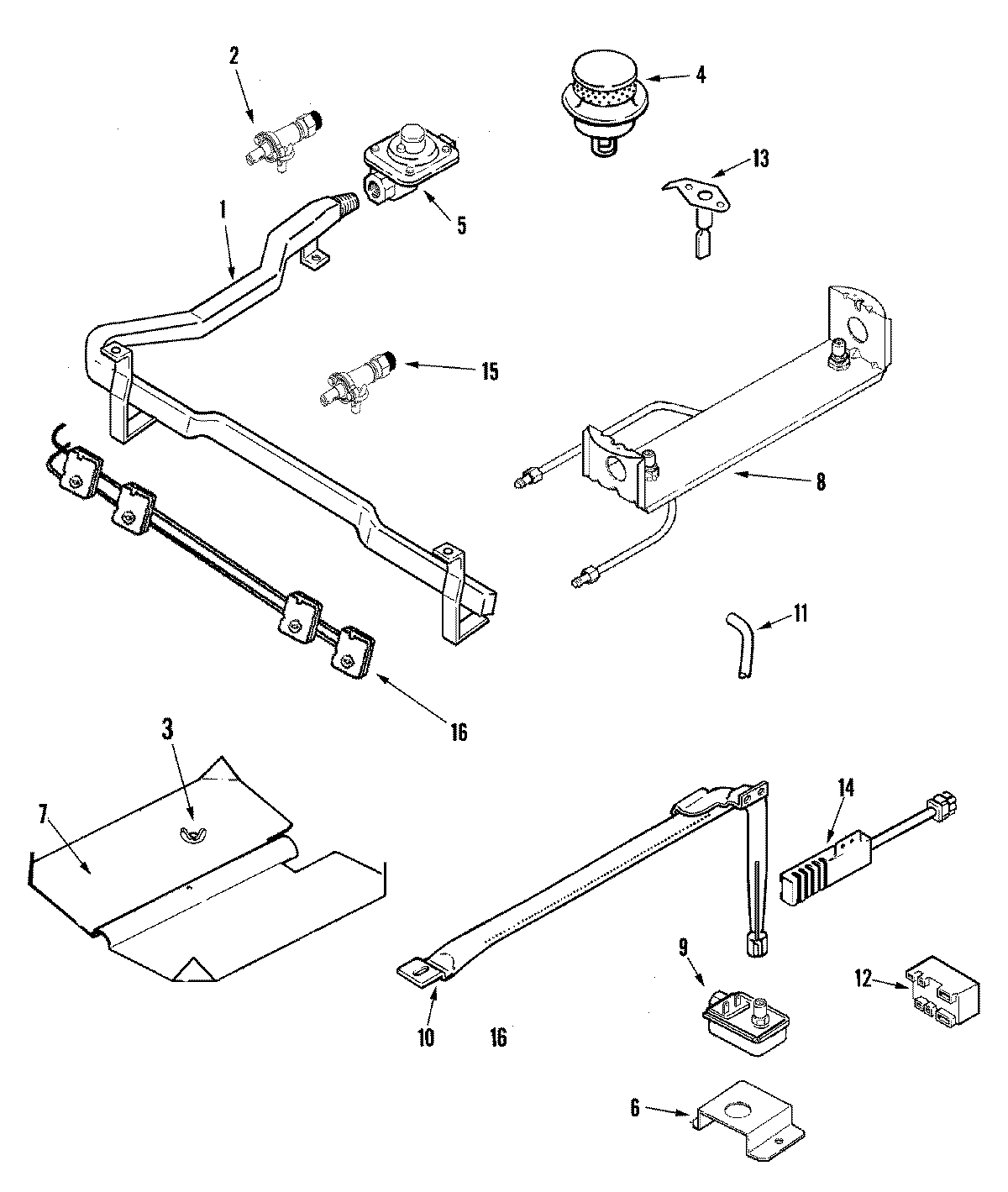

CP31600ADQ 05 – GAS CONTROLS

Products

PositionProduct
1MAY 74009886
2MAY 74009770
2MAY 74009462
3NUT, WING
4WP3412D024-09 Whirlpool Oven Burner Head
4WP3412D021-09 Whirlpool Burner Assembly
5MAY 74007524
7MAY 74002393
8MAY 74010468
8MAY 74010469
9MAY 74010466
9MAY 74009416
10MAY 74002434
10SCREW
11MAY 74006417
128215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
1374004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
13MAY 74004410
1474007498 Whirlpool Range Flat Igniter
14SCREW (10-24X5/16-NI)
15MAY 74009460
15MAY 74009427
16WPW10180490 Whirlpool Wire Harness
