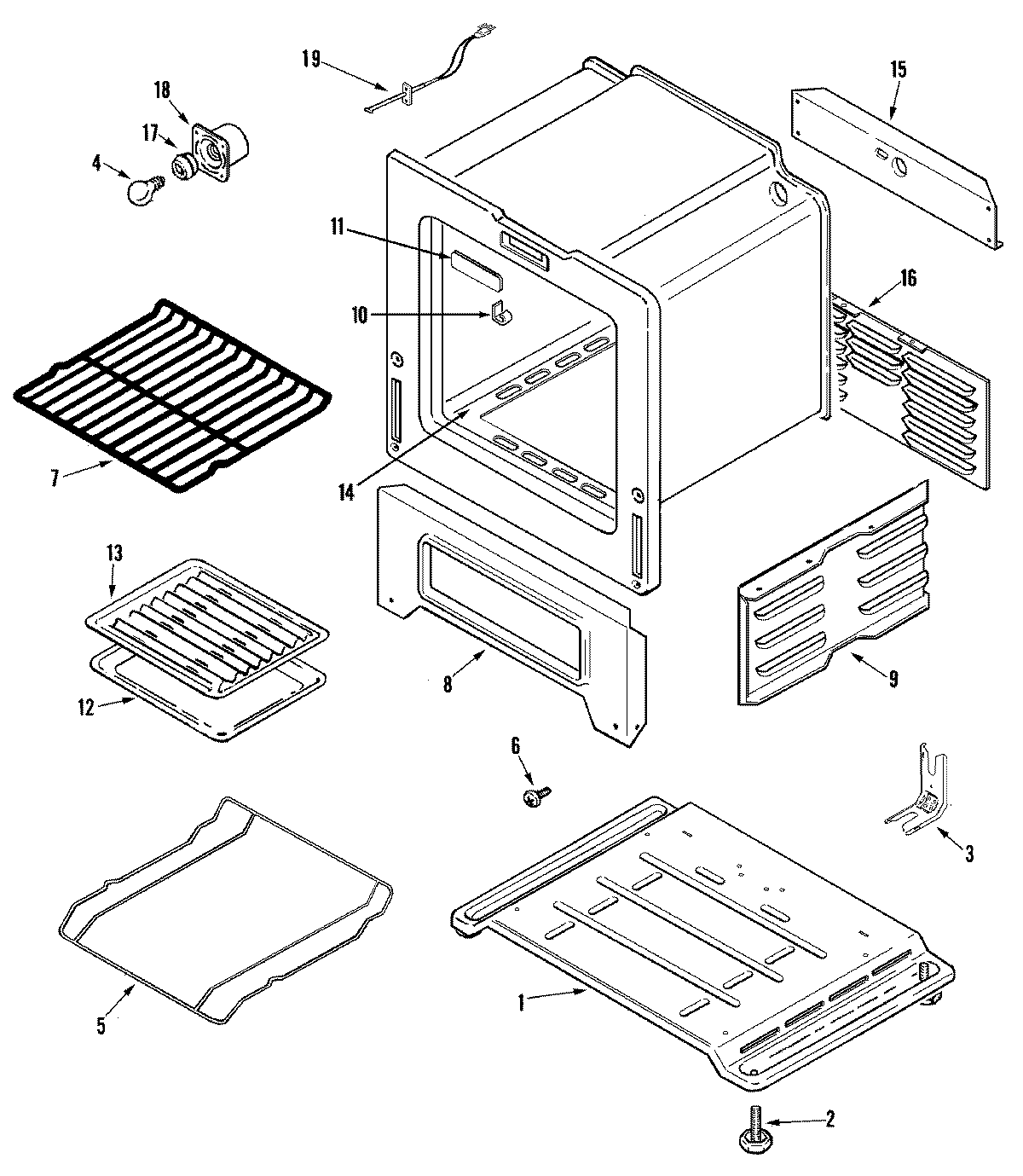

CP31600ADQ 06 – OVEN/BASE

Products

Position	Product
1	MAY 74005215
2	W11665456 Whirlpool Range Level Foot
3	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
3	WP7101P485-60 Whirlpool Anchor Tip
4	RANGE ONLY 40W 120V APPL BULB
5	MAY 74002381
6	SCREW (8ABX1/2``-BLK)
7	WPW10282492 Whirlpool Oven Rack
8	MAY 74002327
9	MAY 74002374
9	MAY 74002375
10	WP7112P004-60 Whirlpool Thermal Clip
11	PLUG, LOCK SLOT
12	MAY Y3401F02019
13	MAY Y3413F01619
14	MAY 74011228
14	MAY 74002393
14	MAY 71001394
14	MAY 74002376
14	MAY 74002377
15	MAY 74002378
16	MAY 74002379
17	MAY 74003387
17	SCREW
18	MAY 74003388
19	12001655 Whirlpool Oven Sensor
