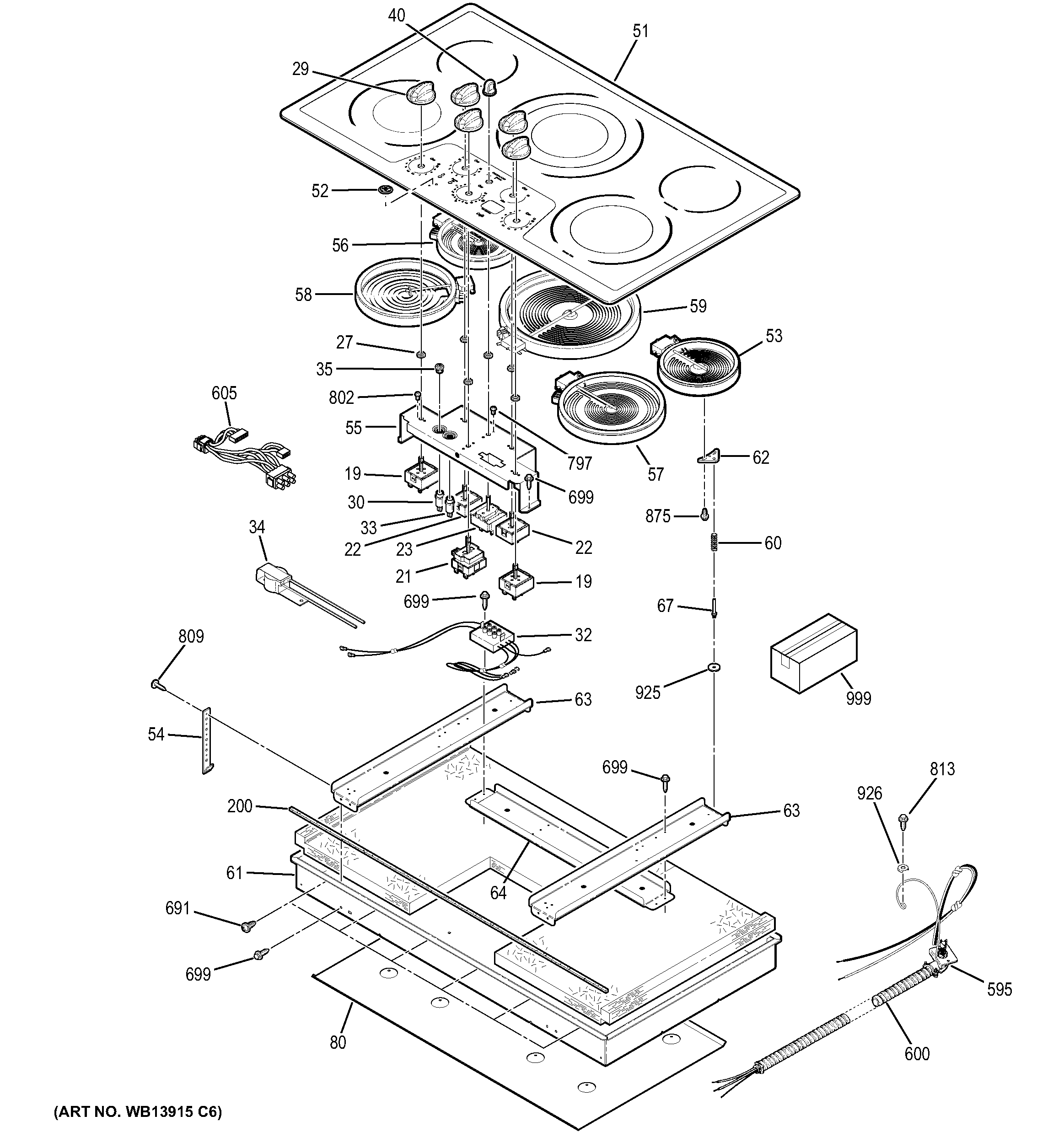

CP650ST3SS 1 – CONTROL PANEL & COOKTOP

Products

Position	Product
19	SWITCH INFINITE CONTROL
21	WB24T10133 GE Oven Infinite Switch Control
22	SWITCH INFINITE CONTROL
23	WB24T10176 GE Oven Switch Lockout Kit
27	INFINITE CONTROL SEAL
29	GEN WB03T10319
30	GEN WB25T10046
32	LIGHT INDICATOR ASM
33	WB25T10012 GE Oven Indicator Light
34	WB08T10038 GE Oven Buzzer 240V
35	WB25T10041 GE Oven Lens
40	WB03X32194 GE Oven Knob Kit
51	GEN WB62X22360
52	WB03T10342 GE Bad
53	WB30T10124 GE Oven 6" Radiant Warmer Element
54	WB2K5328 GE Oven Hold Down Bracket
55	BRACKET INF SWITCH
56	WB30T10145 GE Oven Radiant Surface Element
57	WB30T10131 GE Oven Halogen Element 8 In
58	ELEMENT HALIANT 8 IN
59	WB30T10126 GE Oven Triple Halogen Element
60	WB09T10005 GE Oven Spring Radiant
61	WB64T10044 GE Burn Box Bottom
62	WB2K5318 GE Oven Radiant Heater Bracket
63	WB02T10602 GE Element Support Bracket
64	WB02T10330 GE Element Support Bracket
67	WB2X9502 GE Oven Stud
80	WB34T10104 GE Burn Box Bottom Shield
200	WB06T10007 GE Oven Cooktop Tape
595	WB2X9867 GE Oven Condenser Plate
600	WB18T10374 GE Wire Conduit Assembly
605	GEN WB18X22363
605	HARNESS WIRE MAIN RT
699	WB1M1 GE Oven Screw
797	WB1K5119 GE Oven Screw
802	GEN WB01K5123
809	WB1X1137 GE Oven Screw
813	WB1X1261 GE Oven Screw
875	WH2X930 GE Screw
925	WB1K5117 GE Oven Washer
926	GROUND WASHER
999	GEN 31-14972
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	GEN 49-80413
999	GEN 31-10636
