CPBM3077RFC 02 – OVEN,CABINET

CPBM3077RFC 02 – OVEN,CABINET

Written by

in

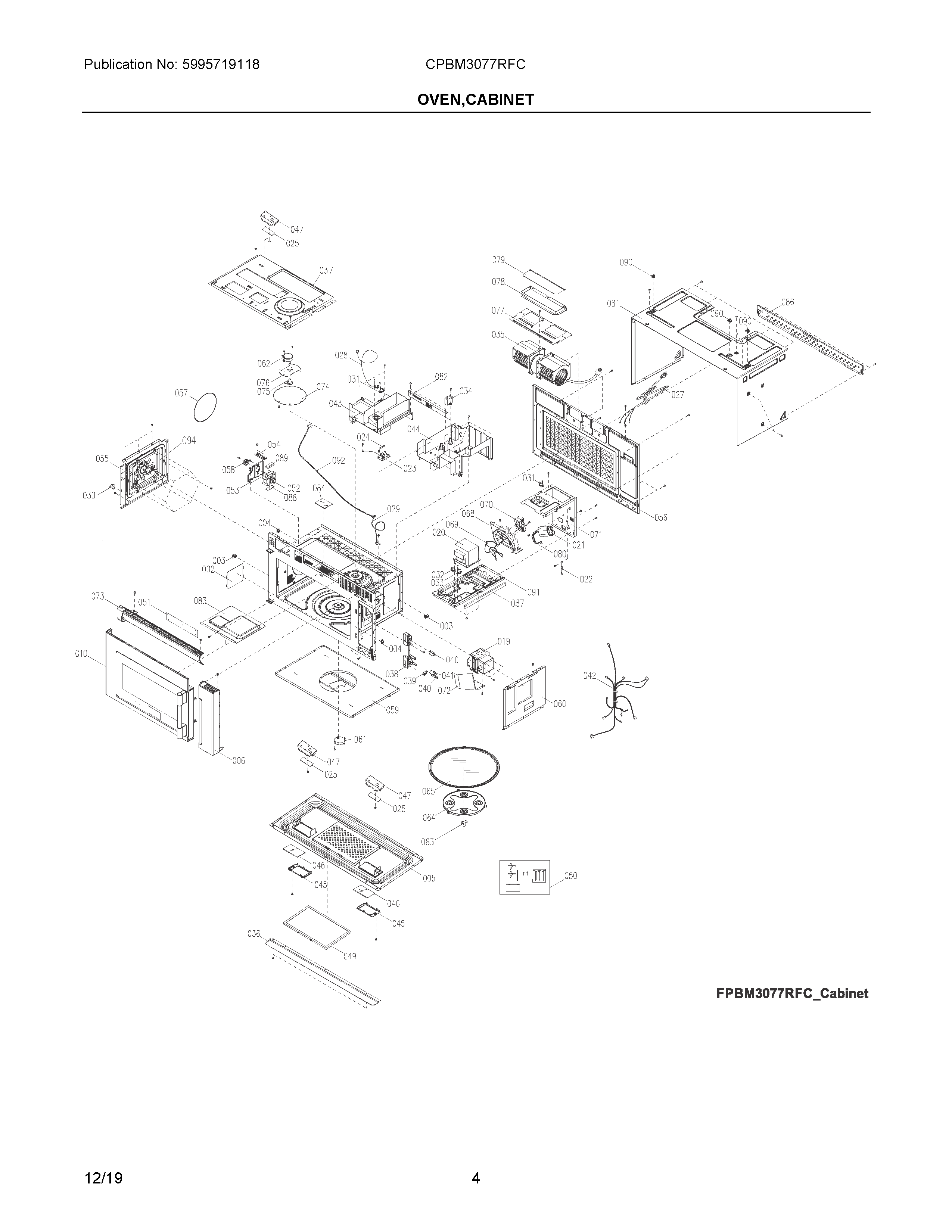

CPBM3077RFC 02 – OVEN,CABINET

Products

PositionProduct
25304509435 Frigidaire Microwave Waveguide Cover
35304514283 Frigidaire Microwave Support
45304488342 Frigidaire Microwave Support Assembly
55304499574 Frigidaire Microwave Base
65304521572 Frigidaire Microwave Control Assembly
105304504071 Frigidaire Microwave Door Assembly, Stainless, With PC
19WCI 5304493801
205304515184 Frigidaire Microwave Transformer
21WCI 5304493802
22WCI 5304488358
235304509452 Frigidaire Microwave Filter
245304517874 Frigidaire Fuse
255304517872 Frigidaire Microwave Lamp
27WCI 5304521578
285304509652 Frigidaire Microwave Sensor
295304488361 Frigidaire Microwave Thermistor Assembly
305304515313 Frigidaire Microwave Thermostat
315304513461 Frigidaire Microwave Thermostat
325304513462 Frigidaire Microwave Thermostat
335304513463 Frigidaire Microwave Thermostat
34CAPACITOR, START
355304513464 Frigidaire Microwave Fan Assembly
365304504074 Frigidaire Microwave Shield
37WCI 5304521579
38LATCH HOOK
395304509458 Frigidaire Microwave Lever Assembly
405304521580 Frigidaire Microwave Switch
415304509459 Frigidaire Microwave Micro Switch
42WIRING HARNESS, MAIN
435304488371 Frigidaire Duct
44WCI 5304488372
455304481505 Frigidaire Microwave Frame
465304464103 Frigidaire Microwave Lens
475304509442 Frigidaire Microwave Cover
495304513468 Frigidaire Microwave Filter Grease
505304491760 Frigidaire Microwave Mounting Kit
515304513470 Frigidaire Microwave Filter
525304488380 Frigidaire Microwave Motor
535304488381 Frigidaire Bracket
545304488382 Frigidaire Microwave Connector
555304521581 Frigidaire Microwave Fan Assembly
56WCI 5304488384
575304502502 Frigidaire Microwave Belt
585304488386 Frigidaire Microwave Pulley
59WCI 5304521582
605304488388 Frigidaire Panel
615304521583 Frigidaire Microwave Motor
625304521584 Frigidaire Motor
635304513472 Frigidaire Glass Tray Drive Coupling
645304518907 Frigidaire Microwave Rotating Ring
655304513473 Frigidaire Microwave Tray
685304488393 Frigidaire Microwave Duct Assembly
695304509473 Frigidaire Microwave Fan Blade
705304499602 Frigidaire Microwave Blower Fan Motor
715304488463 Frigidaire Duct
725304488464 Frigidaire Deflector
735304513480 Frigidaire Air Grille Assembly
745304488415 Frigidaire Microwave Cover
755304509650 Frigidaire Microwave Shaft Assembly
765304509649 Frigidaire Microwave Blade Fan
775304488418 Frigidaire Microwave Cover Assembly
785304509485 Frigidaire Microwave Vent Damper
795304509486 Frigidaire Microwave Vent Damper
805304488419 Frigidaire Microwave Retainer Assembly
815304488420 Frigidaire Microwave Cabinet
825304488421 Frigidaire Shield
835304488422 Frigidaire COVER
845304488423 Frigidaire Microwave Lens
865304509487 Frigidaire Microwave Mounting Bracket
875304491603 Frigidaire Cushion
885304491604 Frigidaire PAD
895304491605 Frigidaire PAD
905304509436 Frigidaire Microwave Mounting Nut Kit
915304488424 Frigidaire Microwave Base
925304504073 Frigidaire Microwave Wire
94WCI 5304500288
