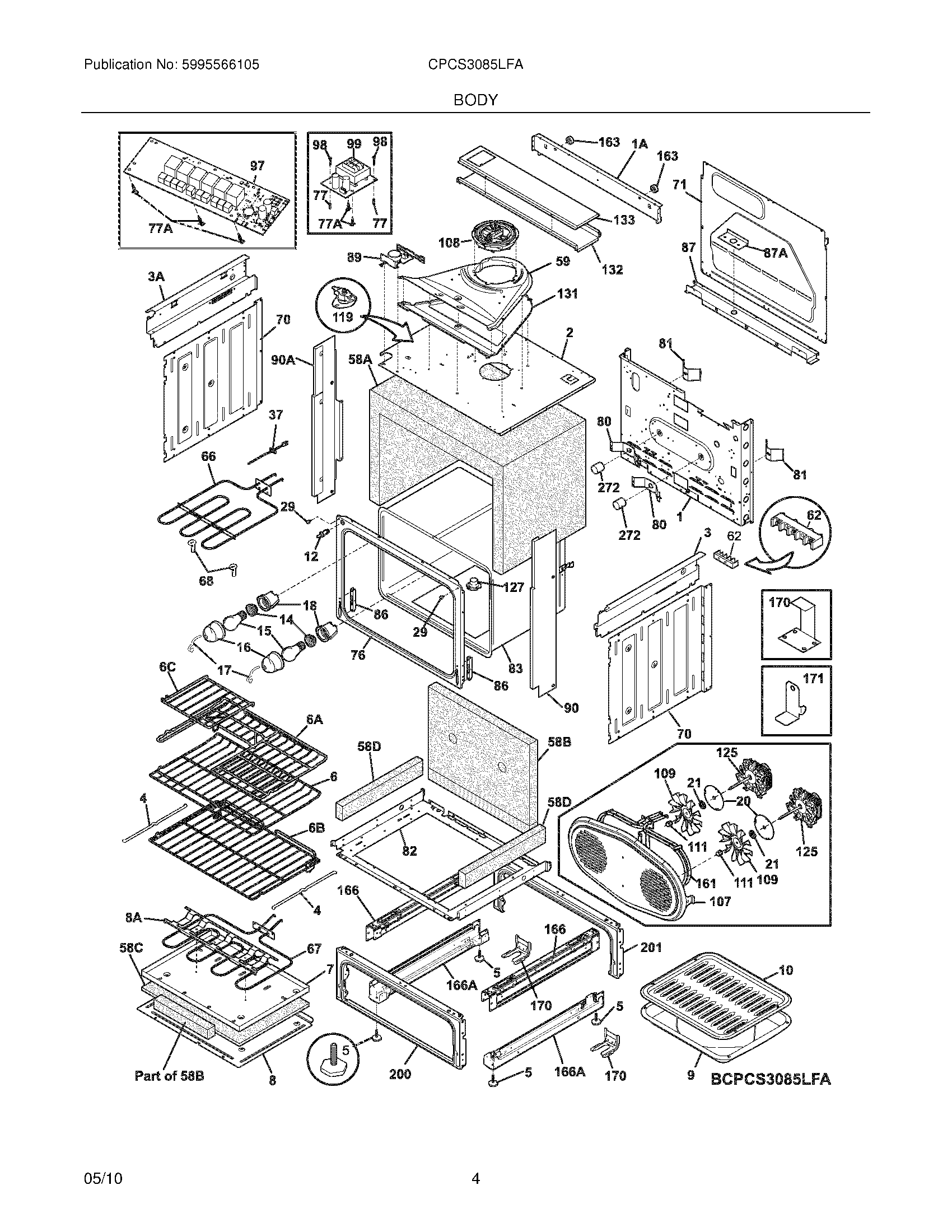

CPCS3085LFA 05 – BODY

CPCS3085LFA 05 – BODY

Written by

in

CPCS3085LFA 05 – BODY

Products

PositionProduct
NIWCI 318384497
NIScrew,No.8-18 x 3/8 ,(10)
NI5304461333 Frigidaire Oven Screw
NI318531701 Frigidaire Spacer
NI318264200 Frigidaire Oven Plate
NI5304517813 Frigidaire Harness
NI5303323129 Frigidaire Oven Screw
NISCREW-SHOULDER
NIWCI 5304400192
NIWCI 318368501
NIWCI 318578311
NIWCI 5304440988
NI5303211311 Frigidaire Refrigerator Screw
NI316205500 Frigidaire Oven Nut
NI5303323277 Frigidaire Oven Screw
NI08002868 Frigidaire 0 Screw Assembly
NI5304436875 Frigidaire Oven Screw
NI5304415832 Frigidaire Oven Screw
NI5304480396 Frigidaire Screw
NI5303323139 Frigidaire Oven Screw
NI5303324184 Frigidaire Wall Oven Range Screw
1WCI 318259224
1AWCI 318225113
2WCI 318570500
3WCI 318225218
3AWCI 318225219
4WCI 318927600
5Screw,leveling ,w/tee nut
6BWCI 318921600
6318922301 Frigidaire Oven Rack
6CWCI 318929702
6AWCI 318926803
7318297303 Frigidaire Oven Box
8318359500 Frigidaire Oven Panel
8A318313601 Frigidaire Oven Bracket
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
18WCI 318222400
20WCI 318389400
21318389000 Frigidaire Oven Seal
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
58AWCI 318386113
58BWCI 318405900
58C318294912 Frigidaire Insullation
58D318372018 Frigidaire Insulation
59WCI 318570600
625304409888 Frigidaire Oven Terminal Block with Hardware
66WCI 318255801
67318254916 Frigidaire Oven Range Bake Element
685304403015 Frigidaire Oven Support
70WCI 318259105
71WCI 318260007
76WCI 318056292
77Spacer,control
77A316114100 Frigidaire Oven Spacer
80WCI 5303320846
81WCI 318192400
82WCI 318258770
83WCI 318261452
86318561100 Frigidaire Receptacle
87AWCI 318111806
87BRACKET, CABLE MTG.
89318261229 Frigidaire Oven Motor
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
97WCI 318388400
985304401490 Frigidaire Oven Screw
99316435703 Frigidaire Oven Board
107WCI 318550200
108318575600 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119WCI 318578502
1255304463302 Frigidaire Convection Motor
127WCI 318317104
131WCI 318574800
132WCI 318404700
133WCI 318404702
161WCI 318535300
163Spacer,(4)
166WCI 318298403
166318298410 Frigidaire Oven Bracket
170WCI 318335700
171318335200 Frigidaire Oven Bracket
200WCI 318298226
201318298233 Frigidaire Oven Frame
272WCI 318249409
