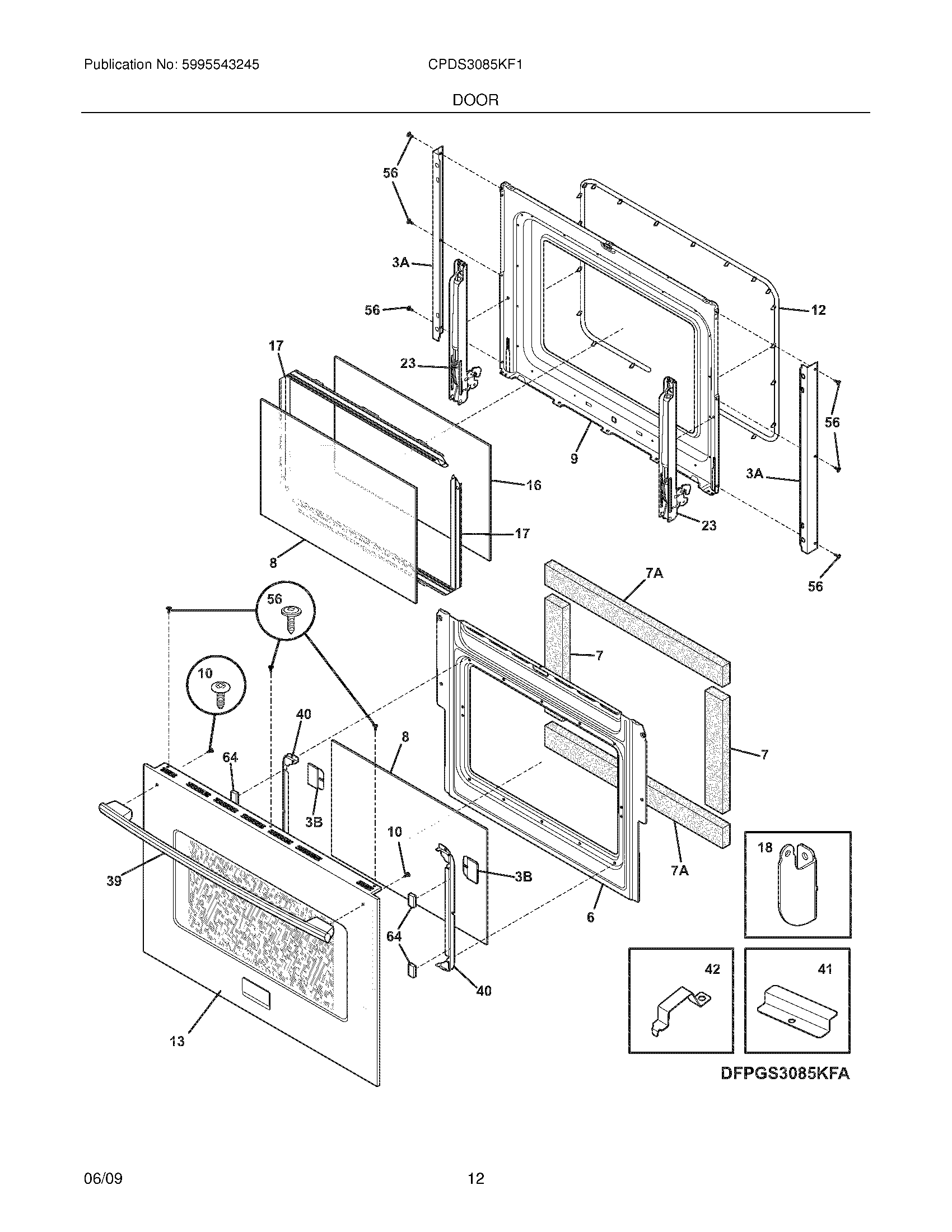

CPDS3085KF1 11 – DOOR

Products

Position	Product
NI	5303300265 Frigidaire Oven Screw
NI	WCI 316221002
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5304461333 Frigidaire Oven Screw
3B	318262104 Frigidaire Oven Cover
3A	WCI 318260401
6	WCI 318260522
7A	318372016 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	WCI 318411610
10	WCI 5304472906
12	318053132 Frigidaire Oven Gasket
13	WCI 318927800
16	WCI 318212210
17	318264733 Frigidaire Oven Spacer
18	WCI 316547900
23	Hinge,oven door ,(2)
39	WCI 316551500
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
56	5304436875 Frigidaire Oven Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
