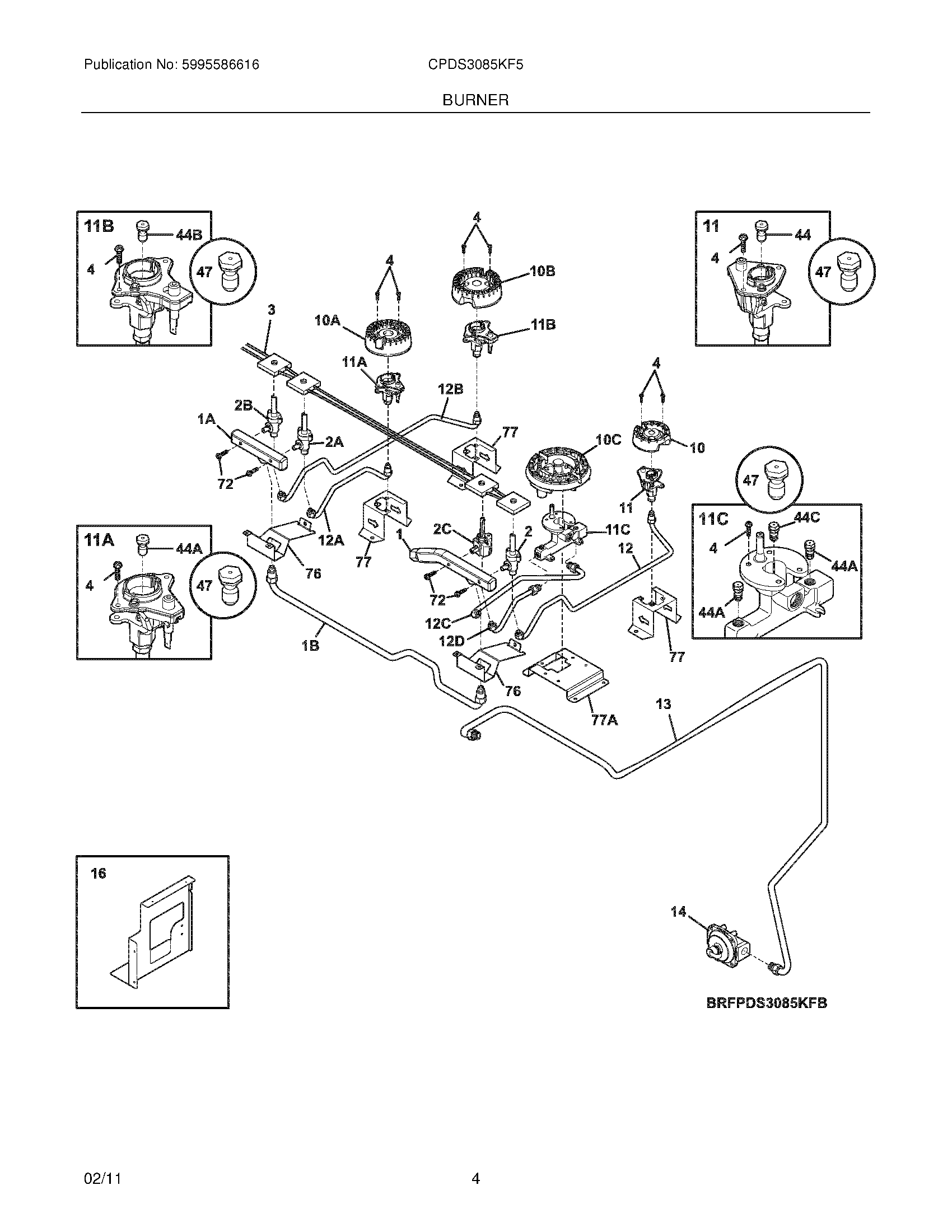

CPDS3085KF5 05 – BURNER

CPDS3085KF5 05 – BURNER

Written by

in

CPDS3085KF5 05 – BURNER

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NI318199776 Frigidaire Electrical Harness
NI5304480396 Frigidaire Screw
1WCI 318913400
1BWCI 318913500
1AWCI 318907200
2CWCI 316412513
2WCI 318915700
2AWCI 318915701
2BWCI 318915703
3WCI 318232659
4316240600 Frigidaire Igniter Mounting Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10C316440300 Frigidaire Burner Assembly
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11316540800 Frigidaire Igniter/Orifice Assembly
11C316440100 Frigidaire Igniter and Orifice Assembly
11B316543206 Frigidaire Igniter Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
12WCI 318916800
12A318916500 Frigidaire Oven Tube
12B318916600 Frigidaire Oven Tube
12CWCI 318928100
12DWCI 318928200
13WCI 318913600
14318122721 Frigidaire Oven Regulator
16WCI 318590003
44C316527514 Frigidaire Oven Orifice Assembly
44316527504 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
44B316527513 Frigidaire Oven Orifice
47318565406 Frigidaire Kit Conversion
72316215600 Frigidaire Oven Screw
76WCI 318906703
77WCI 318920300
77AWCI 318384103
