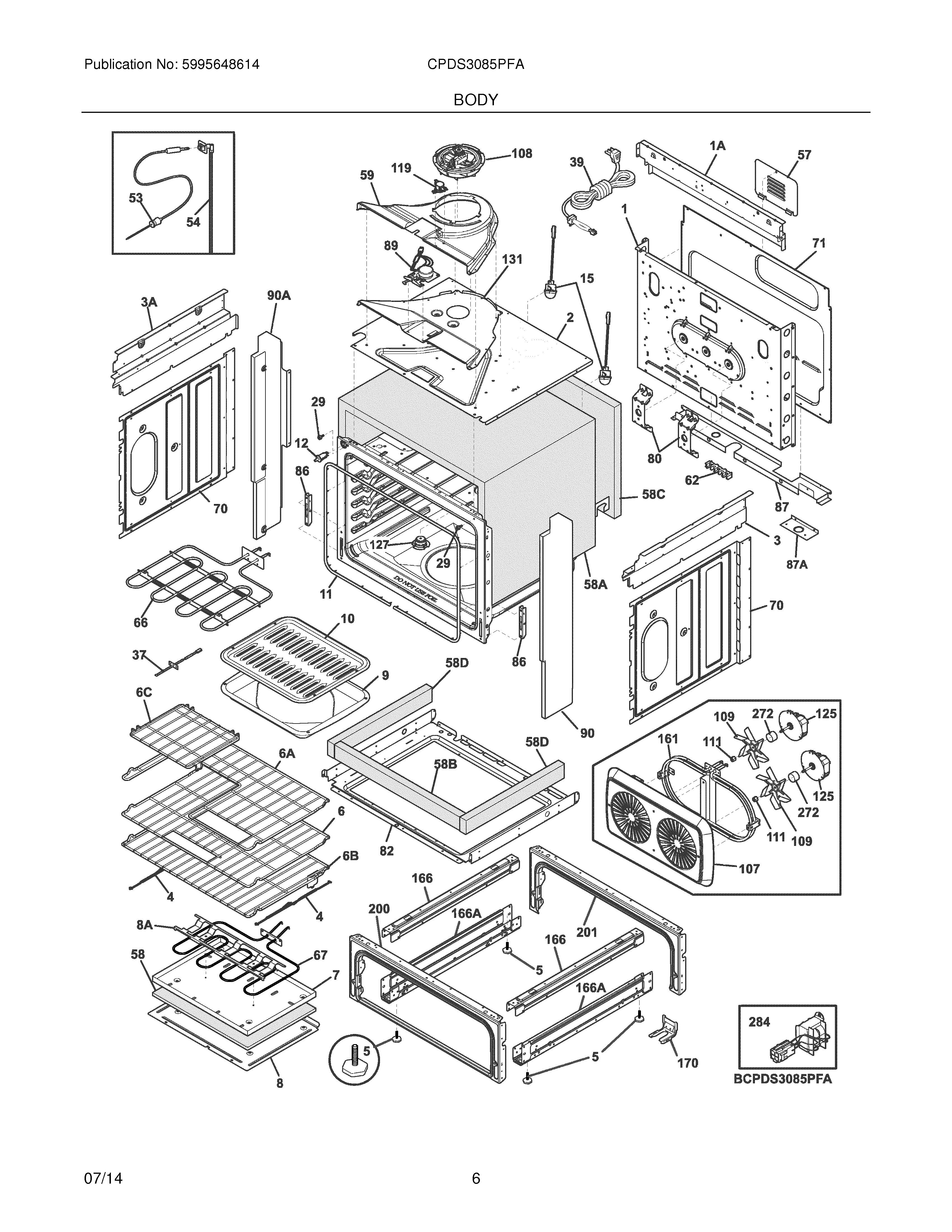

CPDS3085PFA 07 – BODY

CPDS3085PFA 07 – BODY

Written by

in

CPDS3085PFA 07 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 318579001
NI316418900 Frigidaire Oven Screw
NI318235301 Frigidaire Assembly Connector
NI318946500 Frigidaire Oven Light Bulb Range/Wall
NI316303501 Frigidaire Assembly Harness
NI318264200 Frigidaire Oven Plate
NIWCI 5304497427
NIWCI 316581300
NI316205500 Frigidaire Oven Nut
NI5303289910 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
1A139004600 Frigidaire Oven Panel
1139017306 Frigidaire Oven Panel
2139078200 Frigidaire Shield
3WCI 318225230
3AWCI 318225231
4WCI 318927600
5Screw,leveling ,w/tee nut
6CRACK INSERT, HALF RACK
65304514983 Frigidaire Oven Rack
6B139013101 Frigidaire Oven Rack
6ARACK, OVEN, HALF, W/HANDLE
7318297303 Frigidaire Oven Box
8318359500 Frigidaire Oven Panel
8A318313601 Frigidaire Oven Bracket
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
39WCI 318113111
535304504202 Frigidaire Red Meat Temperature Probe
54139017201 Frigidaire Assembly Receptacle
57316283600 Frigidaire Oven Cover
58CWCI 139020201
58D139020301 Frigidaire INSULATION
58BWCI 139020300
58318294912 Frigidaire Insullation
58AINSULATION, WRAPPER, TOP & SIDES
59139078002 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304521880 Frigidaire Element
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
82139008201 Frigidaire Shield
86318561100 Frigidaire Receptacle
87BRACKET, CABLE MTG.
87AWCI 318111806
895304528836 Frigidaire Motor
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
107COVER, DUAL FAN, CONVECTION
107807597603 Frigidaire Oven Screw
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
125139008500 Frigidaire Oven Motor
127139042600 Frigidaire Tube Assembly
131139078102 Frigidaire Oven Duct
1615304522063 Frigidaire Element
166318298410 Frigidaire Oven Bracket
166WCI 318298403
1705304486410 Frigidaire Oven Kit
200WCI 318298226
201318298233 Frigidaire Oven Frame
272139021700 Frigidaire Oven Tube
284316536100 Frigidaire Transformer
