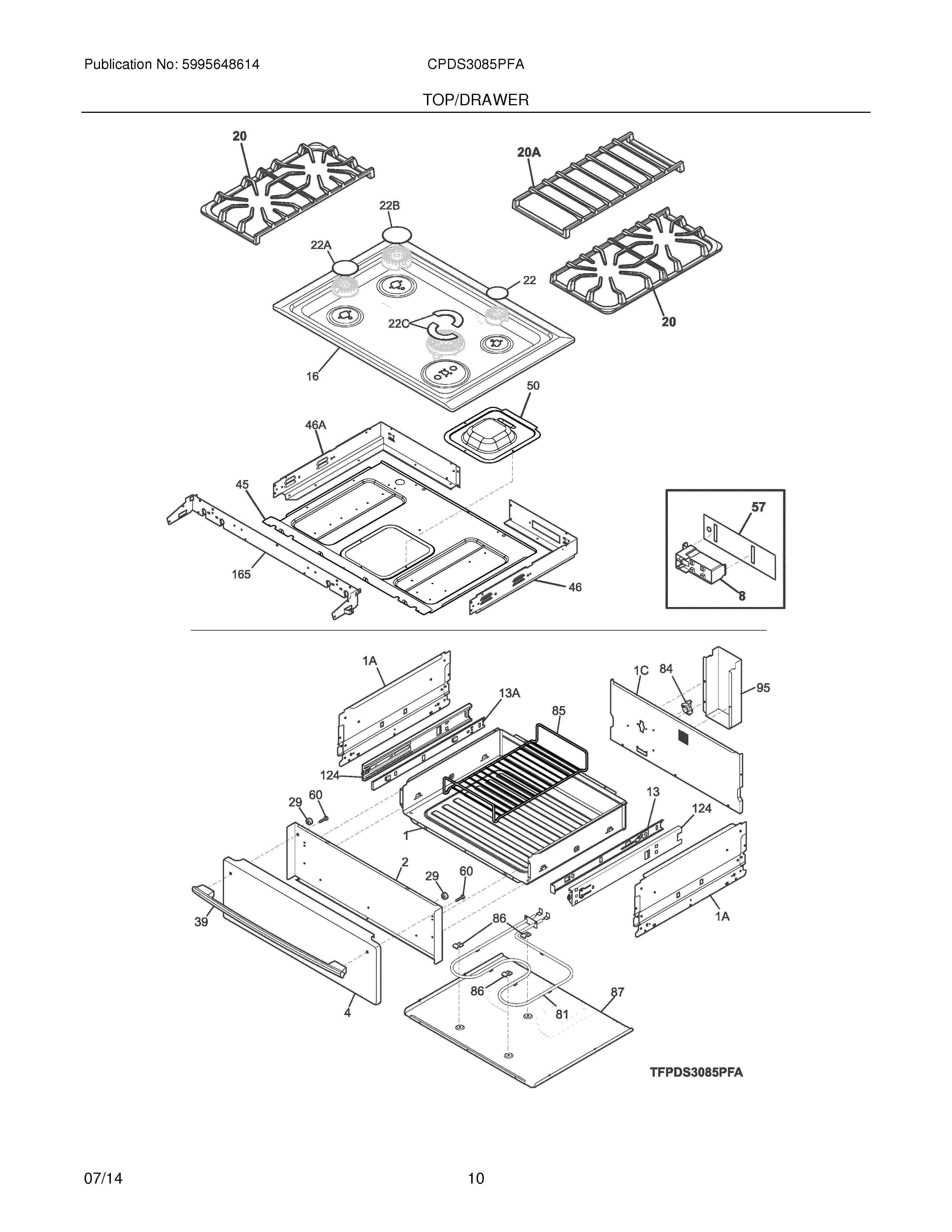

CPDS3085PFA 09 – TOP/DRAWER

CPDS3085PFA 09 – TOP/DRAWER

Written by

in

CPDS3085PFA 09 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI318291505 Frigidaire Plate
NI316021109 Frigidaire Oven Screw
1WCI 318304404
1A318300003 Frigidaire Oven Panel
1CPANEL, WARMER DRAWER, REAR
2WCI 318303907
4318298829 Frigidaire Oven Panel
8808608802 Frigidaire Oven Spark Ignition Four Pole
13WCI 318259509
13AWCI 318259508
16WCI 318569033
205304493357 Frigidaire Grate
20A5304490871 Frigidaire Grate
22A5304508442 Frigidaire Oven Surface Burner Cap
22C316262204 Frigidaire Oven Cap
22CAP
22B5304508443 Frigidaire Oven Surface Burner Cap
29318147430 Frigidaire Oven Bumper
39WCI 316551500
45WCI 318578700
46AWCI 318568201
46WCI 318568200
50PANEL, SERVICE, FAN
57318295611 Frigidaire Panel
60WCI 5304472906
81318255301 Frigidaire Oven Element
84318005108 Frigidaire Thermostat
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87318300102 Frigidaire Oven Panel
95139008401 Frigidaire Oven Shield
124316105501 Frigidaire P-1 Glide
165WCI 318913300
