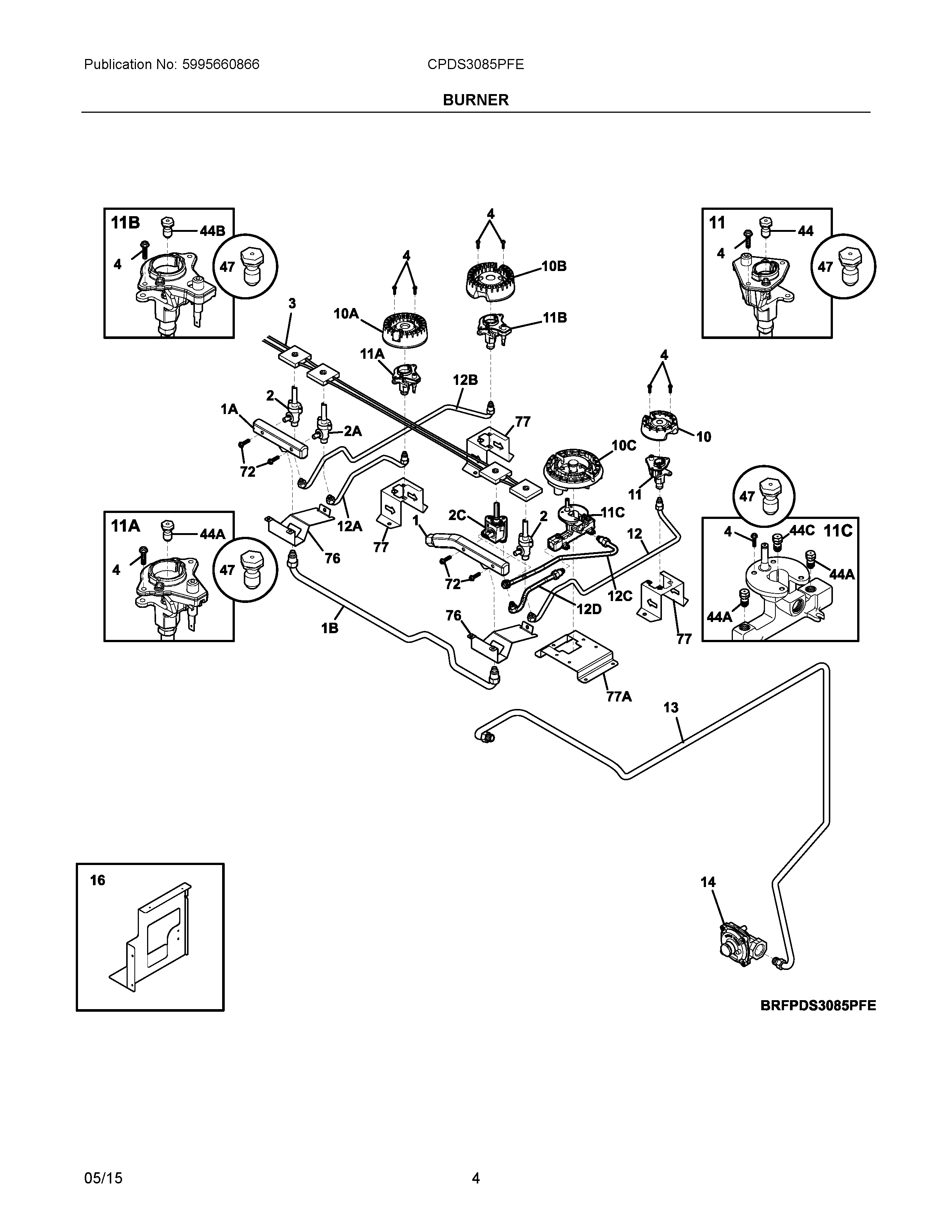

CPDS3085PFE 03 – BURNER

Products

Position	Product
NIA	316021104 Frigidaire Oven Screw Assembly
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316566901 Frigidaire Oven Sleeve
NI	318199776 Frigidaire Electrical Harness
1B	WCI 318913500
1	WCI 318913400
1A	WCI 318907200
2C	316412515 Frigidaire Oven Valve
2A	WCI 318915701
2	WCI 318915704
3	WCI 318232659
4	316240600 Frigidaire Igniter Mounting Screw
10	316438200 Frigidaire Range Sealed Burner, 5K
10C	316440300 Frigidaire Burner Assembly
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
10B	316438600 Frigidaire Range Sealed Burner, 14K
11A	316540700 Frigidaire Igniter/Orifice Assembly
11C	316440100 Frigidaire Igniter and Orifice Assembly
11	316540800 Frigidaire Igniter/Orifice Assembly
11B	316543206 Frigidaire Igniter Orifice Assembly
12B	318916600 Frigidaire Oven Tube
12A	318916500 Frigidaire Oven Tube
12	WCI 318916800
12C	WCI 318928100
12D	WCI 318928200
13	WCI 318913600
14	318122721 Frigidaire Oven Regulator
16	WCI 318590003
44	316527504 Frigidaire Oven Orifice
44C	316527514 Frigidaire Oven Orifice Assembly
44B	316527513 Frigidaire Oven Orifice
44A	316527500 Frigidaire Oven Burner Orifice
47	318565406 Frigidaire Kit Conversion
72	316215600 Frigidaire Oven Screw
76	WCI 318906703
77A	WCI 318384103
77	WCI 318920300
