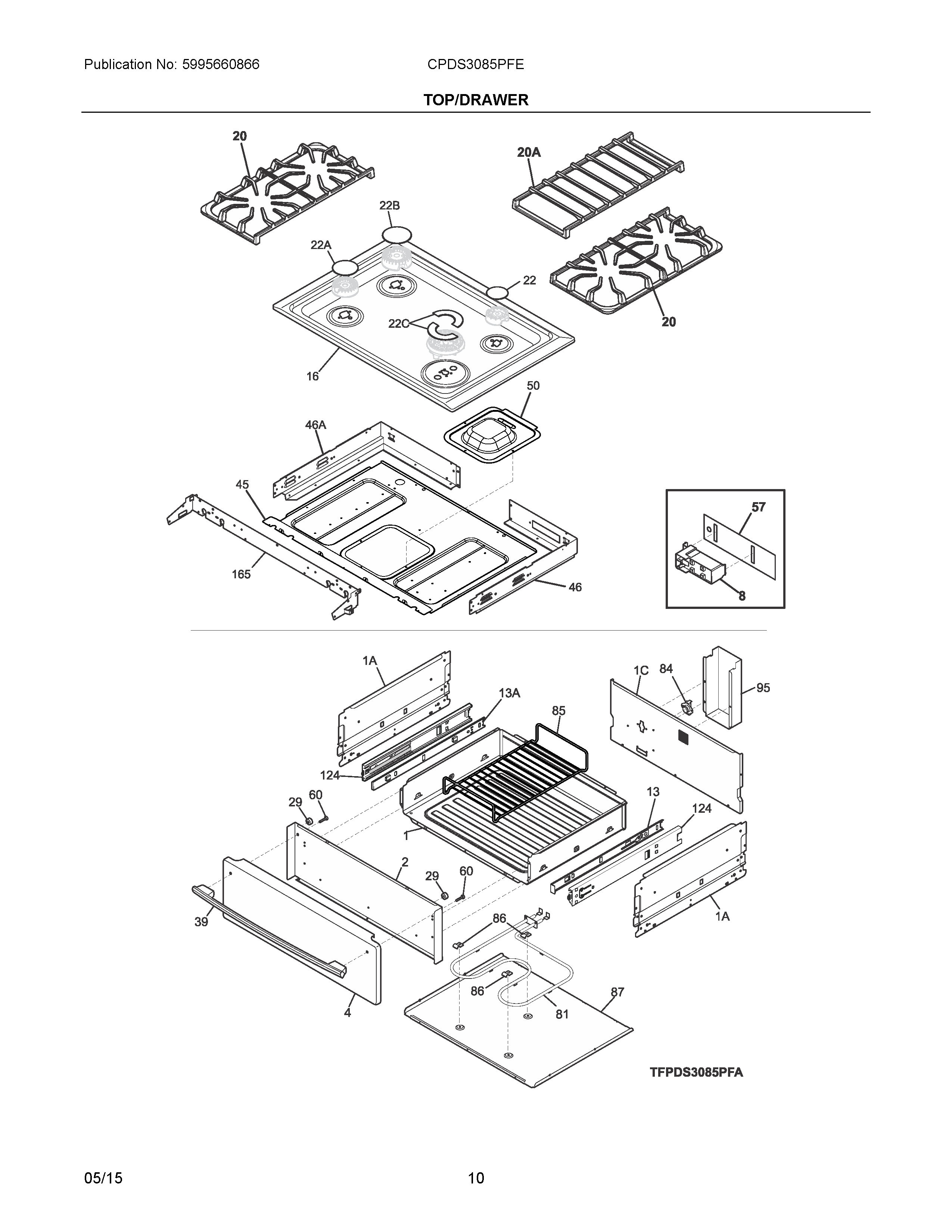

CPDS3085PFE 05 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	318291505 Frigidaire Plate
NI	316021109 Frigidaire Oven Screw
1	WCI 318304404
1A	318300003 Frigidaire Oven Panel
1C	PANEL, WARMER DRAWER, REAR
2	WCI 318303907
4	318298829 Frigidaire Oven Panel
8	808608802 Frigidaire Oven Spark Ignition Four Pole
13	WCI 318259509
13A	WCI 318259508
16	WCI 318569033
20A	5304490871 Frigidaire Grate
20	5304493357 Frigidaire Grate
22A	5304508442 Frigidaire Oven Surface Burner Cap
22	CAP
22C	316262204 Frigidaire Oven Cap
22B	5304508443 Frigidaire Oven Surface Burner Cap
29	318147430 Frigidaire Oven Bumper
39	HANDLE, DOOR/DRAWER, STAINLESS
45	WCI 318578700
46	WCI 318568200
46A	WCI 318568201
50	PANEL, SERVICE, FAN
57	318295611 Frigidaire Panel
60	WCI 5304472906
81	318255301 Frigidaire Oven Element
84	318005108 Frigidaire Thermostat
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	318300102 Frigidaire Oven Panel
95	139008401 Frigidaire Oven Shield
124	316105501 Frigidaire P-1 Glide
165	WCI 318913300
