CPEB30T9DC2 05 – UPPER OVEN

CPEB30T9DC2 05 – UPPER OVEN

Written by

in

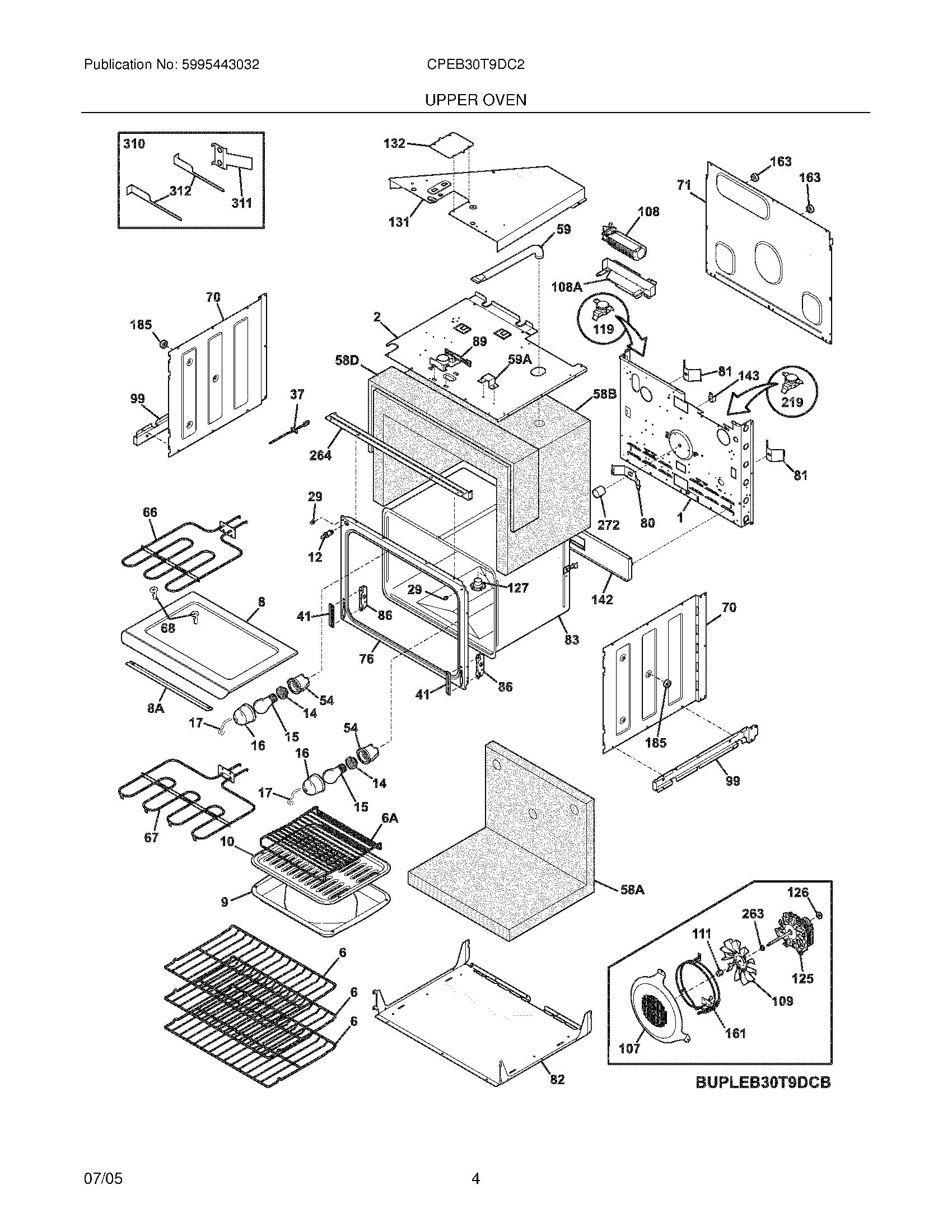

CPEB30T9DC2 05 – UPPER OVEN

Products

PositionProduct
NIWCI 318231705
NI5303211311 Frigidaire Refrigerator Screw
NI3201861 Frigidaire Screw
NIWCI 318268099
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304436875 Frigidaire Oven Screw
NI5303323277 Frigidaire Oven Screw
NI5303300265 Frigidaire Oven Screw
1WCI 318259202
2WCI 318258900
6AWCI 318219500
6WCI 318262503
8WCI 318262001
8AWCI 318318600
9WCI 5303317977
10WCI 5303317976
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29318147430 Frigidaire Oven Bumper
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 318222400
58AWCI 318285055
58BWCI 318285056
58DWCI 318285058
59AWCI 318261600
66318255605 Frigidaire Oven Broil Element Range
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260007
76WCI 318056217
80WCI 5303320846
81WCI 318192400
82WCI 318258707
83WCI 318261400
86WCI 5303310524
89318261230 Frigidaire Oven Motor
99WCI 318252800
107WCI 318219401
108WCI 318251300
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
1255304467898 Frigidaire Oven Kit Assembly
126Washer,motor ,RH ,convection
127318317100 Frigidaire Adapter Assembly
131WCI 318272900
132318003000 Frigidaire Plate
142WCI 318123910
143318172904 Frigidaire Bracket
161318255504 Frigidaire Oven Element
163WCI 318014111
185318531800 Frigidaire Oven Spacer
219318003614 Frigidaire Thermostat
263316008401 Frigidaire Washer P-1
264WCI 318257701
272WCI 318249401
310WCI 5304440067
3115304438005 Frigidaire Oven Screw
311WCI 318246010
312318246703 Frigidaire Tool
312318246702 Frigidaire Tool Appliance
