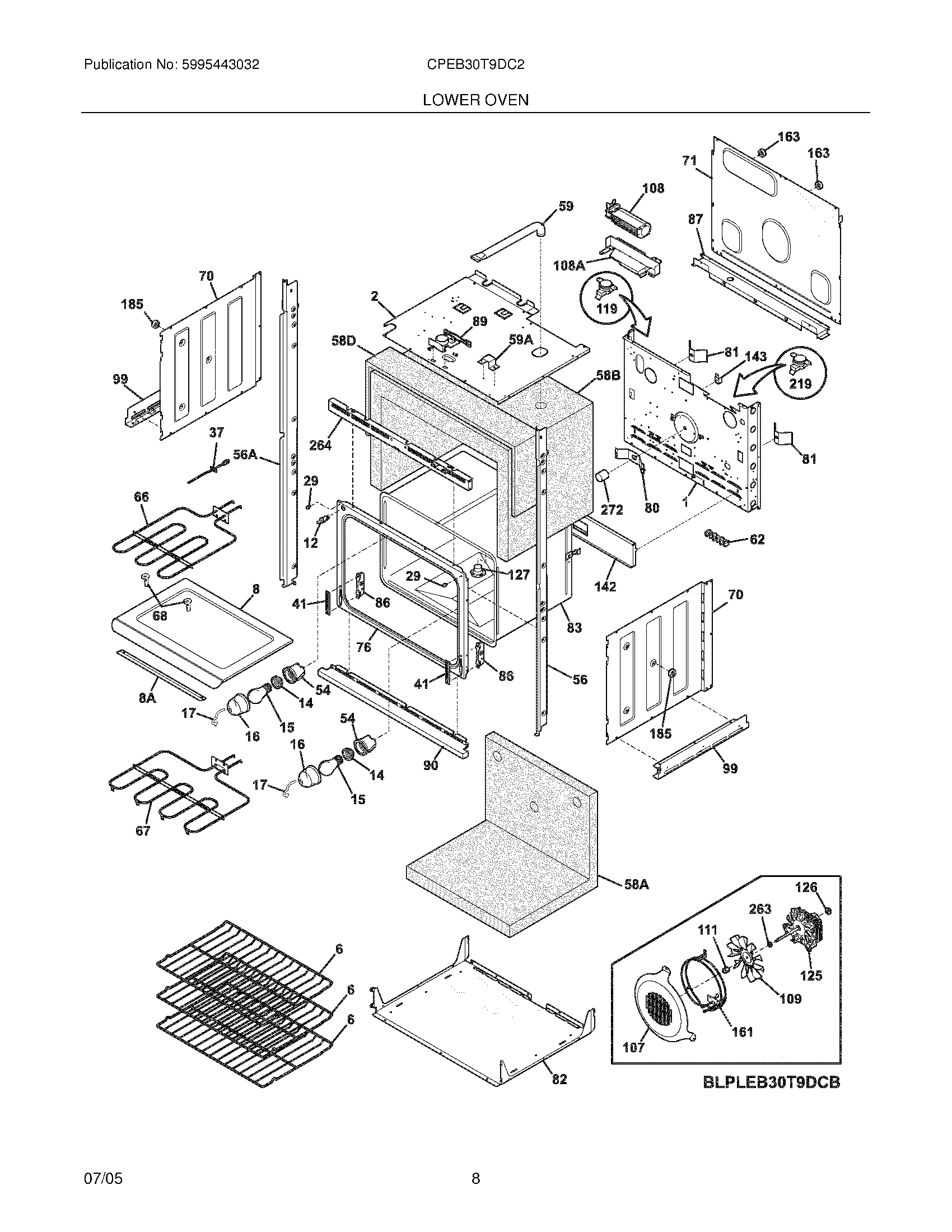

CPEB30T9DC2 07 – LOWER OVEN

CPEB30T9DC2 07 – LOWER OVEN

Written by

in

CPEB30T9DC2 07 – LOWER OVEN

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NI3201861 Frigidaire Screw
NI5304506955 Frigidaire Harness Assembly
NIWCI 318231705
NI5303211311 Frigidaire Refrigerator Screw
NI316205500 Frigidaire Oven Nut
NI5304480396 Frigidaire Screw
NI5303323139 Frigidaire Oven Screw
NIWCI 318231742
NI5304436875 Frigidaire Oven Screw
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 318268099
NI5303323277 Frigidaire Oven Screw
1WCI 318259202
2WCI 318258900
6WCI 318262503
8AWCI 318318600
8WCI 318262001
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29318147430 Frigidaire Oven Bumper
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 318222400
56318903676 Frigidaire Oven Trim
56AWCI 318259915
58BWCI 318285056
58DWCI 318285058
58AWCI 318285055
59AWCI 318261600
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260007
76WCI 318056217
80WCI 5303320846
81WCI 318192400
82WCI 318258707
83WCI 318261400
86WCI 5303310524
87WCI 318260600
89318261230 Frigidaire Oven Motor
90WCI 318259802
99318256201 Frigidaire Oven Bracket
107WCI 318219401
108318073028 Frigidaire Oven Motor
108WCI 318251300
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
1255304467898 Frigidaire Oven Kit Assembly
126Washer,motor ,RH ,convection
127318317100 Frigidaire Adapter Assembly
142WCI 318123910
143318172904 Frigidaire Bracket
161318255504 Frigidaire Oven Element
163WCI 318014111
185318531800 Frigidaire Oven Spacer
219318003614 Frigidaire Thermostat
263316008401 Frigidaire Washer P-1
264WCI 318257801
272WCI 318249401
