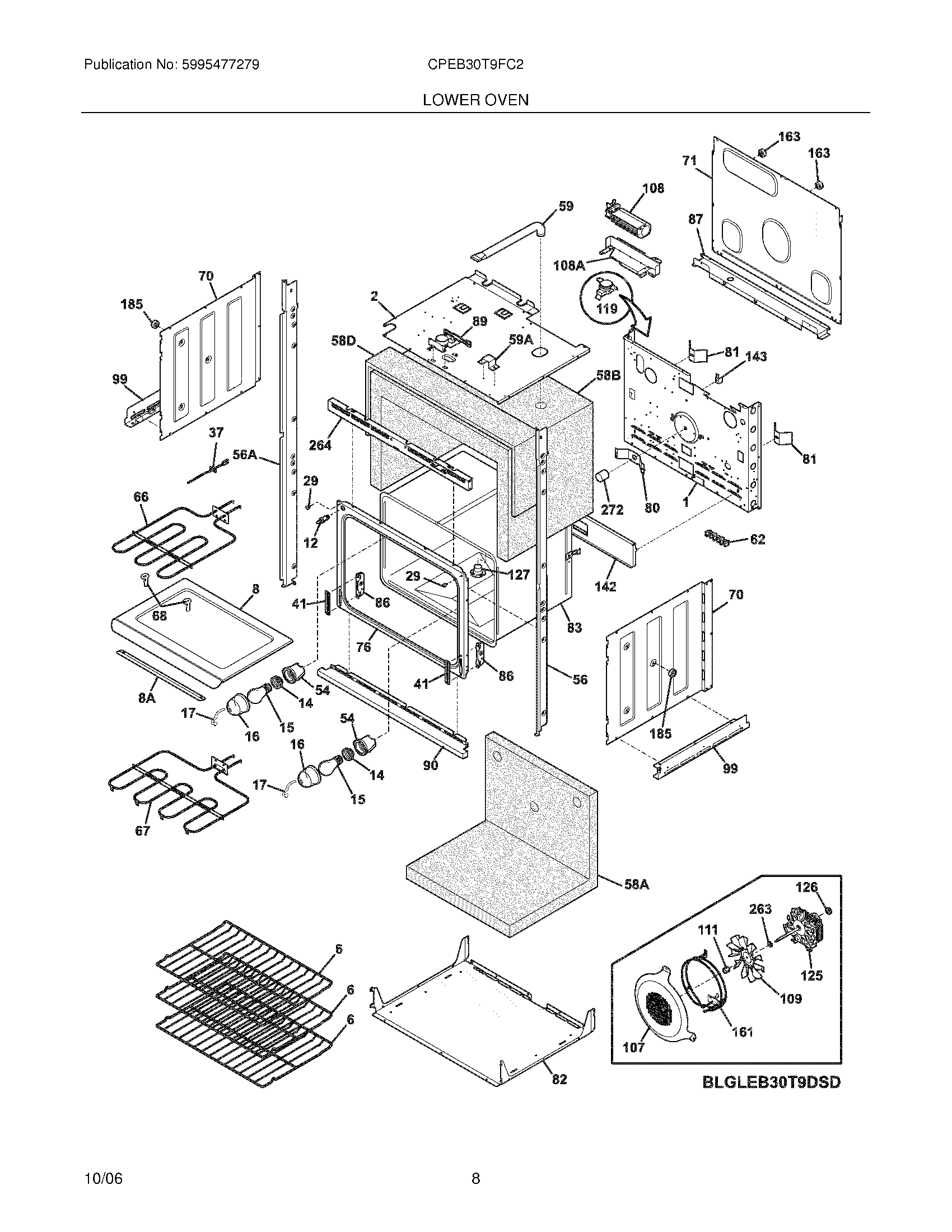

CPEB30T9FC2 07 – LOWER OVEN

CPEB30T9FC2 07 – LOWER OVEN

Written by

in

CPEB30T9FC2 07 – LOWER OVEN

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NIWCI 318231748
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318340200
NI5303324184 Frigidaire Wall Oven Range Screw
NI316205500 Frigidaire Oven Nut
NI5304480396 Frigidaire Screw
NI5303323139 Frigidaire Oven Screw
NI5303325980 Frigidaire Oven Screw
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 318199744
NIWCI 318199746
NIWCI 318231750
NIWCI 318268099
NI5303323277 Frigidaire Oven Screw
NI5304436875 Frigidaire Oven Screw
1WCI 318259204
2WCI 318258902
6WCI 318345208
8AWCI 318318600
8WCI 318262001
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29318147430 Frigidaire Oven Bumper
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 318222400
56AWCI 318259915
56318903676 Frigidaire Oven Trim
58DWCI 318285058
58BWCI 318285056
58AWCI 318285055
59AWCI 318261600
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260007
76WCI 318056217
80WCI 5303320846
81WCI 318192400
82WCI 318258707
83WCI 318261400
86WCI 318342400
87WCI 318260600
89318261229 Frigidaire Oven Motor
90WCI 318259803
99318256201 Frigidaire Oven Bracket
107WCI 318219401
108WCI 318251300
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
125WCI 5303316994
1255304467898 Frigidaire Oven Kit Assembly
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
142WCI 318123910
143318172904 Frigidaire Bracket
161318255504 Frigidaire Oven Element
163WCI 318014111
185318531800 Frigidaire Oven Spacer
263316008401 Frigidaire Washer P-1
264WCI 318257701
272WCI 318249401
