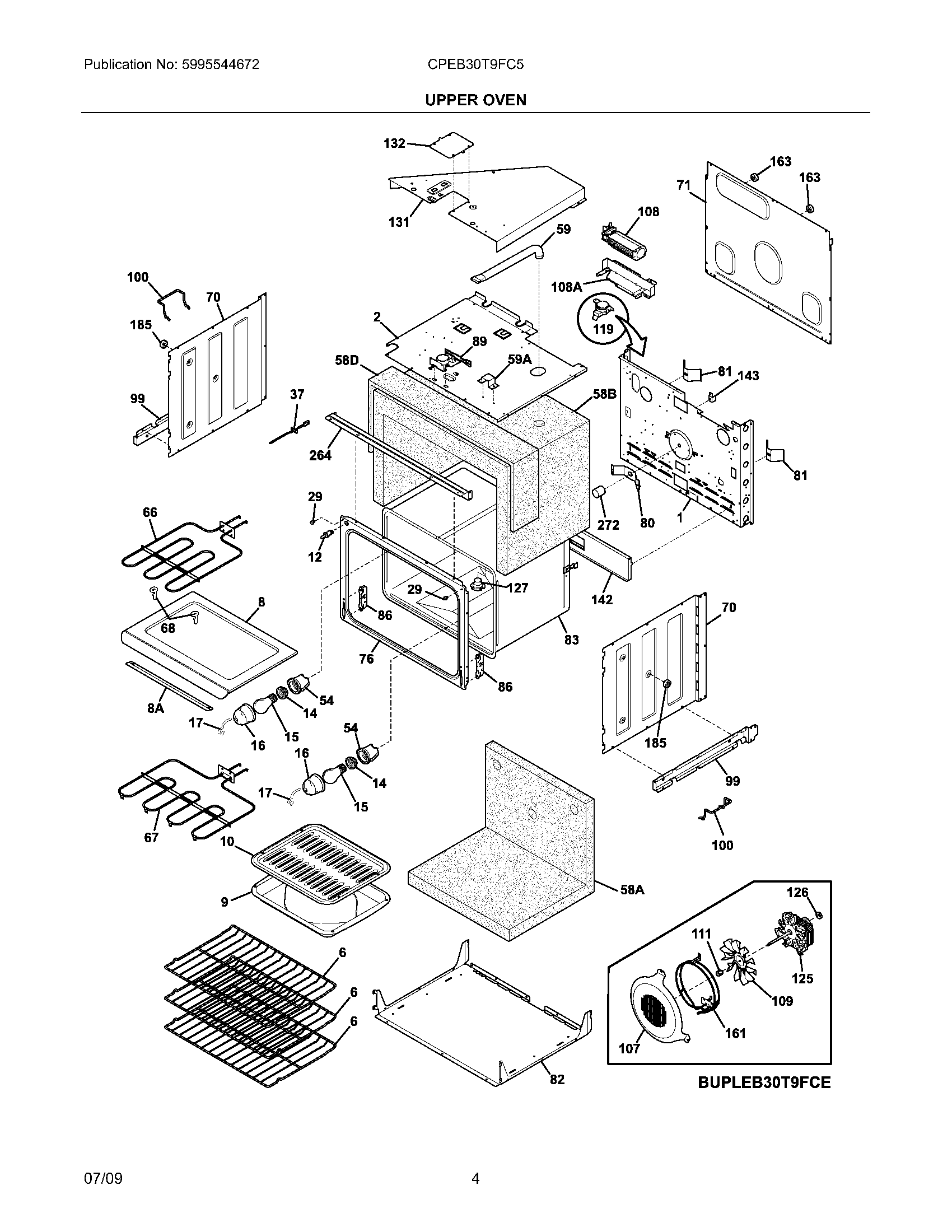

CPEB30T9FC5 05 – UPPER OVEN

CPEB30T9FC5 05 – UPPER OVEN

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NIWCI 5304400192
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIWCI 318294903
NIWCI 318199768
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318199787
NI5304461333 Frigidaire Oven Screw
NIWCI 318402206
NI5303323277 Frigidaire Oven Screw
NI5304436875 Frigidaire Oven Screw
NIWCI 318340201
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 318268099
NIWCI 318231869
1WCI 318259220
2WCI 318258902
6WCI 318345214
8AWCI 318318600
8WCI 318262001
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
54WCI 318222400
58AWCI 318386100
58DWCI 318372006
58BInsulation,oven wrapper ,back/bottom
59AWCI 318261600
66318255605 Frigidaire Oven Broil Element Range
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258707
83WCI 318261400
86318561100 Frigidaire Receptacle
89318261229 Frigidaire Oven Motor
99WCI 318252804
100WCI 318410300
107WCI 318219405
108WCI 318251300
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
1255304467898 Frigidaire Oven Kit Assembly
126Washer,motor ,RH ,convection
127318317100 Frigidaire Adapter Assembly
131WCI 318272901
132318003000 Frigidaire Plate
142WCI 318123910
143318172904 Frigidaire Bracket
161318255504 Frigidaire Oven Element
163Spacer,(4)
185318531800 Frigidaire Oven Spacer
264WCI 318257701
272WCI 318249403
