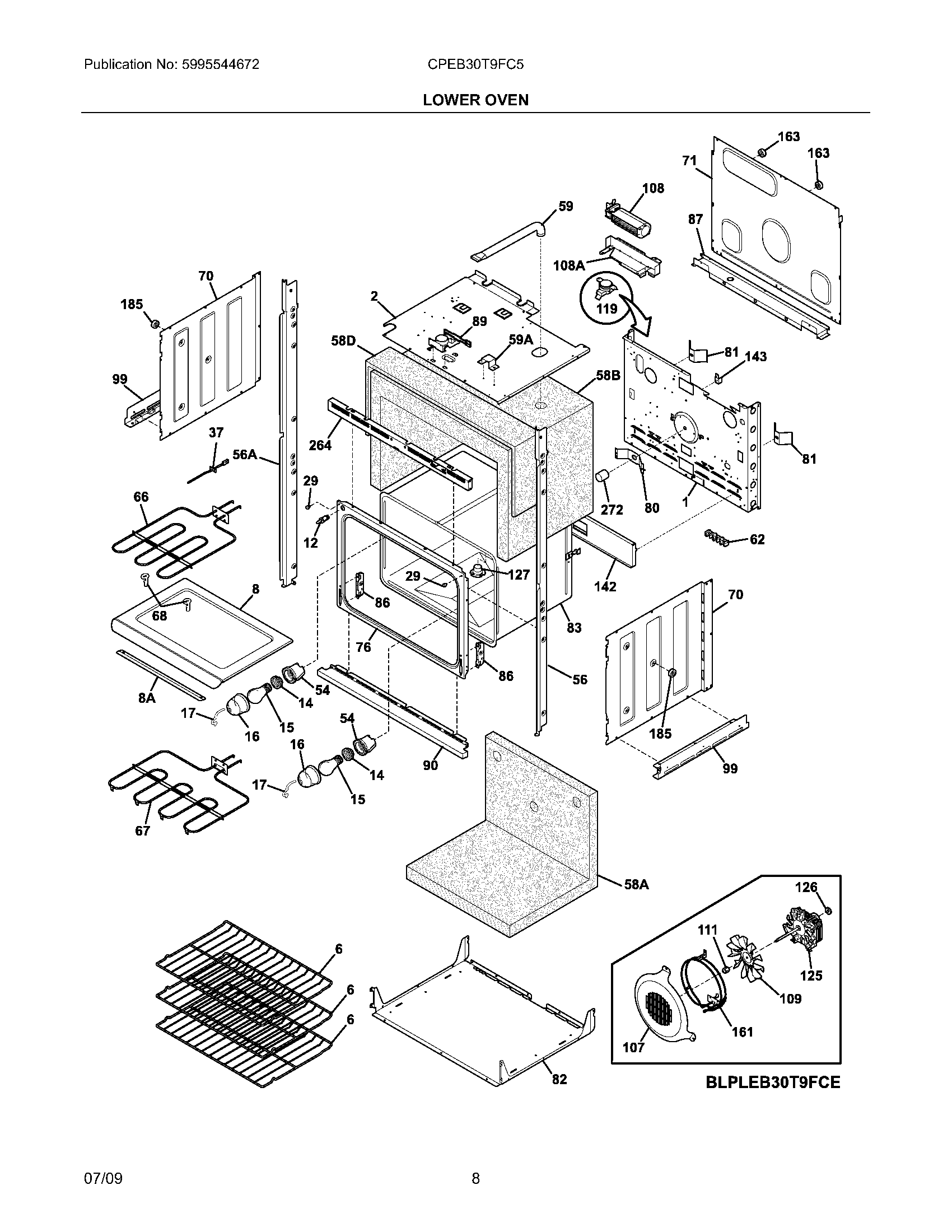

CPEB30T9FC5 07 – LOWER OVEN

CPEB30T9FC5 07 – LOWER OVEN

Written by

in

CPEB30T9FC5 07 – LOWER OVEN

Products

PositionProduct
NIWCI 5304470865
NI5304461333 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NIWCI 318340201
NIWCI 318402206
NIWCI 318532128
NI5304470882 Frigidaire Oven Screw
NIWCI 318199768
NIWCI 318199787
NI5303211311 Frigidaire Refrigerator Screw
NI5303323139 Frigidaire Oven Screw
NIWCI 318268099
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304436875 Frigidaire Oven Screw
NI5304480396 Frigidaire Screw
NI5303323277 Frigidaire Oven Screw
NI5303300265 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
1WCI 318259220
2WCI 318258902
6WCI 318345214
8AWCI 318318600
8WCI 318262001
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
54WCI 318222400
56AWCI 318903605
56318903676 Frigidaire Oven Trim
58DWCI 318372006
58BInsulation,oven wrapper ,back/bottom
58AWCI 318386100
59AWCI 318261600
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258707
83WCI 318261400
86318561100 Frigidaire Receptacle
87WCI 318260600
89318261229 Frigidaire Oven Motor
90WCI 318259803
99318256201 Frigidaire Oven Bracket
107WCI 318219405
108WCI 318251300
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
1255304467898 Frigidaire Oven Kit Assembly
126Washer,motor ,RH ,convection
127318317100 Frigidaire Adapter Assembly
142WCI 318123910
143318172904 Frigidaire Bracket
161318255504 Frigidaire Oven Element
163Spacer,(4)
185318531800 Frigidaire Oven Spacer
264WCI 318257801
272WCI 318249403
