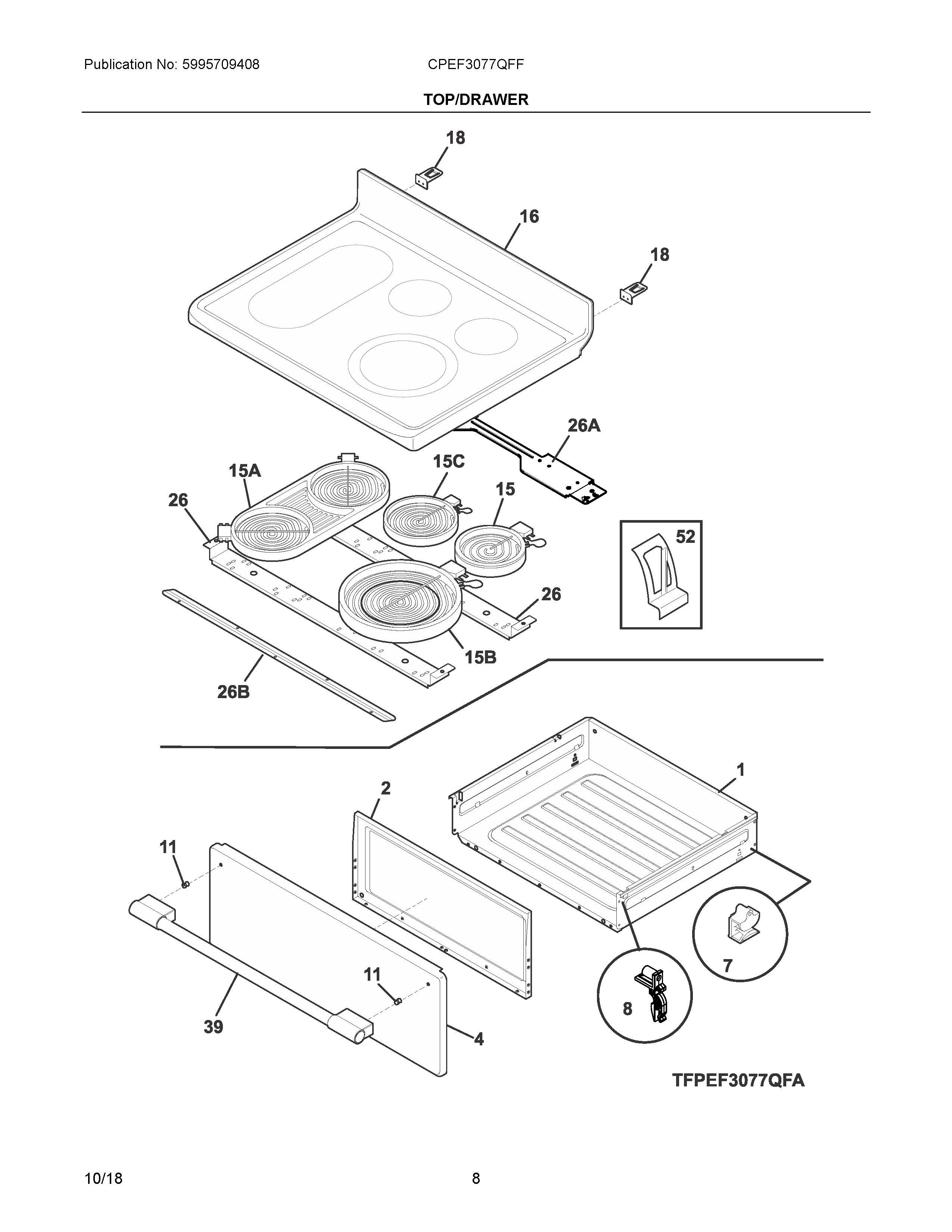

CPEF3077QFF 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	5304493655 Frigidaire Oven Harness
NI	316021132 Frigidaire Screw
NIA	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	5304414648 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304511907 Frigidaire Oven Panel
7	316407402 Frigidaire Range Drawer Glide
8	5304490938 Frigidaire Glide Assembly
11	5304494420 Frigidaire Oven Nut
15A	316280701 Frigidaire Range Double 6" Surface Element 4400W with Bridge
15C	ELEMENT,RADIANT,100W,WARMER
15B	316282101 Frigidaire Oven Element
15	318178110 Frigidaire Oven Range 6" Surface Element
16	807038642 Frigidaire Oven Maintop
18	316580800 Frigidaire Hinge Bracket
26	5304500986 Frigidaire Oven Channel
26A	316498200 Frigidaire Oven Bracket
26B	316607600 Frigidaire Bracket
39	5304494423 Frigidaire Refrigerator Handle
52	316461700 Frigidaire Oven Clip Assembly
