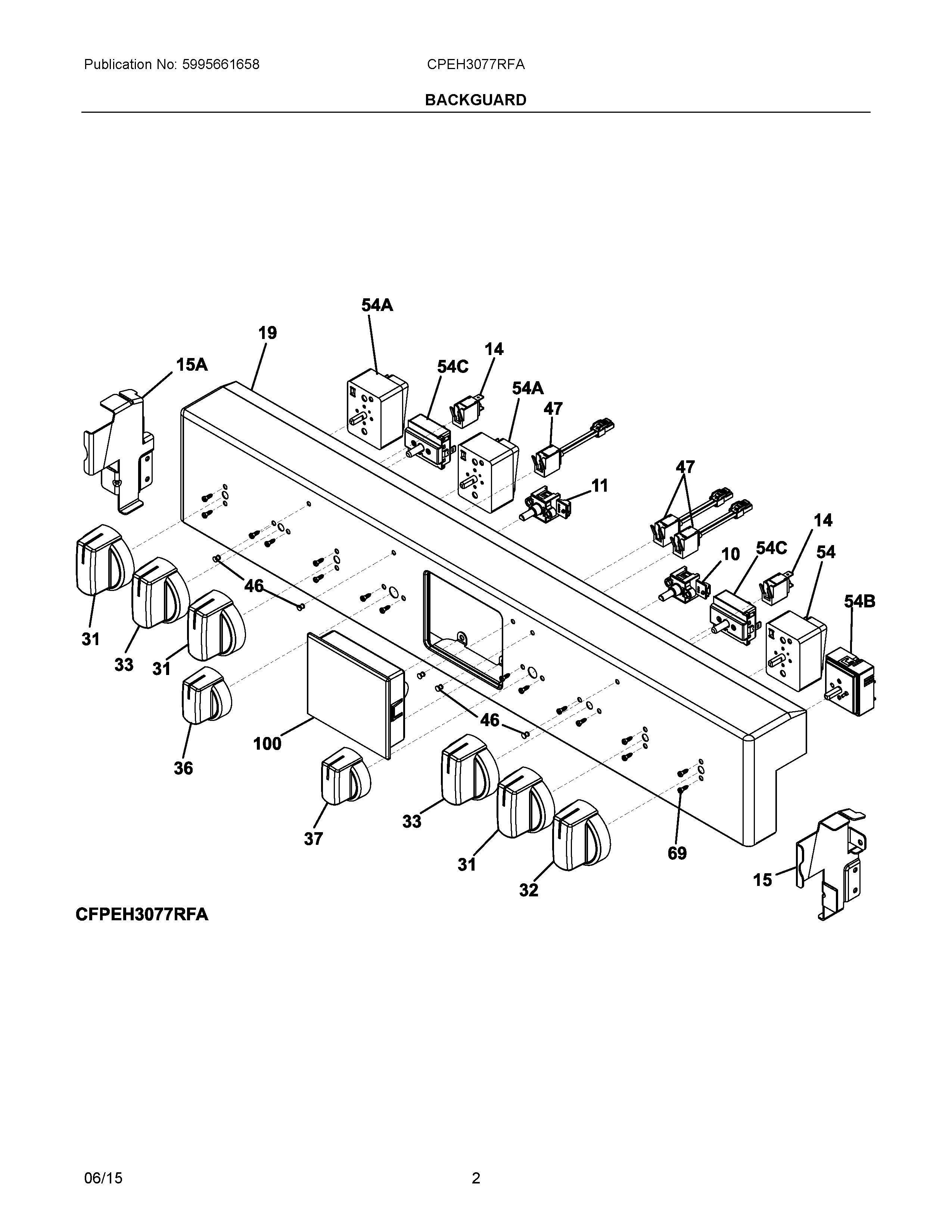

CPEH3077RFA 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 5304500175
NI	WCI 5304500179
NI	5304517680 Frigidaire Harness
NI	316021109 Frigidaire Oven Screw
10	WCI 808843105
11	5304493649 Frigidaire Oven Range Wall Potentiometer
14	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A	5304500133 Frigidaire Oven Bracket
15	WCI 5304500132
19	809103501 Frigidaire Oven Panel
31	5304502427 Frigidaire Oven Knob
32	5304502428 Frigidaire Oven Knob
33	5304502429 Frigidaire Oven Knob
36	809137901 Frigidaire Oven Knob
37	809137902 Frigidaire Oven Knob Assembly
46	316557300 Frigidaire Range Indicator Light Lens
47	316022508 Frigidaire Light Assembly
54A	316436001 Frigidaire Oven Range Infinite Burner Switch
54B	316238201 Frigidaire Oven Switch
54	316436000 Frigidaire Oven Range Surface Element Switch
54C	316471601 Frigidaire Switch-Infinite
69	5303288565 Frigidaire Screw
100	808751522 Frigidaire Control Assembly
