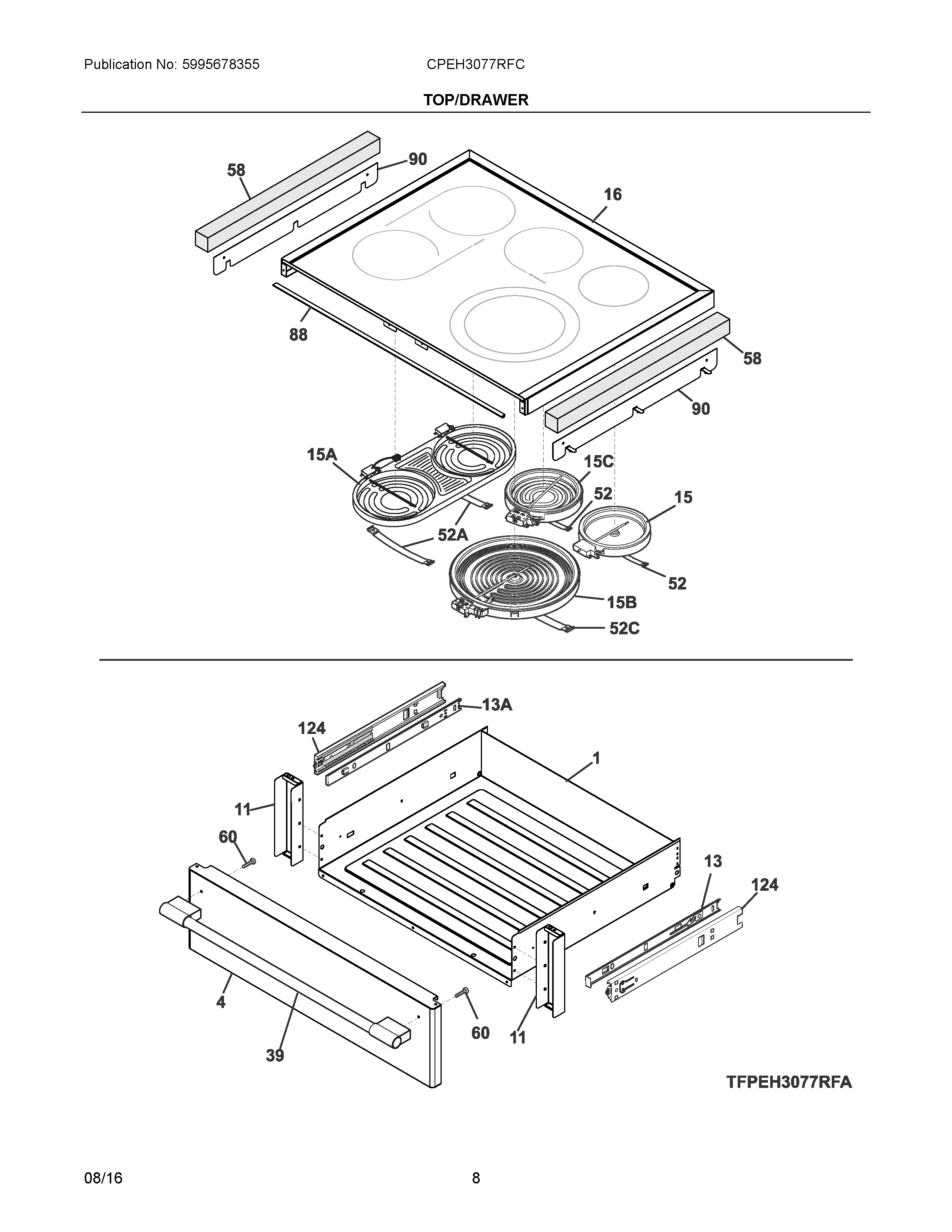

CPEH3077RFC 04 – TOP/DRAWER

CPEH3077RFC 04 – TOP/DRAWER

Written by

in

CPEH3077RFC 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA5304497192 Frigidaire Insulation
NI5304520784 Frigidaire Harness
NIA316008401 Frigidaire Washer P-1
NI318147430 Frigidaire Oven Bumper
NI5303288565 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
1WCI 809145604
45304514666 Frigidaire Oven Panel
11809089901 Frigidaire Oven Bracket
13A318259512 Frigidaire Oven Glide
13318259513 Frigidaire Oven Glide
15A807219901 Frigidaire Oven Element
15B316282101 Frigidaire Oven Element
15318178110 Frigidaire Oven Range 6" Surface Element
15CELEMENT,RADIANT,100W,WARMER
16WCI 5304500168
39808816703 Frigidaire Oven Handle
52C318122011 Frigidaire Oven Spring
52318122006 Frigidaire Small Element Mounting Spring
52A318122008 Frigidaire Oven Spring Assembly
605303310510 Frigidaire Oven Screw
885304500150 Frigidaire Oven Gasket
90WCI 5304501940
124WCI 318330600
