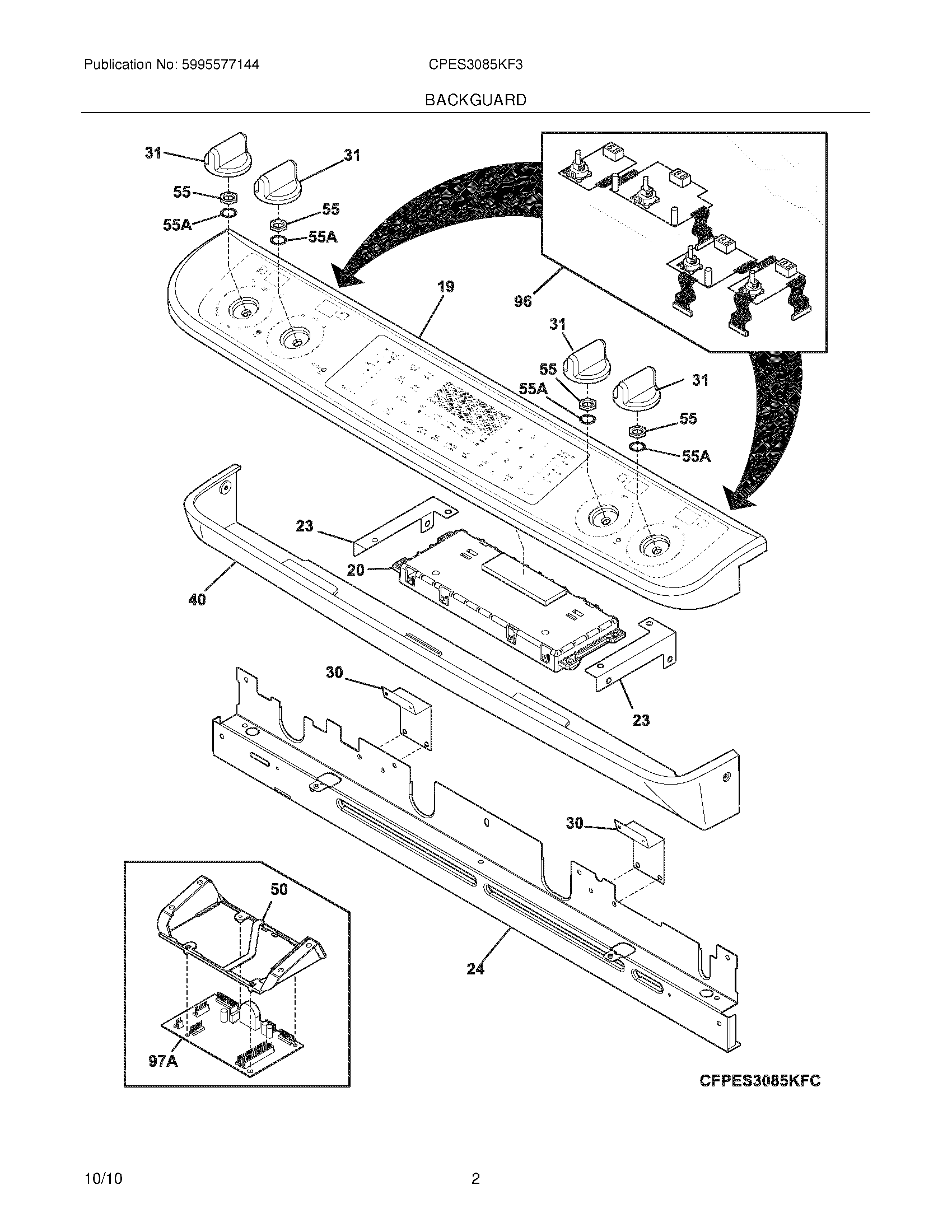

CPES3085KF3 03 – BACKGUARD

CPES3085KF3 03 – BACKGUARD

Written by

in

CPES3085KF3 03 – BACKGUARD

Products

PositionProduct
NI5304436875 Frigidaire Oven Screw
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304453707 Frigidaire Oven Screw
NIScrew,No.8-18 x 3/8 ,(10)
NIWCI 318578318
NIWCI 318402398
NIWCI 318224873
19318922144 Frigidaire Panel Assembly
20316560144 Frigidaire Controller
23WCI 318921300
24WCI 318913116
30318928502 Frigidaire Oven Bracket
31WCI 316564406
40WCI 318912907
50WCI 318917700
55316247700 Frigidaire Oven Nut
55A316247800 Frigidaire Oven Washer
96WCI 318411401
97A316442062 Frigidaire Oven Board
