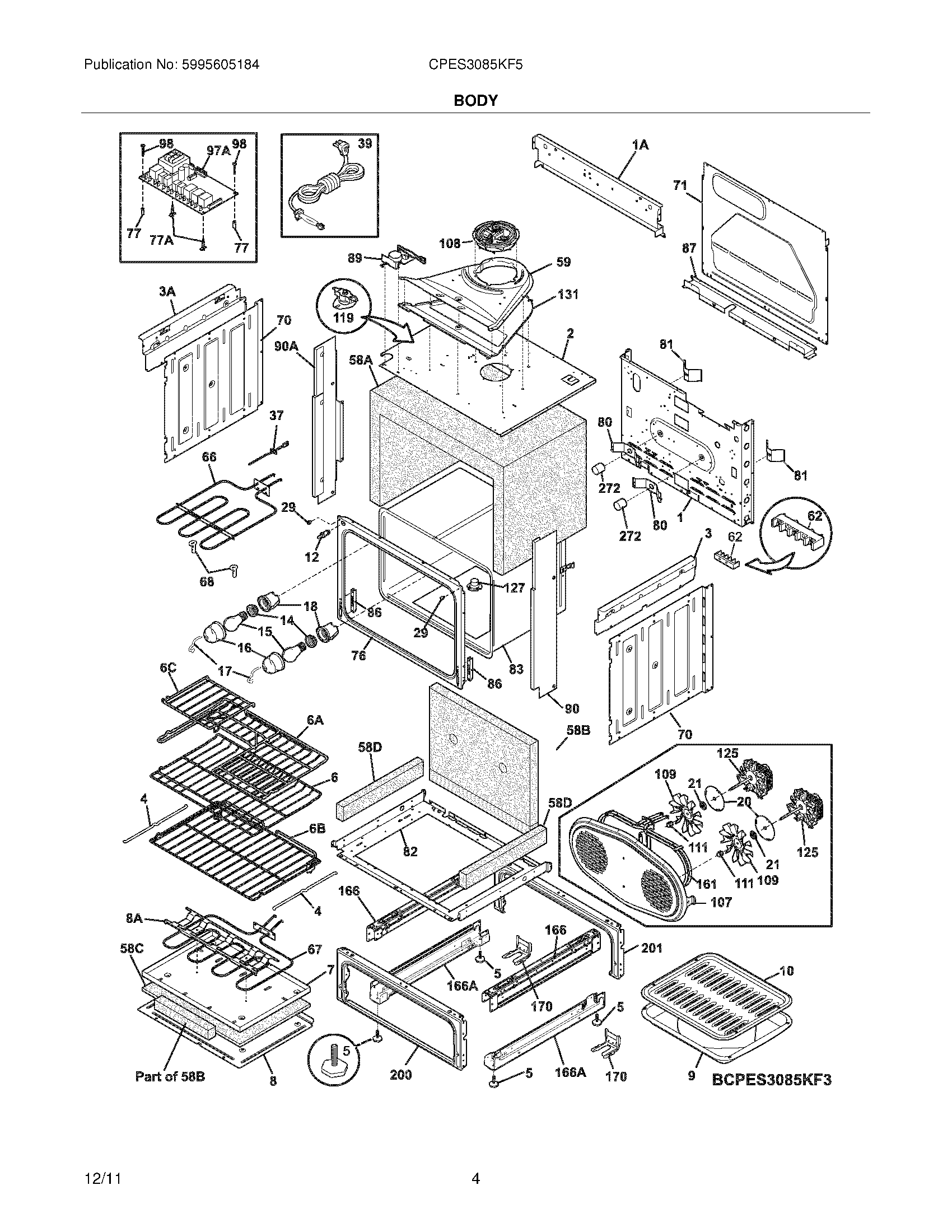

CPES3085KF5 05 – BODY

CPES3085KF5 05 – BODY

Written by

in

CPES3085KF5 05 – BODY

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	WCI 5304417153
NI	5304461333 Frigidaire Oven Screw
NI	318531701 Frigidaire Spacer
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303323129 Frigidaire Oven Screw
NI	SCREW-SHOULDER
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	5304415832 Frigidaire Oven Screw
NI	5303323139 Frigidaire Oven Screw
NI	WCI 318579001
NI	5304436875 Frigidaire Oven Screw
NI	WCI 5304440988
NI	Screw,No.8-18 x 3/8 ,(10)
NI	08002868 Frigidaire 0 Screw Assembly
NI	WCI 318582606
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	WCI 5304400192
1A	WCI 318225120
1	WCI 318259224
2	WCI 318570500
3	WCI 318225230
3A	WCI 318225231
4	WCI 318927600
5	318175503 Frigidaire Screw with Bolt
6A	WCI 318926803
6C	WCI 318929702
6	318922301 Frigidaire Oven Rack
6B	WCI 318921600
7	318297303 Frigidaire Oven Box
8	318359500 Frigidaire Oven Panel
8A	318313601 Frigidaire Oven Bracket
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	808136601 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
18	WCI 318222400
20	WCI 318389400
21	318389000 Frigidaire Oven Seal
29	316517600 Frigidaire Oven Spacer
37	SENSOR
39	WCI 318113111
58D	318372018 Frigidaire Insulation
58C	318294912 Frigidaire Insullation
58A	WCI 318386113
58B	WCI 318405900
59	WCI 318570600
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	WCI 318255808
67	318254916 Frigidaire Oven Range Bake Element
68	5304403015 Frigidaire Oven Support
70	WCI 318259105
71	WCI 318260007
76	WCI 318056292
77	Spacer,control
77A	316114100 Frigidaire Oven Spacer
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258770
83	WCI 318261452
86	318561100 Frigidaire Receptacle
87	WCI 318260625
89	318261229 Frigidaire Oven Motor
90A	5304511890 Frigidaire Oven Panel
90	5304511889 Frigidaire Oven Panel
97A	316442119 Frigidaire Oven Board
98	5303297477 Frigidaire Oven Screw
107	WCI 318550200
108	318575603 Frigidaire Range Cooling Fan Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
119	318578506 Frigidaire Oven High Limit Thermostat
125	5304463302 Frigidaire Convection Motor
127	WCI 318317105
131	WCI 318574800
161	WCI 318535300
166	5304511884 Frigidaire Oven Bracket
166	318298410 Frigidaire Oven Bracket
170	WCI 318335500
200	WCI 318298226
201	318298233 Frigidaire Oven Frame
272	WCI 318249409
