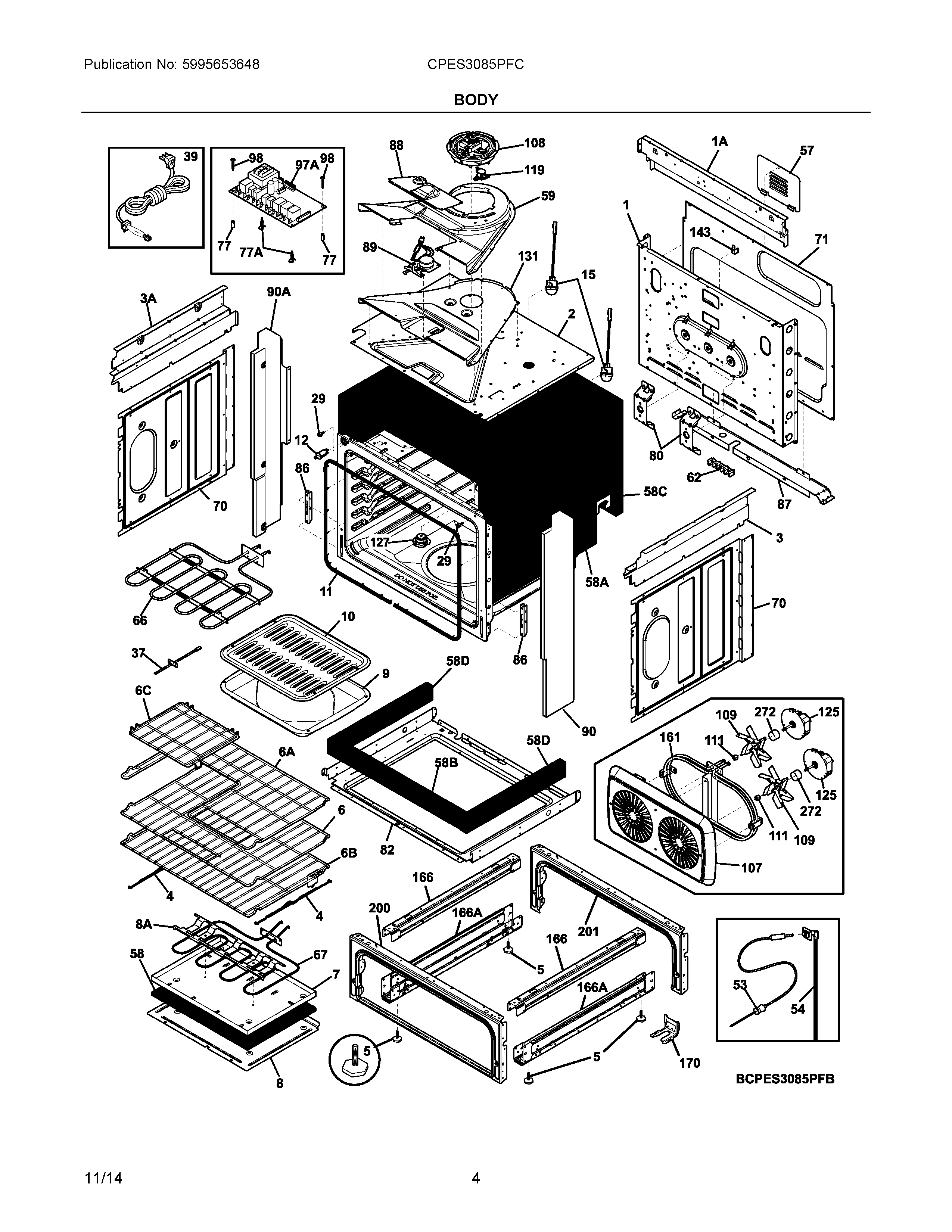

CPES3085PFC 03 – BODY

CPES3085PFC 03 – BODY

Written by

in

CPES3085PFC 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIC318264200 Frigidaire Oven Plate
NIA316418900 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI316303501 Frigidaire Assembly Harness
NIAWCI 318579001
NIA316001017 Frigidaire Screw
NIWCI 808195801
NIWCI 5304497887
NIB316205500 Frigidaire Oven Nut
NI316021109 Frigidaire Oven Screw
1A139004600 Frigidaire Oven Panel
1139017306 Frigidaire Oven Panel
2139028107 Frigidaire Shield
3WCI 318225230
3AWCI 318225231
4WCI 318927600
5Screw,leveling ,w/tee nut
6CRACK INSERT, HALF RACK
6ARACK, OVEN, HALF, W/HANDLE
6B139013101 Frigidaire Oven Rack
65304514983 Frigidaire Oven Rack
7318297303 Frigidaire Oven Box
8A318313601 Frigidaire Oven Bracket
8318359500 Frigidaire Oven Panel
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
39WCI 318113111
535304504202 Frigidaire Red Meat Temperature Probe
54139017201 Frigidaire Assembly Receptacle
57316283600 Frigidaire Oven Cover
58A139001700 Frigidaire Insulation
58BWCI 139020300
58D139020301 Frigidaire INSULATION
58318294912 Frigidaire Insullation
58CWCI 139020201
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304521880 Frigidaire Element
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
80139021101 Frigidaire Bracket Assembly
82139008201 Frigidaire Shield
86318561100 Frigidaire Receptacle
87WCI 318260636
885304506964 Frigidaire Oven Cover
895304528836 Frigidaire Motor
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
97A316442119 Frigidaire Oven Board
985303289910 Frigidaire Oven Screw
107COVER, DUAL FAN, CONVECTION
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
125139008500 Frigidaire Oven Motor
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
1615304522063 Frigidaire Element
166318298410 Frigidaire Oven Bracket
166AWCI 318298403
1705304486410 Frigidaire Oven Kit
200WCI 318298226
201318298233 Frigidaire Oven Frame
272139021700 Frigidaire Oven Tube
