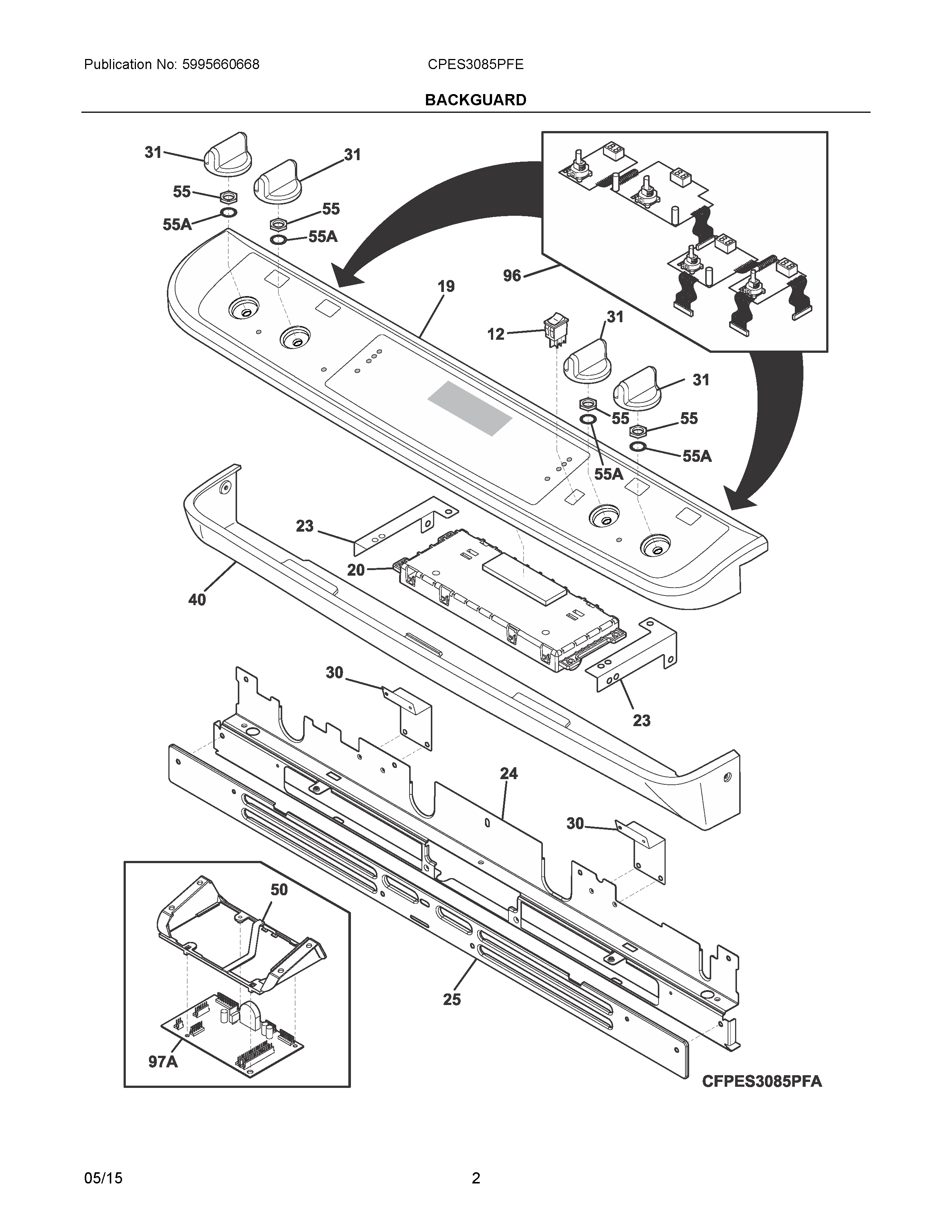

CPES3085PFE 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	807633201 Frigidaire Oven Harness
NIAA	WCI 5304497426
NI	WCI 139812500
NI	316021109 Frigidaire Oven Screw
12	5304527841 Frigidaire Oven Rocker Switch (Black)
19	139059412 Frigidaire Panel Assembly
20	5304503606 Frigidaire Controller
23	WCI 318921300
24	139074902 Frigidaire Vent Trim Frame
25	139075001 Frigidaire Oven Cover
30	318928502 Frigidaire Oven Bracket
31	WCI 316564406
40	WCI 318912907
50	WCI 318917700
55A	316247800 Frigidaire Oven Washer
55	316247700 Frigidaire Oven Nut
96	318411402 Frigidaire Control Assembly
97A	316442081 Frigidaire Oven Control Board
