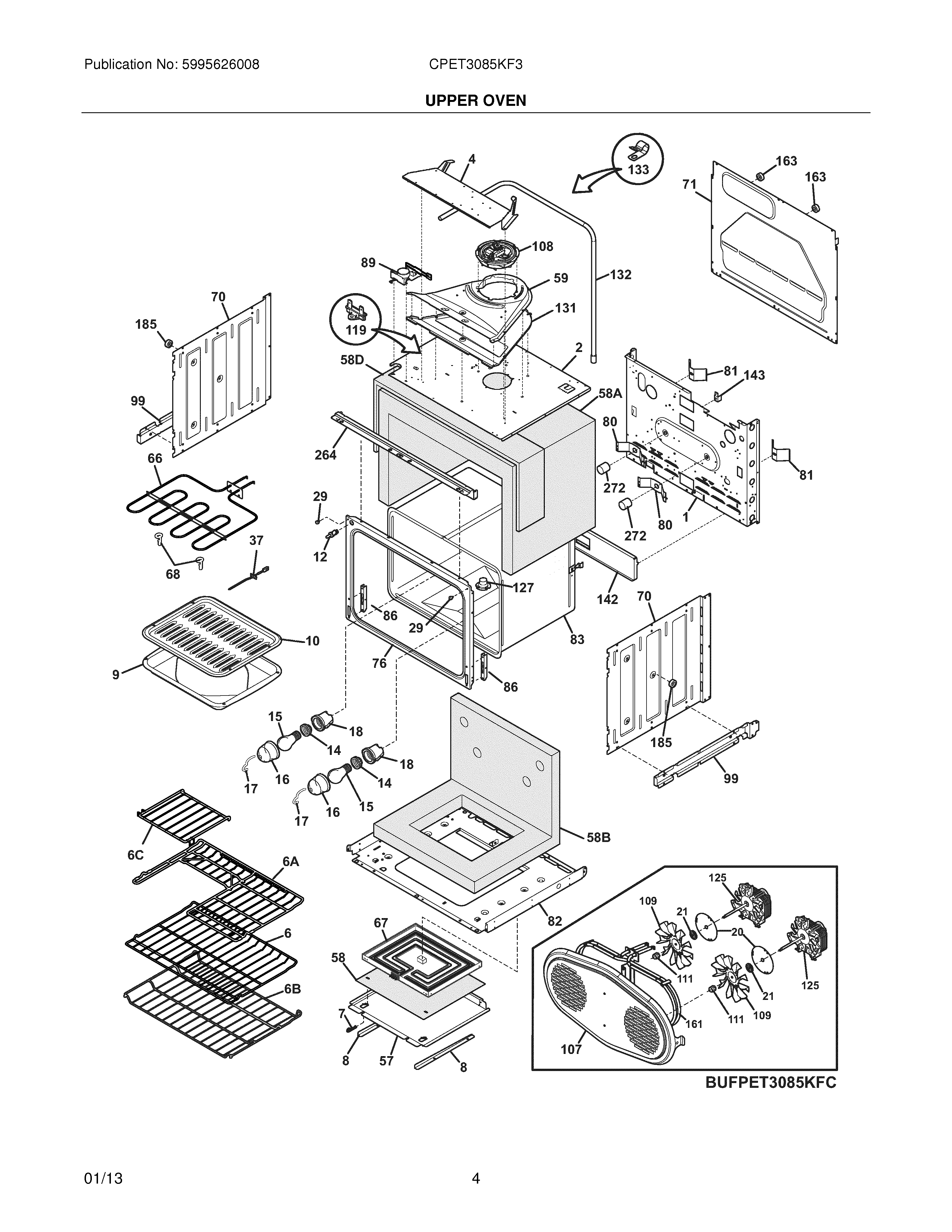

CPET3085KF3 05 – UPPER OVEN

CPET3085KF3 05 – UPPER OVEN

Written by

in

CPET3085KF3 05 – UPPER OVEN

Products

Position	Product
NI	WCI 318368501
NI	Spacer,pad
NI	WCI 5304417153
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	5304461333 Frigidaire Oven Screw
NI	WCI 318231870
NI	WCI 318572723
NI	5303323129 Frigidaire Oven Screw
NI	WCI 318579001
NI	5303323130 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303288565 Frigidaire Screw
NI	5304415832 Frigidaire Oven Screw
NI	216858001 Frigidaire Refrigerator Screw
NI	5303323277 Frigidaire Oven Screw
NI	WCI 318268099
NI	5303323139 Frigidaire Oven Screw
NI	316095800 Frigidaire Oven Clip
NI	5304436875 Frigidaire Oven Screw
1	WCI 318259224
2	WCI 318570500
4	WCI 318577700
6C	WCI 318929702
6B	WCI 318919810
6	318922301 Frigidaire Oven Rack
6A	WCI 318926803
7	318368300 Frigidaire PIN
8	BRACKET, ELEMENT, (2)
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	808136601 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
18	WCI 318222400
20	WCI 318389400
21	318389000 Frigidaire Oven Seal
29	316517600 Frigidaire Oven Spacer
37	SENSOR
57	WCI 318361610
58	WCI 318330501
58D	WCI 318372006
58A	WCI 318386113
58B	WCI 318926906
59	WCI 318570600
66	318255807 Frigidaire Oven Element
67	318601604 Frigidaire Oven Bake Element
68	5304403015 Frigidaire Oven Support
70	WCI 318259105
71	WCI 318260007
76	WCI 318056292
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258775
83	WCI 318261452
86	318561100 Frigidaire Receptacle
89	318261226 Frigidaire Oven Motor
99	WCI 318252804
107	WCI 318550200
108	MOTOR, COOLING FAN
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
119	5304506123 Frigidaire Wall Oven TCO Switch
125	5304463302 Frigidaire Convection Motor
127	WCI 318317105
131	WCI 318574801
132	WCI 318579102
133	WCI 318591500
142	WCI 318123910
143	318172904 Frigidaire Bracket
161	WCI 318535300
163	Spacer,(4)
185	318531800 Frigidaire Oven Spacer
264	WCI 318257706
272	WCI 318249412
