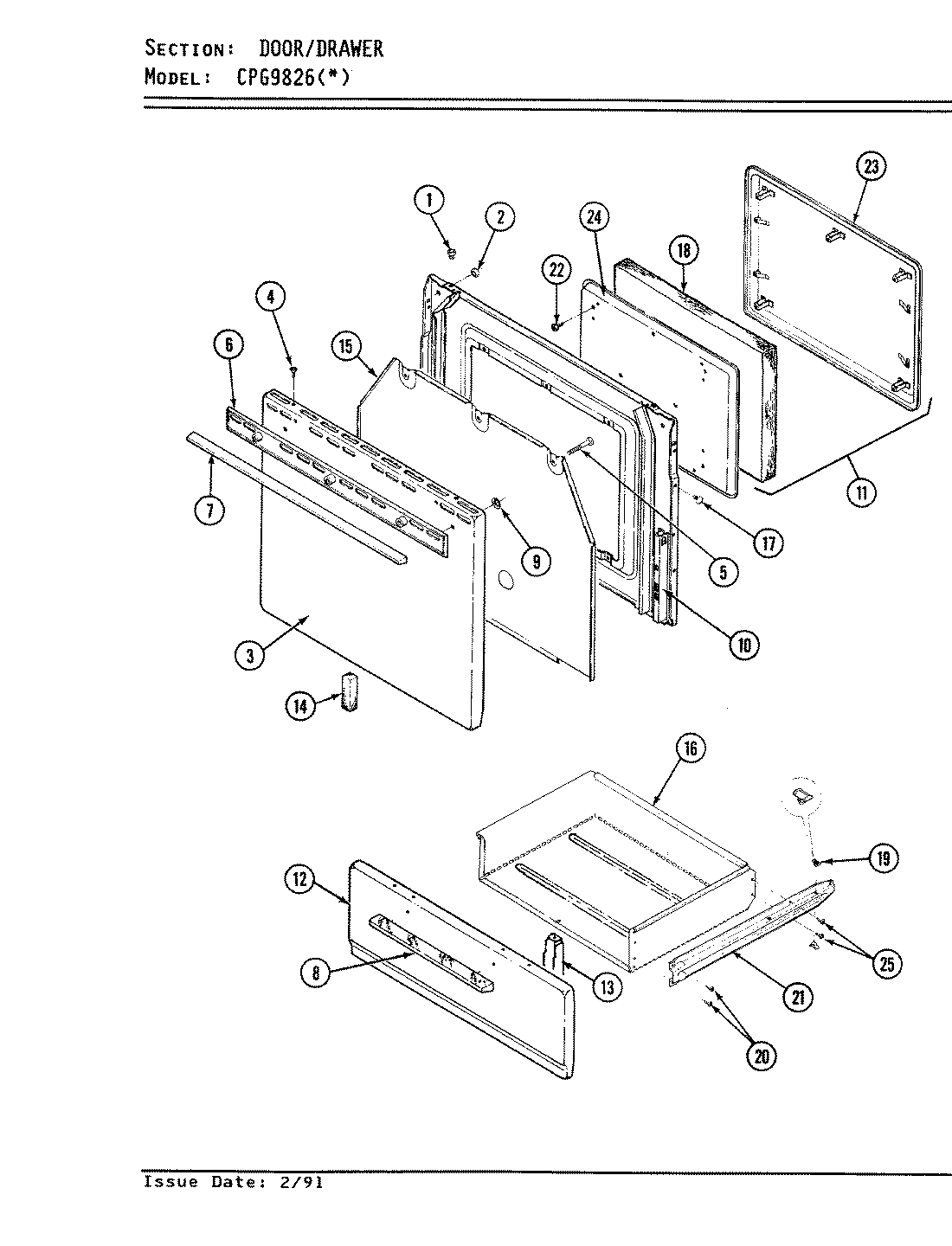

CPG9827A539A 04 – DOOR/DRAWER (CPG9826)

Products

Position	Product
1	WP7103P114-60 Whirlpool Snap Nut
2	MAY 8003P002-60
2	MAY 8003P009-60
4	MAY 7101P058-60
5	MAY 7101P089-60
6	MAY 7720P063-60
7	MAY 7701P030-60
8	MAY 7701P012-60
8	74002481 Whirlpool Screw
9	WP3195558 Whirlpool Nut
10	MAY 2402W173-19
10	MAY 8114P274-60
10	MAY 2402W153-15
10	MAY 2402W173-15
11	MAY 2410A028-15
11	MAY 2410A028-19
13	MAY 3801F115-51
14	MAY 7208P002-60
15	MAY 3601F095-51
16	MAY 3405F008-80
17	MAY 7107P017-60
18	MAY 7002P118-60
19	MAY 8016P009-60
19	MAY 8016P004-60
21	MAY 3406F020-80
21	MAY 3406F027-51
22	MAY 7101P061-60
23	MAY 2410W028-15
23	MAY 2410W028-19
24	MAY 2410F012-51
25	MAY 7101P272-60
