CPG9827W539A 03 – CONTROLS – Aparts

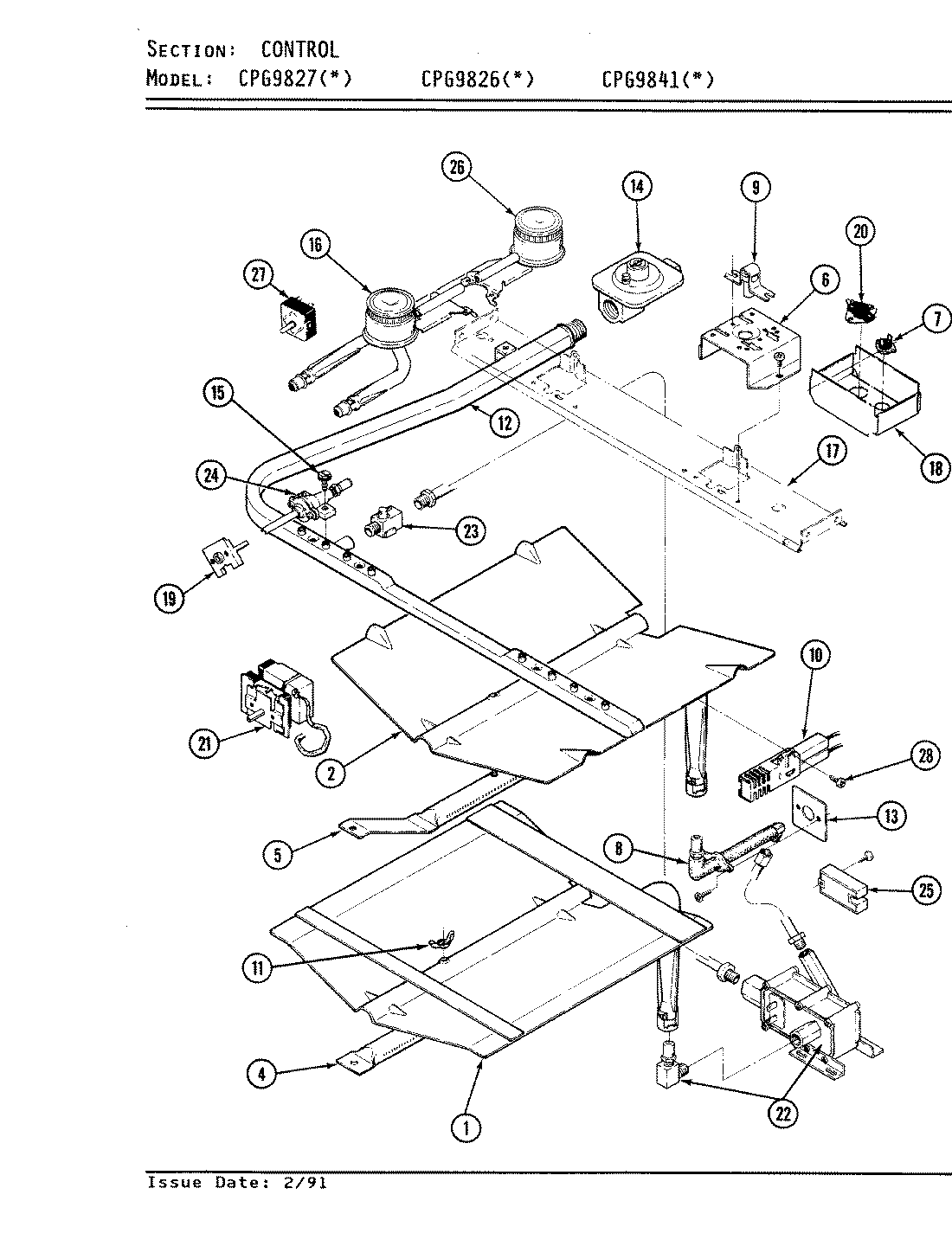

CPG9827W539A 03 – CONTROLS

Products

Position	Product
NI	MAY 7118P004-60
1	MAY 3601W184-15
2	MAY 3601F181-45
4	MAY 3403D027-45
4	MAY 3403A015-45
4	MAY 7505P101-60
5	MAY 3403D028-45
5	MAY 7505P100-60
5	MAY 3403A016-45
6	MAY 3807F201-45
7	MAY 7403P187-60
8	MAY 7507P028-60
9	MAY 7432P028-60
9	MAY 7432P029-60
10	MAY 7432P067-60
10	MAY 7432P066-60
11	NUT, WING
12	MAY 7513P044-60
12	MAY 7513P103-60
12	MAY 7513P134-60
13	MAY 3605F019-45
14	MAY 7510P004-60
15	MAY 7101P044-60
15	MAY 7101P043-60
15	MAY 7101P296-60
16	MAY 7505P169-60
16	MAY 7505P140-60
17	MAY 3807F347-51
18	MAY 3807F219-51
19	MAY 7403P259-60
19	WP7403P190-60 Whirlpool Switch
19	MAY 7403P107-60
19	MAY 7403P216-60
20	MAY 7403P091-60
21	MAY 3414F048-44
21	MAY 7515P020-60
21	MAY 7404P064-60
21	MAY 3414F057-44
22	MAY 7501P091-60
22	MAY 7501P034-60
22	MAY 7103P121-60
22	MAY 7501P095-60
23	MAY 7502P002-60
24	MAY 7502P109-60
24	MAY 7214P003-60
24	MAY 7502P132-60
24	MAY 7502P174-60
25	MAY 7431P006-60
26	MAY 7505P168-60
26	MAY 7505P141-60
27	MAY 7403P092-60
27	MAY 7101P279-60
28	SCREW (10-24X5/16-NI)
