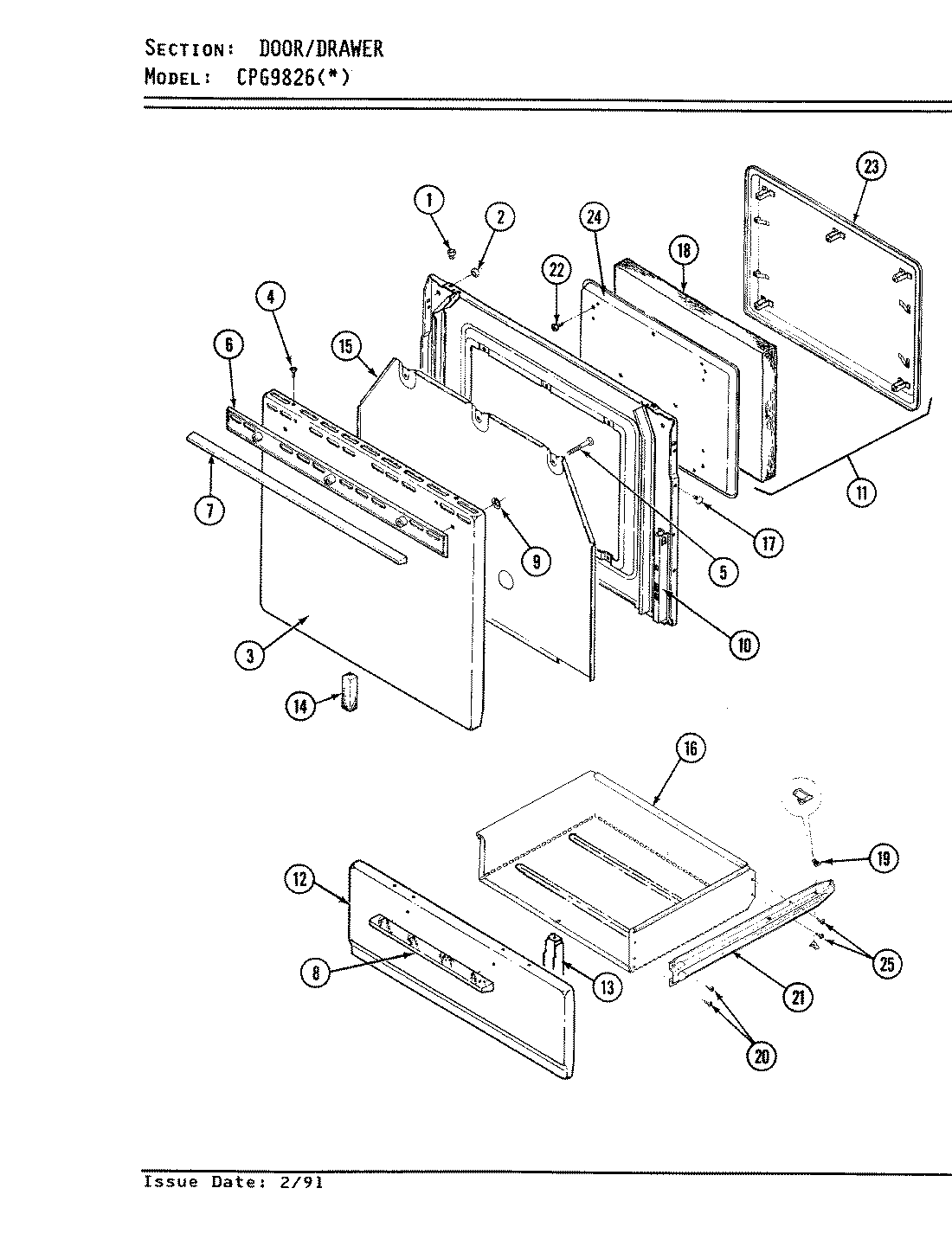

CPG9827W539A 04 – DOOR/DRAWER (CPG9826)
Written by
in
CPG9827W539A 04 – DOOR/DRAWER (CPG9826)
Products
Position
Product
1
WP7103P114-60 Whirlpool Snap Nut
2
MAY 8003P002-60
2
MAY 8003P009-60
4
MAY 7101P058-60
5
MAY 7101P089-60
6
MAY 7720P063-60
7
MAY 7701P030-60
8
MAY 7701P012-60
8
74002481 Whirlpool Screw
9
WP3195558 Whirlpool Nut
10
MAY 2402W173-19
10
MAY 8114P274-60
10
MAY 2402W153-15
10
MAY 2402W173-15
11
MAY 2410A028-15
11
MAY 2410A028-19
13
MAY 3801F115-51
14
MAY 7208P002-60
15
MAY 3601F095-51
16
MAY 3405F008-80
17
MAY 7107P017-60
18
MAY 7002P118-60
19
MAY 8016P009-60
19
MAY 8016P004-60
21
MAY 3406F020-80
21
MAY 3406F027-51
22
MAY 7101P061-60
23
MAY 2410W028-15
23
MAY 2410W028-19
24
MAY 2410F012-51
25
MAY 7101P272-60
←
